Kubota B2301 Workshop Manual

TRANSMISSION
B2301, B2601, WSM
2-S25

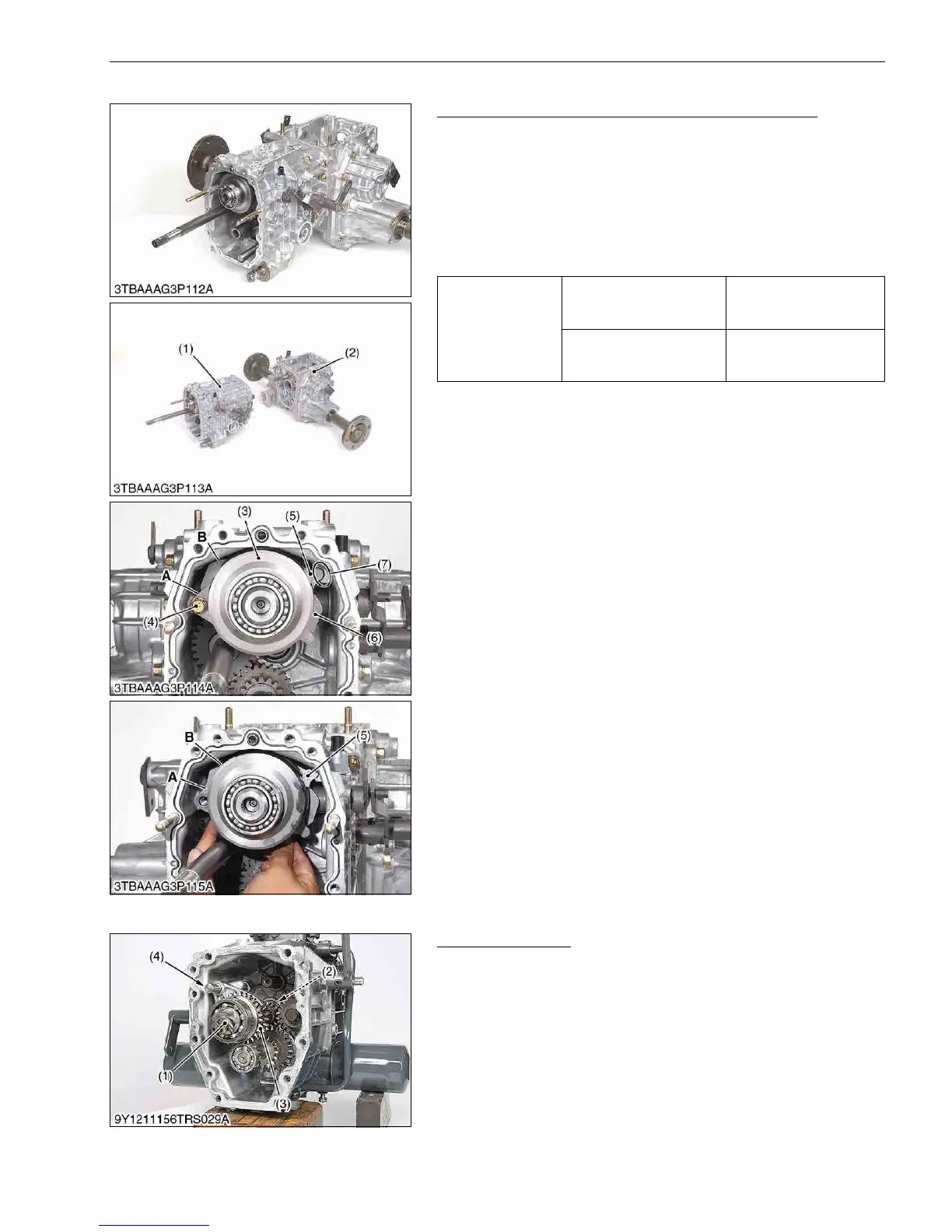

(4) PTO Clutch Case
Separating Transmission Case and PTO Clutch Case
1. Remove the transmission case mounting bolts.
2. Separate the transmission case (1) from the differential case
(2).
3. Remove the PTO brake plate 4 mounting bolt (4).
(When reassembling)
• Install the PTO brake plate 4 (5) to the transmission case
groove (7) securely as shown in the picture.
• Place the PTO brake plate 2 (6) between "A" and "B".
9Y1211156TRS0032US0
(5) Bevel Pinion Shaft
Bevel Pinion Shaft
1. Remove the bevel pinion shaft assembly (1) and range gear
shaft assembly (4) from the transmission case.
2. Remove the spacer (2).
(When reassembling)
• Install the spacer (2) to the transmission case.
• Install the bevel pinion shaft assembly (1) and range gear shaft
assembly (4).
9Y1211156TRS0033US0
Tightening torque
Transmission case
mounting bolt (M10) and
nut
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
Hydraulic cylinder
mounting bolt (M10) and
nut
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(1) Transmission Case
(2) Differential Case
(3) PTO Clutch Case
(4) PTO Brake Plate 4 Mounting Bolt
(5) PTO Brake Plate 4
(6) PTO Brake Plate 2
(7) Transmission Case Groove
A: Position
B: Position
(1) Bevel Pinion Shaft Assembly
(2) Spacer
(3) 14T-21T-29T Gear
(4) Range Gear Shaft Assembly
KiSC issued 11, 2014 A

Kubota B2301 Specifications

General

Engine Type	Diesel
Transmission Type	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Fuel Capacity	6.1 gallons
Hydraulic System Capacity	3.7 gallons
