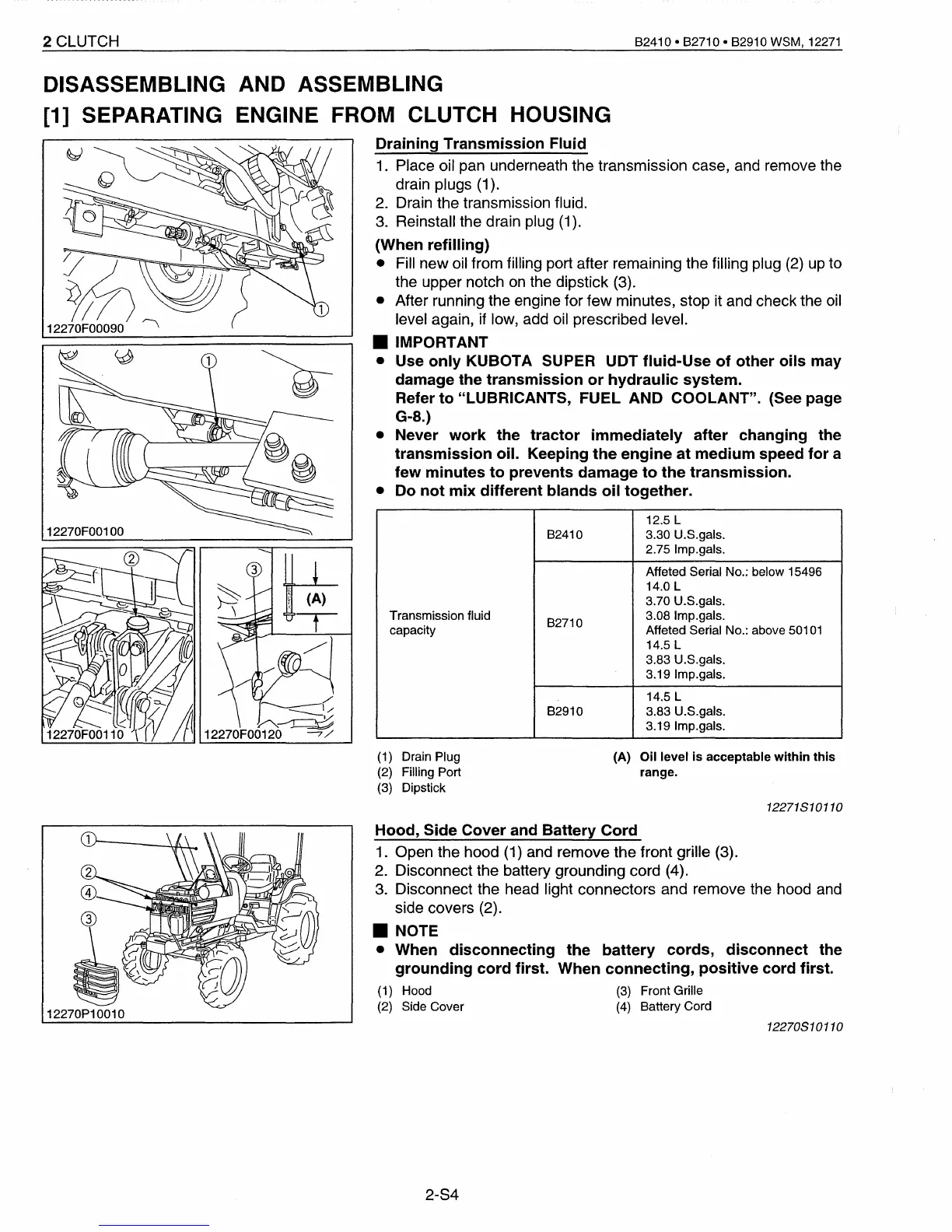

DISASSEMBLING AND ASSEMBLING
[1] SEPARATING ENGINE FROM CLUTCH HOUSING
Draining
Transmission
Fluid
1.
Place oil pan underneath the transmission case, and remove the
drain plugs (1).
2.
Drain the transmission fluid.
3.
Reinstall the drain plug (1).
(When
refilling)
• Fill new oil from filling port after remaining the filling plug
(2)
up
to
the upper notch
on
the dipstick (3).
• After running the engine for few minutes, stop it and check the oil
level again, if low, add oil prescribed level.
• IMPORTANT
• Use
only
KUBOTA SUPER UDT
fluid-Use
of
other
oils
may
damage
the
transmission
or
hydraulic
system.
Refer
to
"LUBRICANTS, FUEL AND COOLANT". (See page
G-8.)
• Never
work
the
tractor
immediately
after
changing
the
transmission
oil.
Keeping
the
engine
at
medium
speed
for
a
few
minutes
to
prevents
damage
to
the
transmission.
• Do
not
mix
different
blands
oil
together.
12.5 L
82410 3.30 U.S.gals.
2.75 Imp.gals.
Affeted Serial No.: below 15496
14.0 L
3.70 U.S.gals.
Transmission fluid
82710
3.08 Imp.gals.
capacity Affeted Serial No.: above
50101
14.5 L
3.83 U.S.gals.
3.19 Imp.gals.
14.5 L
82910 3.83 U.S.gals.
3.19Imp.gals.
(1) Drain Plug
(2) Filling Port
(3) Dipstick
(A) Oil level
is
acceptable within this
range.
12271810110
12270P10010
Hood,
Side
Cover
and
Battery
Cord
1. Open the hood
(1)
and remove the front grille (3).
2. Disconnect the battery grounding cord (4).
3.
Disconnect the head light connectors and remove the hood and
side covers (2).
• NOTE
• When
disconnecting
the
battery
cords,
disconnect
the
grounding
cord
first.
When
connecting,
positive
cord
first.
(1) Hood
(3)
Front Grille
(2) Side Cover
(4)
8attery Cord
12270810110
2-84
To Next Page
