4 REAR AXLE
B2410·
B2710·
B2910 WSM, 12271
12271840060
Rear axle case mounting
39 to 44 N·m
Tightening torque
4.0 to 4.5 kgf·m
screws
29 to 33 ft-Ibs
5
I
Distance A
I
Factory spec.
8mm
0.31
in.
12271F40030
(Reference)
I
Distance B Factory spec.
I
19mm
0.75 in.
(1
) Brake Rod
(6)
Bracket
(2)
Spring
(7)
Rear Axle Case
(3)
Lever Holding Plate
(8)
Bi-speed Turn Lever
Rod
(4)
Bi-speed Turn Cable
(9)
Spring
(5) Cable Support
A

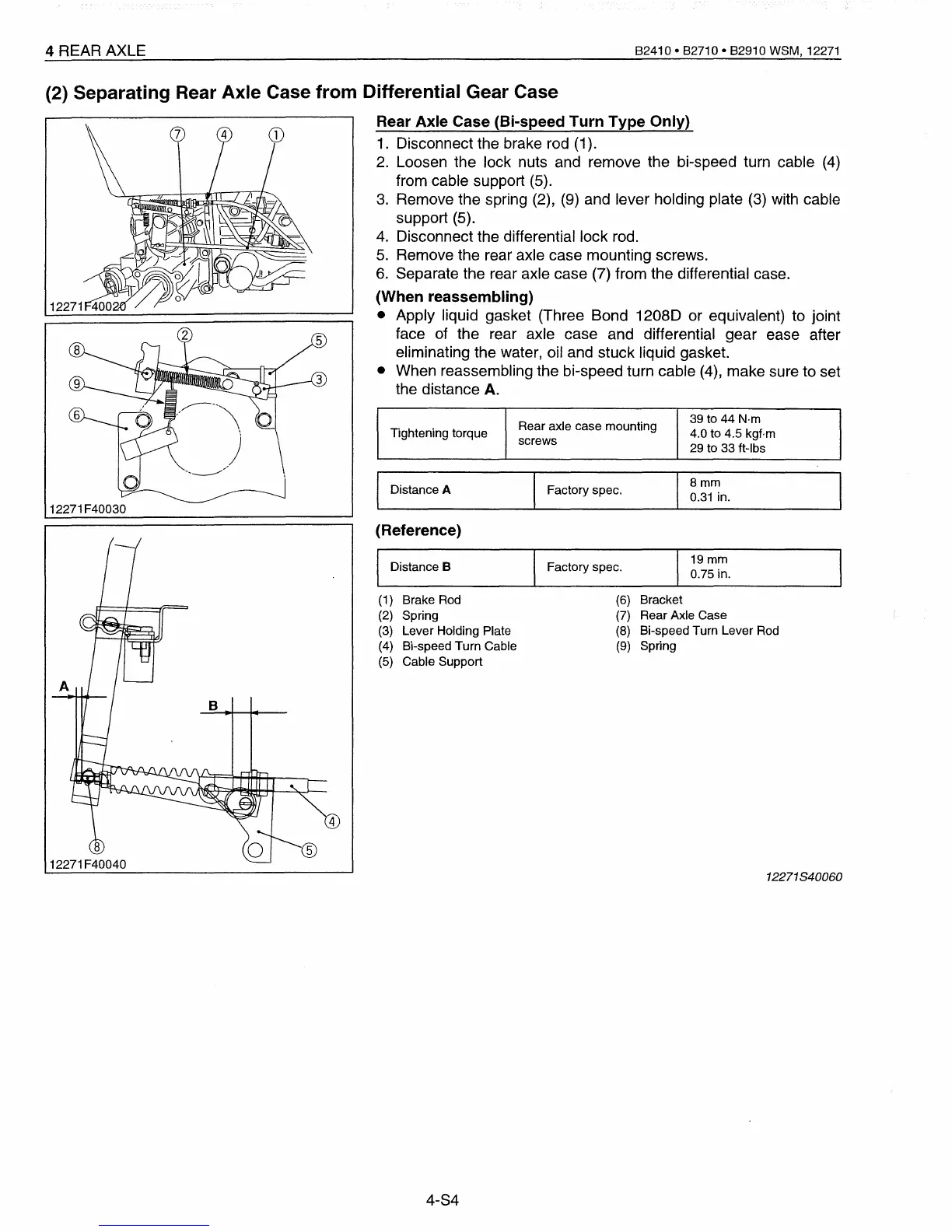

(2) Separating Rear Axle Case from Differential Gear Case
Rear Axle Case (Bi-speed Turn Type Only)
1.
Disconnect the brake rod (1).
2.
Loosen the lock nuts and remove the bi-speed turn cable
(4)
from cable support (5).
3.
Remove the spring (2), (9) and lever holding plate (3) with cable
support (5).
4.
Disconnect the differential lock rod.
5.
Remove the rear axle case mounting screws.
6.
Separate the rear axle case (7) from the differential case.
(When reassembling)
• Apply liquid gasket (Three Bond
12080
or equivalent) to joint
face of the rear axle case and differential gear ease after
eliminating the water, oil and stuck liquid gasket.
• When reassembling the bi-speed turn cable (4), make sure to set
the distance A.
4-84
To Next Page
