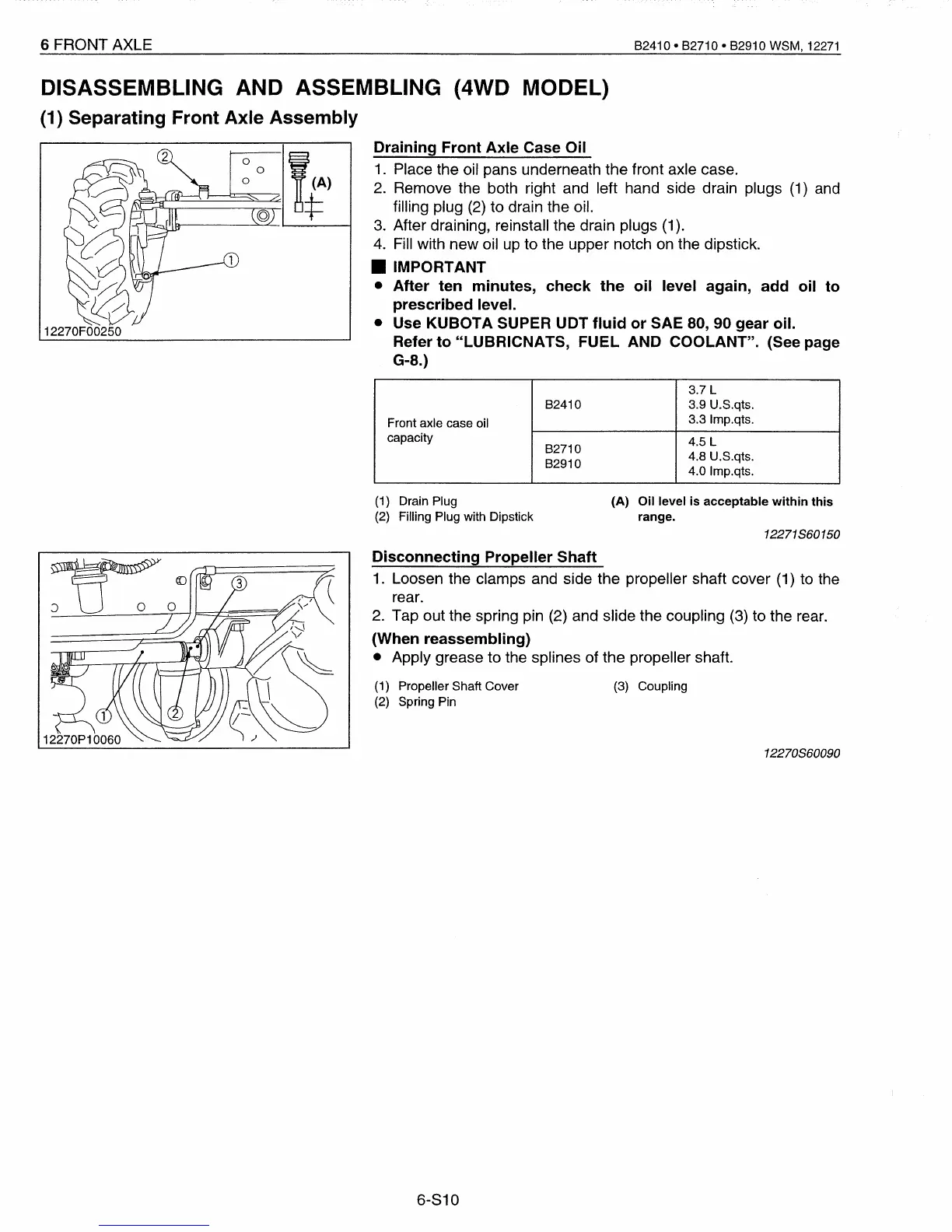

6 FRONT AXLE
DISASSEMBLING AND ASSEMBLING (4WD MODEL)
(1) Separating Front Axle
Assembly
82410· 82710·
82910 WSM,
12271
Draining
Front
Axle
Case
Oil
1.
Place the oil pans underneath the front axle case.
2.
Remove the both right and left hand side drain plugs
(1)
and
filling plug (2) to drain the oil.
3.
After draining, reinstall the drain plugs (1).
4.
Fill with new oil up to the upper notch on the dipstick.
• IMPORTANT
•
After
ten
minutes,
check
the
oil
level again,
add
oil
to
prescribed
level.
• Use
KUBOTA
SUPER UDT
fluid
or
SAE 80, 90
gear
oil.
Refer
to
"LUBRICNATS, FUEL AND
COOLANT".
(See page
G-8.)
3.7 L
82410 3.9 U.S.qts.
Front axle case oil
3.3 Imp.qts.
capacity
82710
4.5 L
82910
4.8 U.S.qts.
4.0 Imp.qts.
(1)
Drain Plug
(2)
Filling Plug with Dipstick
(A) Oil level is acceptable
within
this
range.
12271S60150
Disconnecting
Propeller
Shaft
1.
Loosen the clamps and side the propeller shaft cover (1) to the
rear.
2. Tap out the spring pin (2) and slide the coupling (3) to the rear.
(When
reassembling)
• Apply grease to the splines of the propeller shaft.
~
=-
(0
J 0 0
(1)
Propeller Shaft Cover
(2)
Spring Pin
6-810
(3) Coupling
12270S60090
To Next Page
