B2410 • B2710 •
B2910
WSM,
12271
\10
~
12270P60100
12270P60110
12270F60020
6 FRONT AXLE

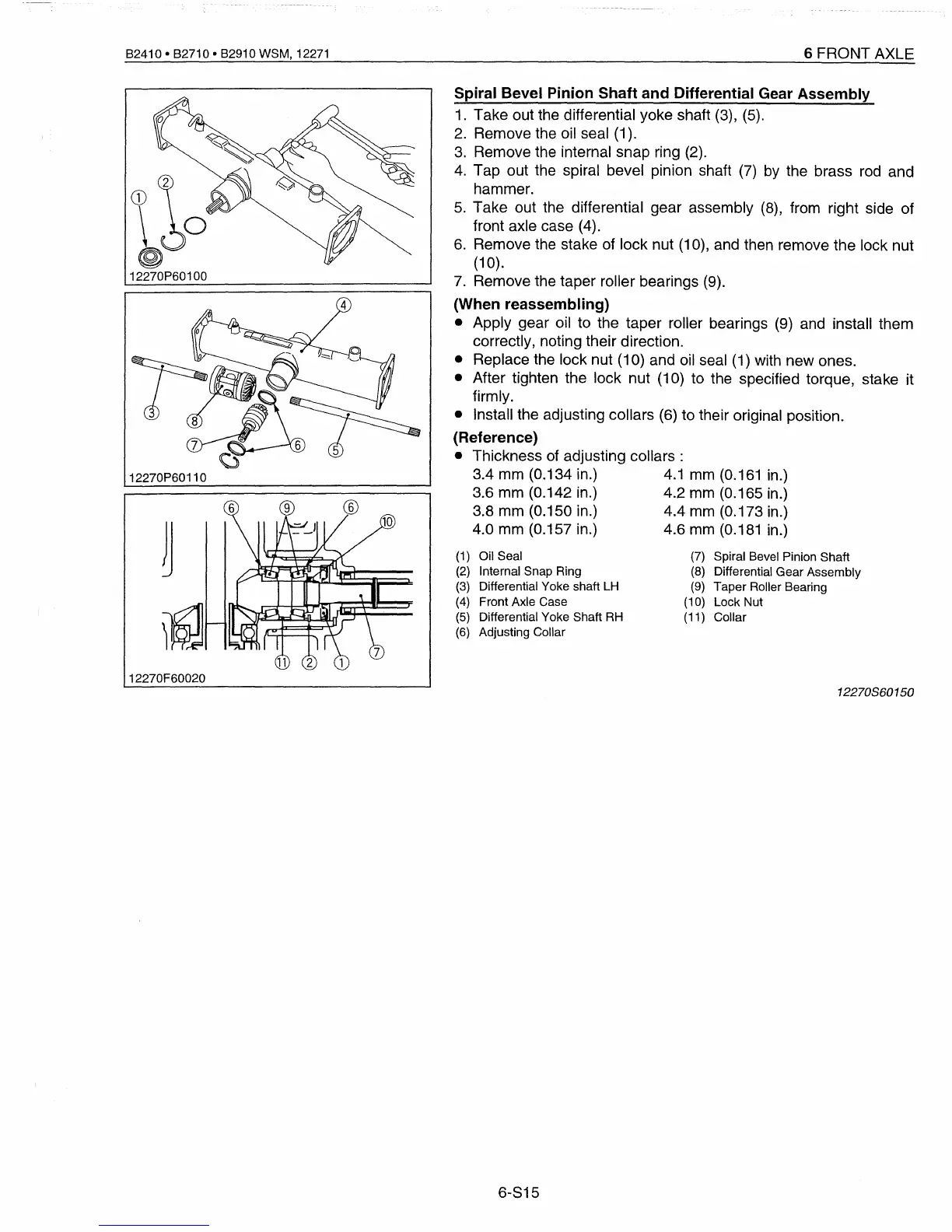

Spiral Bevel Pinion Shaft and Differential Gear Assembly
1.
Take out the differential yoke shaft
(3),
(5).
2.
Remove the oil seal (1).
3.
Remove the internal snap ring
(2).
4.
Tap out the spiral bevel pinion shaft
(7)
by
the brass
rod
and
hammer.
5.
Take out the differential gear assembly
(8),
from right side of
front axle case (4).
6.
Remove the stake
of
lock nut (10), and then remove the lock nut
(10).
7.
Remove the taper roller bearings
(9).
(When reassembling)
• Apply gear oil to the taper roller bearings
(9)
and
install them
correctly, noting their direction.
• Replace the lock nut (10) and oil seal (1) with new ones.
• After tighten the lock nut (10) to the specified torque, stake it
firmly.
• Install the adjusting collars
(6)
to their original position.
(Reference)
• Thickness
of
adjusting collars:
3.4
mm
(0.134 in.) 4.1
mm
(0.161 in.)
3.6 mm (0.142 in.)
4.2
mm
(0.165 in.)
3.8
mm
(0.150 in.)
4.4
mm
(0.173 in.)
4.0
mm
(0.157 in.)
4.6
mm
(0.181 in.)
(1)
Oil Seal
(7)
Spiral Bevel Pinion Shaft
(2)
Internal Snap Ring
(8)
Differential Gear Assembly
(3)
Differential Yoke shaft
LH
(9)
Taper Roller Bearing
(4)
Front Axle Case
(10)
Lock Nut
(5)
Differential Yoke Shaft
RH
(11)
Collar
(6)
Adjusting Collar
12270560150
6-815
