G-34
82410· 82710· 82910 W8M, 12271

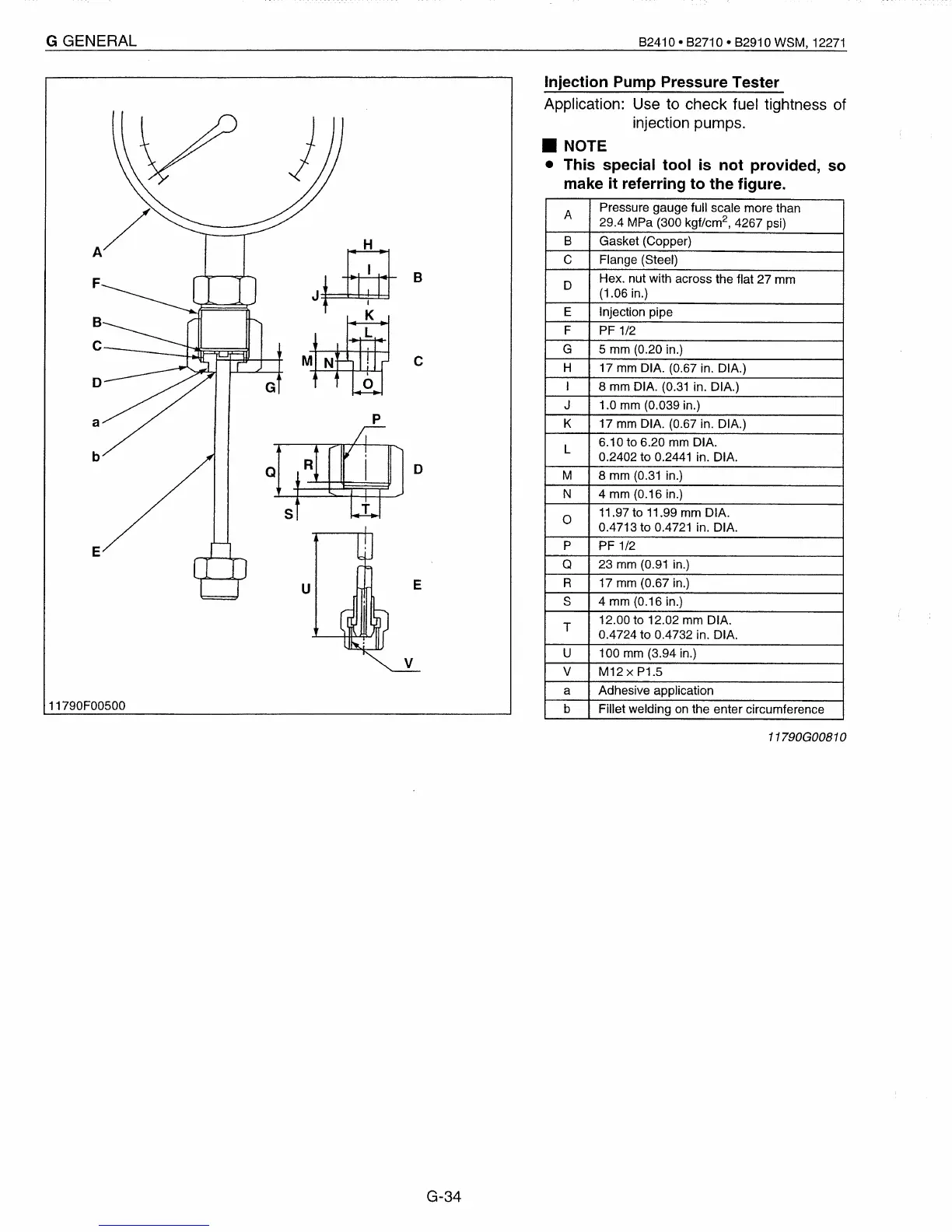

Injection Pump Pressure Tester
Application: Use to check fuel tightness of
injection pumps.
• NOTE
• This special tool is not provided, so
make it referring to the figure.
A
Pressure gauge full scale more than
29.4 MPa (300 kgf/cm
2
,
4267 psi)
8 Gasket (Copper)
C Flange (8teel)
D
Hex. nut with across the flat
27 mm
(1.06 in.)
E
Injection pipe
F
PF 1/2
G 5 mm (0.20 in.)
H
17 mm DIA. (0.67 in. DIA.)
I
8 mm DIA. (0.31 in. DIA.)
J 1.0 mm (0.039 in.)
K
17 mm DIA. (0.67 in. OIA.)
L
6.10 to 6.20 mm OIA.
0.2402 to 0.2441 in. OIA.
M
8 mm (0.31 in.)
N 4 mm (0.16 in.)
0
11.97 to 11.99 mm OIA.
0.4713 to 0.4721 in. OIA.
P
PF 1/2
Q
23 mm (0.91 in.)
R 17 mm (0.67 in.)
8 4 mm (0.16 in.)
T
12.00 to 12.02 mm OIA.
0.4724
to 0.4732 in. OIA.
U 100 mm (3.94 in.)
V M12xP1.5
a Adhesive application
b Fillet welding on the enter circumference
11790G00810
