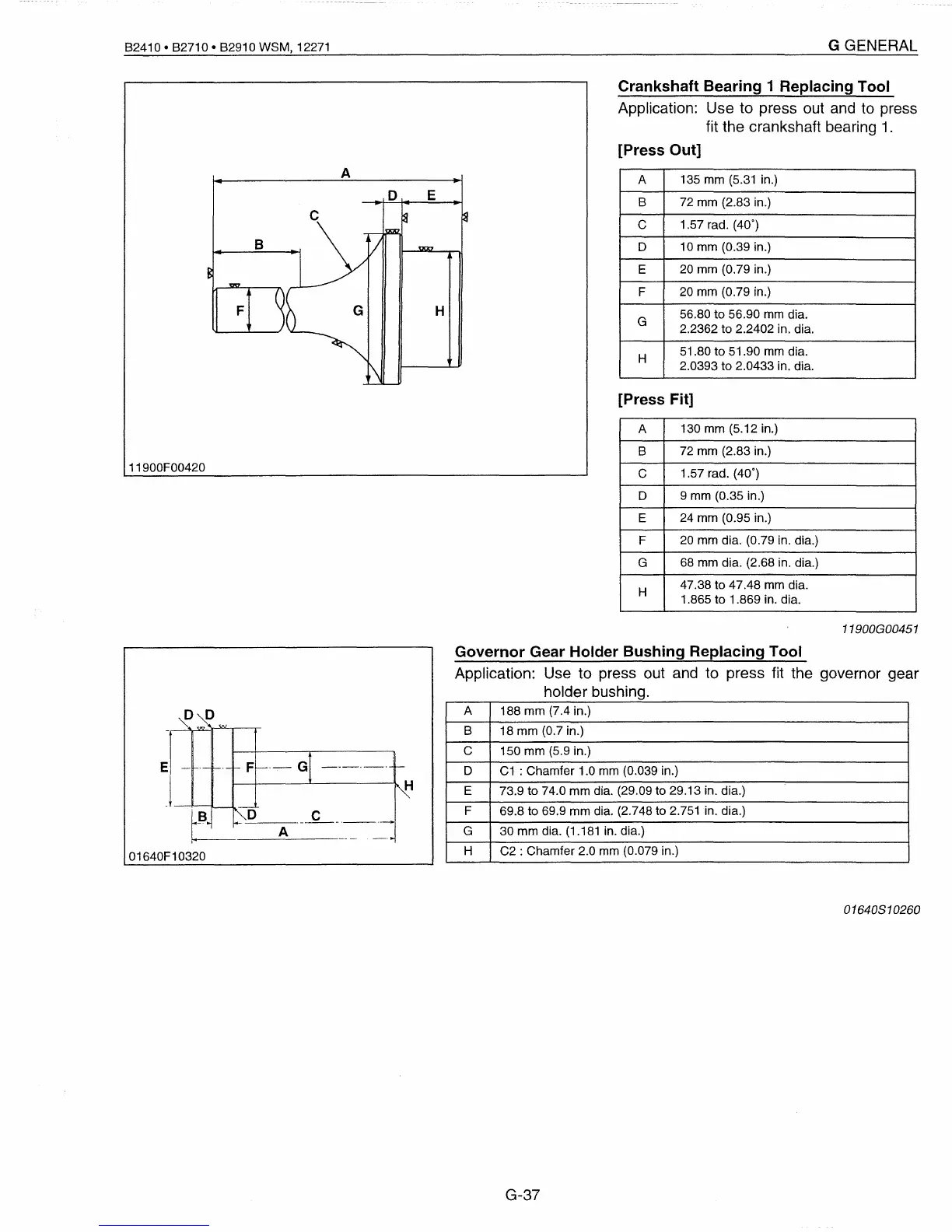

Crankshaft Bearing 1 Replacing Tool
Application: Use to press out
and
to press
fit the crankshaft bearing
1.
[Press Out]
A
135 mm (5.31 in.)
B 72 mm (2.83 in.)
C
1.57 rad. (40')
D
10 mm (0.39 in.)
E
20 mm (0.79 in.)
F
20 mm (0.79 in.)
G
56.80
to
56.90 mm dia.
2.2362 to 2.2402 in. dia.
H
51.80
to
51.90 mm dia.
2.0393
to
2.0433 in. dia.
[Press Fit]
A
130 mm (5.12 in.)
B
72 mm (2.83 in.)
C
1.57 rad. (40')
D
9 mm (0.35 in.)
E
24 mm (0.95 in.)
F
20 mm dia. (0.79 in. dia.)
G
68 mm dia. (2.68 in. dia.)
H
47.38
to
47.48 mm dia.
1.865
to
1.869 in. dia.
11900G00451
F
.-.
G
---.-.
~
0 A
._-~-~_~
01640F10320
Governor Gear Holder Bushing Replacing Tool
Application: Use to press out and to press fit the governor gear
holder bushing.
A
188
mm
(7.4 in.)
B 18
mm
(0.7 in.)
C 150
mm
(5.9 in.)
D
C1
: Chamfer 1.0 mm (0.039 in.)
E 73.9
to
74.0
mm
dia. (29.09 to 29.13 in. dia.)
F
69.8 to 69.9
mm
dia. (2.748 to 2.751 in. dia.)
G 30
mm
dia. (1.181 in. dia.)
H C2 : Chamfer 2.0 mm (0.079 in.)
01640810260
G-37
