82410·
82710 • 82910 WSM,
12271
®
@0®®i
jjiJjOfd
00000F00480

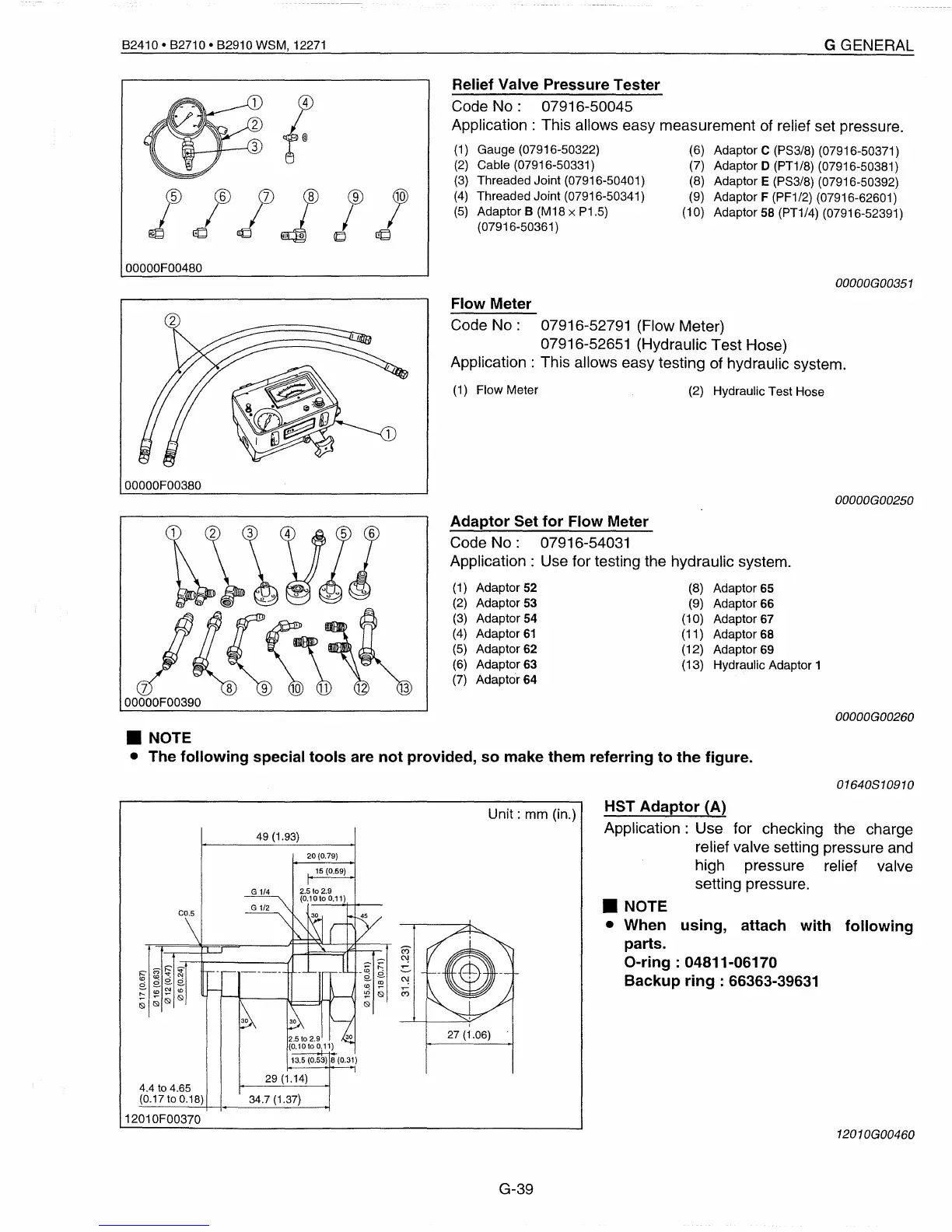

G GENERAL
Relief Valve Pressure Tester
Code No : 07916-50045
Application: This allows easy measurement of relief set pressure.
(1)
Gauge (07916-50322) (6) Adaptor C (PS3/8) (07916-50371)
(2)
Cable (07916-50331) (7) Adaptor 0 (PT1/8) (07916-50381)
(3)
Threaded Joint (07916-50401) (8) Adaptor E (PS3/8) (07916-50392)
(4)
Threaded Joint (07916-50341) (9) Adaptor F (PF1/2) (07916-62601)
(5)
Adaptor B (M18 x P1.5) (10) Adaptor
58
(PT1/4) (07916-52391)
(07916-50361 )
00000G00351
Flow Meter
Code No : 07916-52791 (Flow Meter)
07916-52651 (Hydraulic Test Hose)
Application: This allows easy testing of hydraulic system.
Adaptor Set for Flow Meter
Code No : 07916-54031
Application: Use for testing the hydraulic system.
00000F00380
~\\VIJ
!(\\\,
00000F00390
(1)
Flow Meter
(1)
Adaptor
52
(2)
Adaptor
53
(3)
Adaptor 54
(4)
Adaptor
61
(5)
Adaptor
62
(6)
Adaptor
63
(7)
Adaptor 64
(2) Hydraulic Test Hose
(8) Adaptor 65
(9) Adaptor 66
(10) Adaptor 67
(11) Adaptor 68
(12) Adaptor 69
(13) Hydraulic Adaptor 1
00000G00250
00000G00260
• NOTE
• The following special tools are not provided, so make them referring to the figure.
01640810910
CO.5
4.4
to
4.65
(0.17
to
0.18)
12010F00370
49
(1.93)
20
(0.79)
15 (0.59)
G 1/4
29(1.14)
34.7 (1.37)
Unit:
mm (in.)
27 (1.06)
G-39
HST Adaptor (A)
Application : Use for checking the charge
relief valve setting pressure and
high pressure relief valve
setting pressure.
• NOTE
• When using, attach with following
parts.
a-ring:
04811-06170
Backup
ring:
66363-39631
12010G00460
