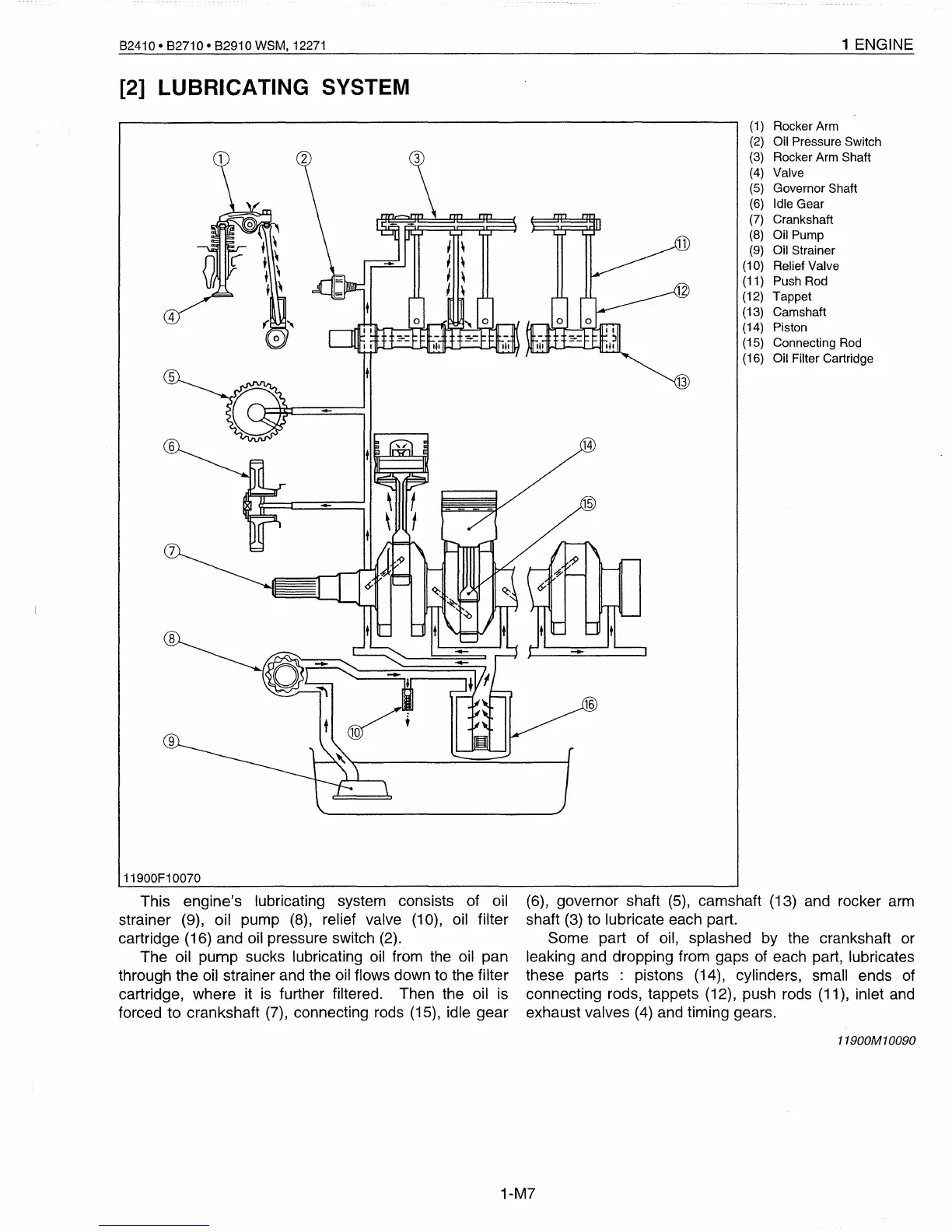

[2] LUBRICATING SYSTEM
11900F10070
This engine's lubricating system consists of oil
strainer (9), oil pump (8), relief valve (10), oil filter
cartridge (16) and oil pressure switch (2).
The oil pump sucks lubricating oil from the oil pan
through the oil strainer and the oil flows down to the filter
cartridge, where it
is further filtered. Then the oil is
forced to crankshaft (7), connecting rods (15), idle gear
1 ENGINE
(1) Rocker Arm
(2) Oil Pressure Switch
(3) Rocker Arm Shaft
(4) Valve
(5) Governor Shaft
(6) Idle Gear
(7) Crankshaft
(8) Oil Pump
(9) Oil Strainer
(10) Relief Valve
(11) Push Rod
(12) Tappet
(13) Camshaft
(14) Piston
(15) Connecting Rod
(16) Oil Filter Cartridge
13
(6), governor shaft (5), camshaft (13) and rocker arm
shaft (3) to lubricate each part.
Some part of oil, splashed by the crankshaft or
leaking and dropping from gaps of each part, lubricates
these parts : pistons (14), cylinders, small ends of
connecting rods, tappets (12), push rods (11), inlet and
exhaust valves (4) and timing gears.
11900M10090
1-M7

Kubota B2910 Specifications

General

Fuel Type	Diesel
Transmission Type	Hydrostatic
Hydraulic System	Open center
3-Point Hitch	Category I
Lift Capacity	1, 323 lbs (600 kg)
Drive	4WD
Engine Type	Diesel, 4-cycle, liquid-cooled
Horsepower	30 hp
Number of Gears	Infinite (3 ranges)
Wheelbase	63 inches
PTO Horsepower	22 hp
