7INSTRUMENT PANEL AND CONTROLS
B Foot and Hand Controls
B Pedal Location Label

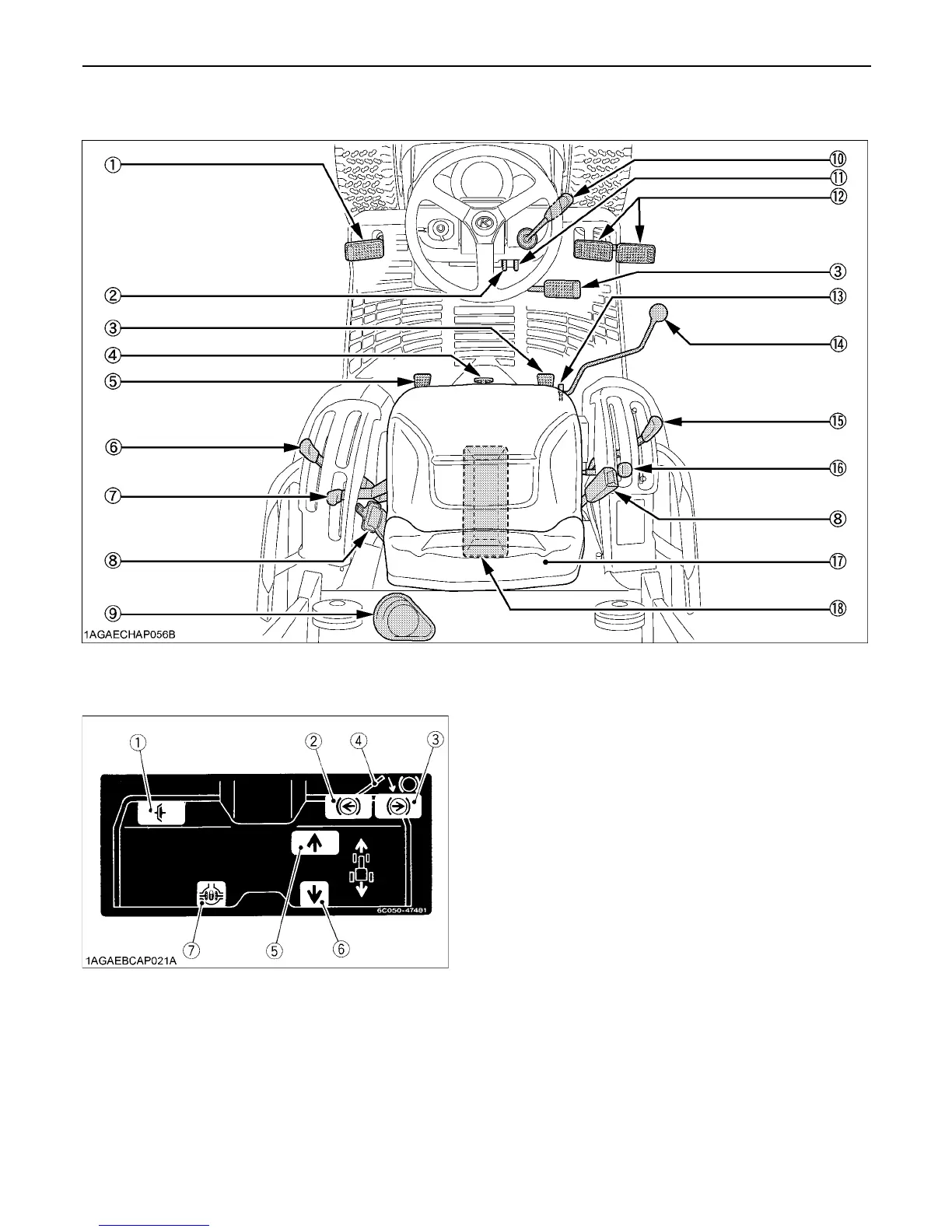

ILLUSTRATED CONTENTS
The label is located on the cover under seat. (1) Clutch pedal ................................................... 18
(2) Speed set lever (option) ................................. 21
(3) Speed control pedal ....................................... 20
(4) 3-point hitch lowering speed knob .................. 31
(5) Differential lock pedal ..................................... 23
(6) Range gear shift lever .................................... 19
(7) Rear-PTO gear shift lever .............................. 25
(8) Seat belt ......................................................... 16
(9) Cup holder ..................................................... ---
(10) Hand throttle lever ........................................ 20
(11) Parking brake lever ...................................... 20, 23
(12) Brake pedal .................................................. 18
(13) Loader lock lever .......................................... 32
(1) Clutch pedal
(2) Brake pedal (left)
(3) Brake pedal (right)
(4) Brake pedal lock
(5) Speed control pedal (forward)
(6) Speed control pedal (reverse)
(7) Differential lock pedal
(14) Loader control lever ..................................... 9, 32
(15) Hydraulic control lever .................................. 30
(16) Front wheel drive lever ................................. 19
(17) Operator's seat ............................................ 16
(18) Tool-box ....................................................... ---

Kubota B3300SU Specifications

General

Engine Type	Diesel
Engine Power	33 HP
Cylinders	3
Transmission Type	Hydrostatic
Drive	4WD
Hydraulic System Type	Open center
3-Point Hitch Category	I
Tire Size (Front)	7-16
Tire Size (Rear)	12.4-24
PTO Power	27.5 hp
Hydraulic Pump Capacity	6.3 gpm
Number of Gears	3-range
