TRANSMISSION
B2650HSDC, B3350HSDC, WSM
2-M19

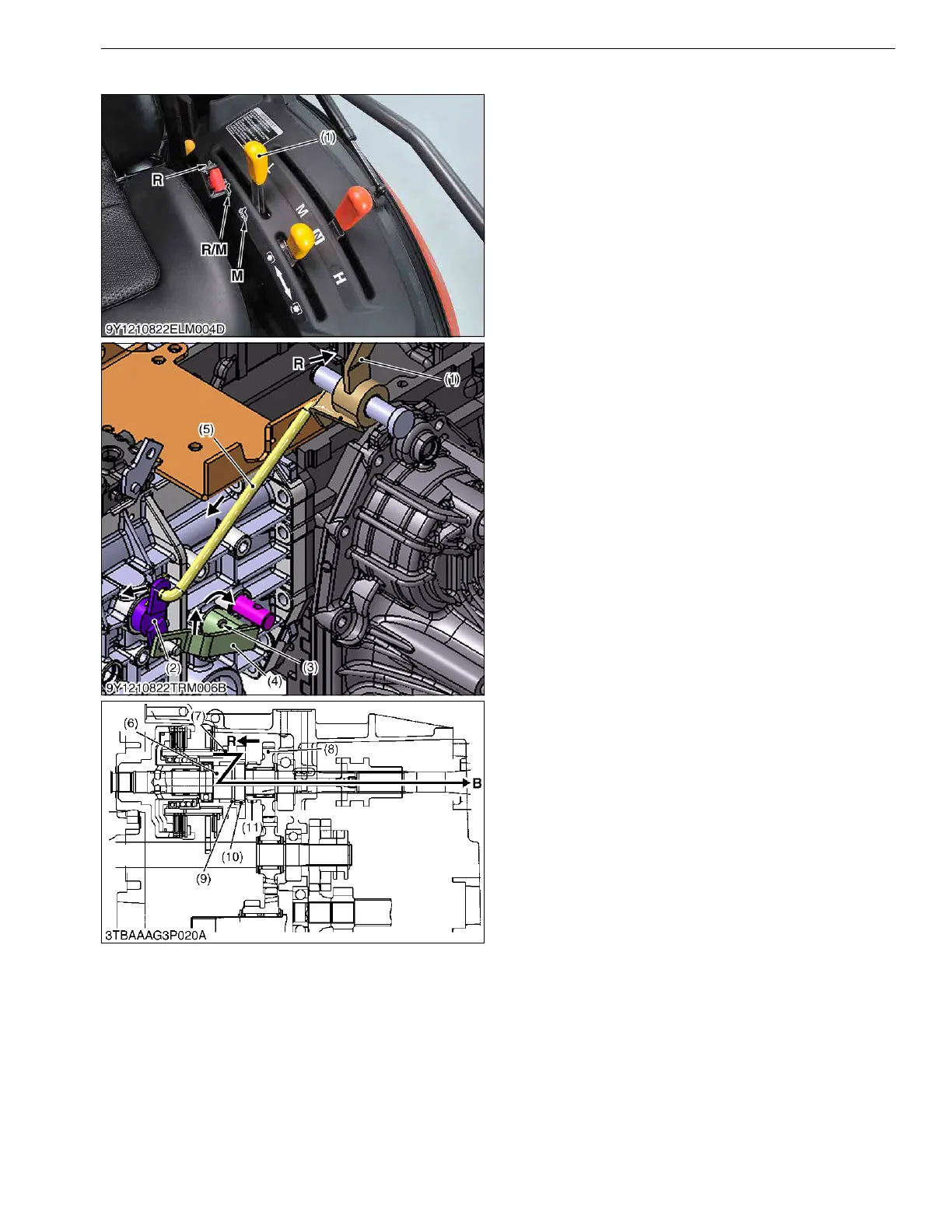

[2] REAR PTO SECTION
When the PTO shift lever (1) is set to "REAR PTO"
(R) position, the PTO shift lever (1) pushes the control
rod (5).
The control rod (5) pushes the range gear shifter arm
(2).In this state, the PTO shift arm (2) shifts the PTO
shifter (7) forward. The inner spline (10) of the PTO
shifter (7) meshes the independent PTO shaft spline (9).
Power is transmitted from the independent PTO
clutch to the rear PTO shaft as follows.
Independent PTO Clutch → PTO Shifter (7) →
Independent PTO Shaft (6) → Rear PTO Shifter → Rear
PTO Shaft
9Y1210822TRM0016US0
(1) PTO Shift Lever
(2) PTO Shift Arm
(3) Rear PTO Arm
(4) Rear PTO Control Plate
(5) Control Rod
(6) Independent PTO Shaft
(7) PTO Shifter
(8) 26T Mid Gear
(9) Independent PTO Shaft
Spline
(10) Inner Spline
(11) 26T Mid Gear Spline
R : "REAR PTO" Position
R/M :"REAR PTO / MID PTO"
Position
M : "MID PTO" Position
