7. CHECK AND MAINTENANCE
• Be sure to check and service the tractor on a flat place with engine shut off, the parking brake on and
chock the wheels.
9Y1210822GEG0006US0
[1] DAILY CHECK
To avoid personal injury:
Take the following precautions when checking the tractor.
• Park the machine on firm and level ground.
• Set the parking brake.
• Lower the implement to the ground.
• All residual pressure of the hydraulic system released.
• Stop the engine and remove the key.
9Y1210822GEG0007US0
Walk Around Inspection
1. Look around and under the tractor for such items as loose bolts,
trash build-up, oil or coolant leaks, broken or worn parts.
9Y1210822GEG0008US0
Checking Engine Oil Level
To avoid personal injury:
• Be sure to stop the engine before checking the oil level.
1. Park the machine on a flat surface.
2. Check engine oil before starting the engine or 5 minutes or more
after the engine has stopped.
3. To check the oil level, draw out the dipstick, wipe it clean,
replace it, and draw it out again. Check to see that the oil level
lies between the two notches.
If the level is too low, add new oil to the prescribed level at the
oil inlet.
• When using an oil of different maker or viscosity from the
previous one, remove all of the old oil.
Never mix two different types of oil.
• If oil level is low, do not run engine.
9Y1210822GEG0009US0
Checking Transmission Fluid Level
1. Park the machine on a flat surface, lower the implement and
shut off engine.
2. To check the oil level, draw out the dipstick, wipe it clean,
replace it, and draw it out again. check to see that the oil level
lies between the two notches.
If the level it too low, add new oil to the prescribed level at the
oil inlet.
• If oil level is low, do not run engine.
9Y1210822GEG0010US0

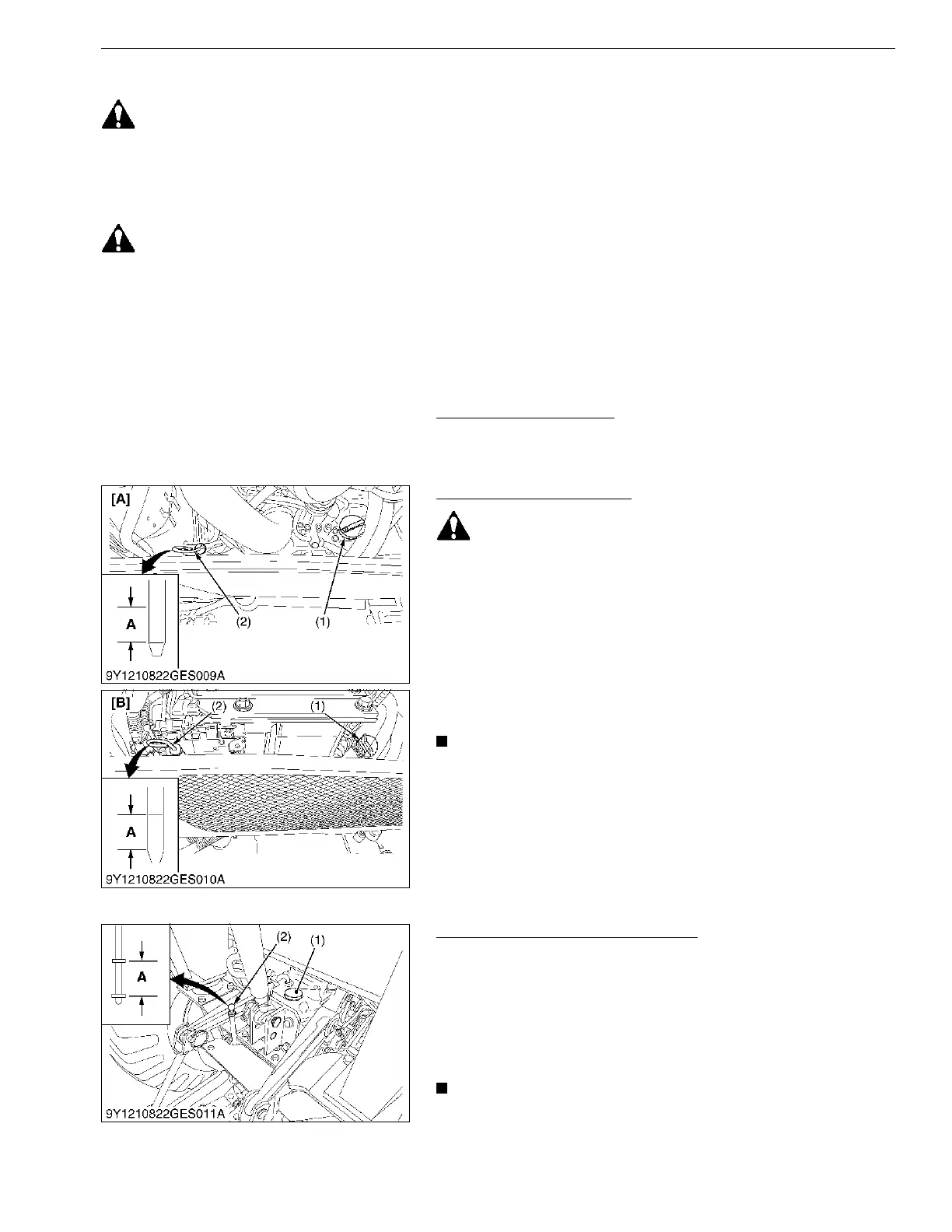

(1) Oil Inlet
(2) Dipstick
A : Oil level is acceptable within this
range.
[A] B2650
[B] B3350
(1) Oil Inlet
(2) Dipstick
A : Oil level is acceptable within this
range.
