Kubota B3350HSDC User Manual

CABIN
B2650HSDC, B3350HSDC, WSM
9-M1
1. AIR CONDITIONER SYSTEM
[1] OUTLINE OF AIR CONDITIONING SYSTEM
(To be continued)

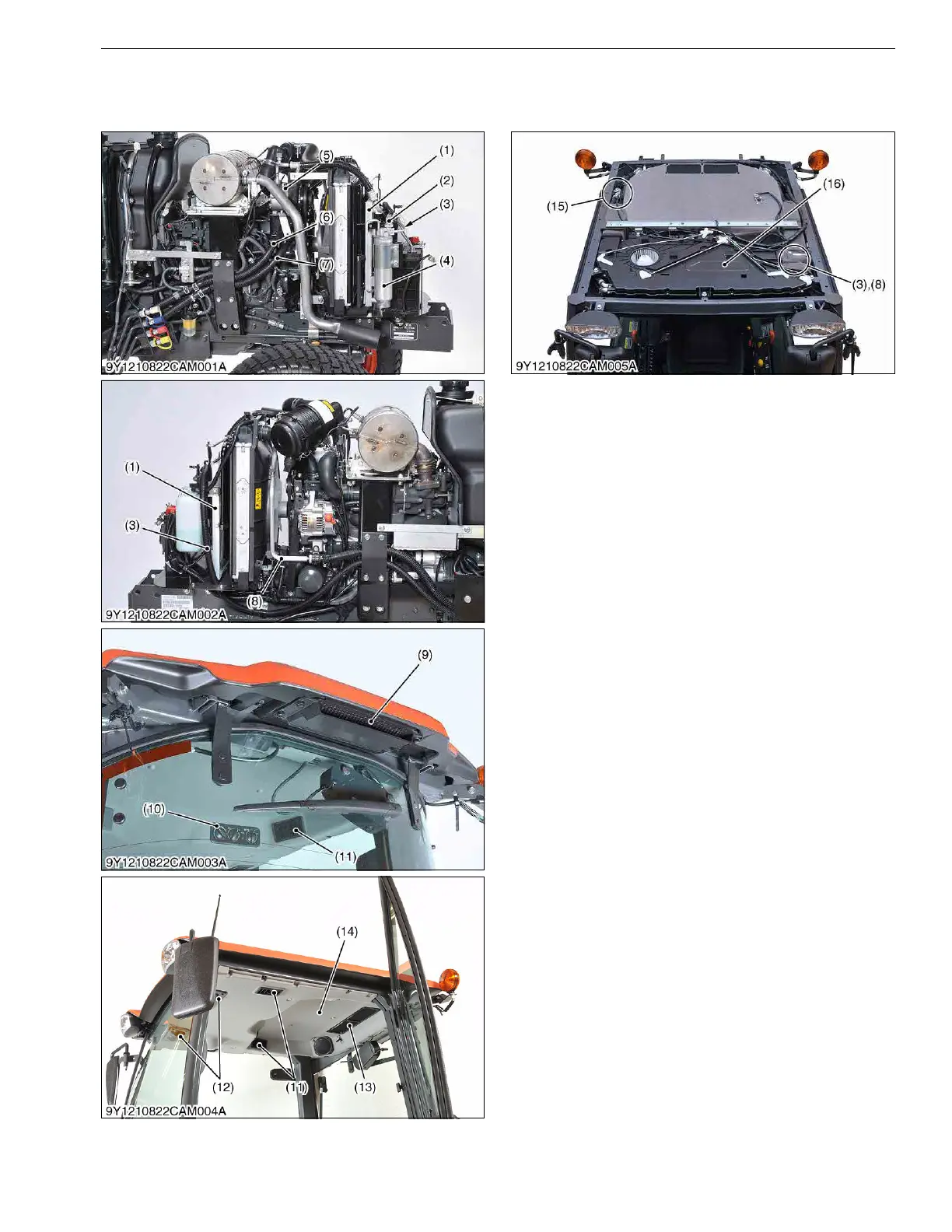

(1) Condenser
(2) Pressure Switch
(3) High Pressure Pipe
(4) Receiver
(5) Compressor
(6) Heater Hose (Inlet Side)
(7) Heater Hose (Outlet Side)
(8) Low Pressure Pipe
(9) Outside Air Filter
(10) Control Panel
(11) Side Air Outlet
(12) Front Air Outlet
(13) Inside Air Filter
(14) Inner Roof
(15) Water Valve
(16) Air Conditioner Unit
