[2] CONDENSER
The condenser (1) is installed in the front of the
radiator to enable forced cooling by the air drawn in by
the engine radiator fan.
The condenser is used for the purpose of cooling by
robbing the heat from the refrigerant gas, which has
been compressed by the compressor into high
temperature, high pressure gas, and change this gas
into liquid refrigerant.
The heat given off by the gaseous refrigerant in the
condenser is the sum of the heat absorbed at the
evaporator and the heat of work required by the
compressor to compress the refrigerant. The greater the
amount of heat is given off in the condenser, the greater
the cooling effect attainable by the evaporator in the
cabin.
9Y1210822CAM0007US0

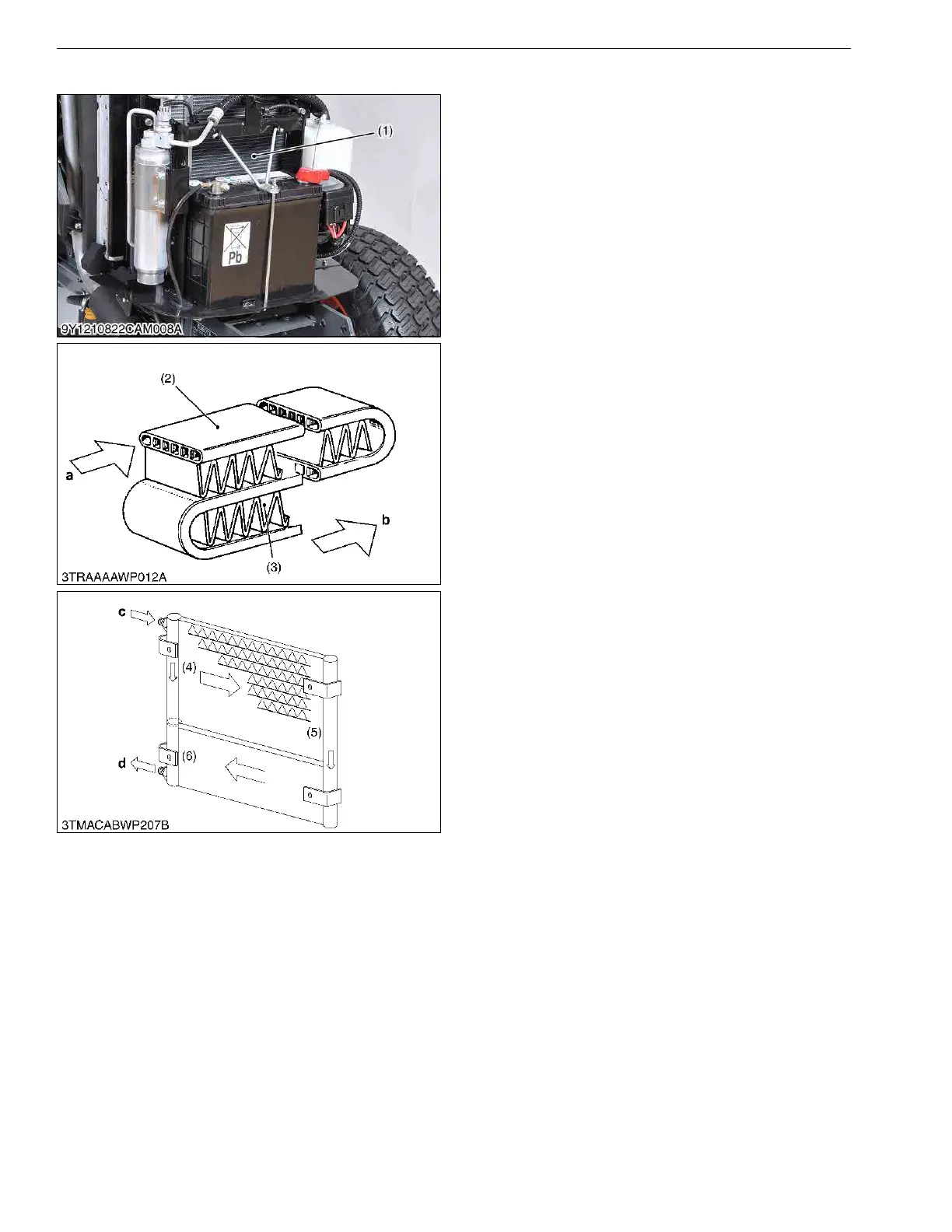

(1) Condenser
(2) Tube
(3) Fin
(4) Vapor
(5) Liquefying
(6) Liquefied
a: Gaseous Refrigerant
b: Liquid Refrigerant
c: Heated Vapor from
Compressor (70 °C, 158 °F)
d: Cooled Liquid to Receiver
(50 °C, 122 °F)
