CABIN
B2650HSDC, B3350HSDC, WSM
9-S27

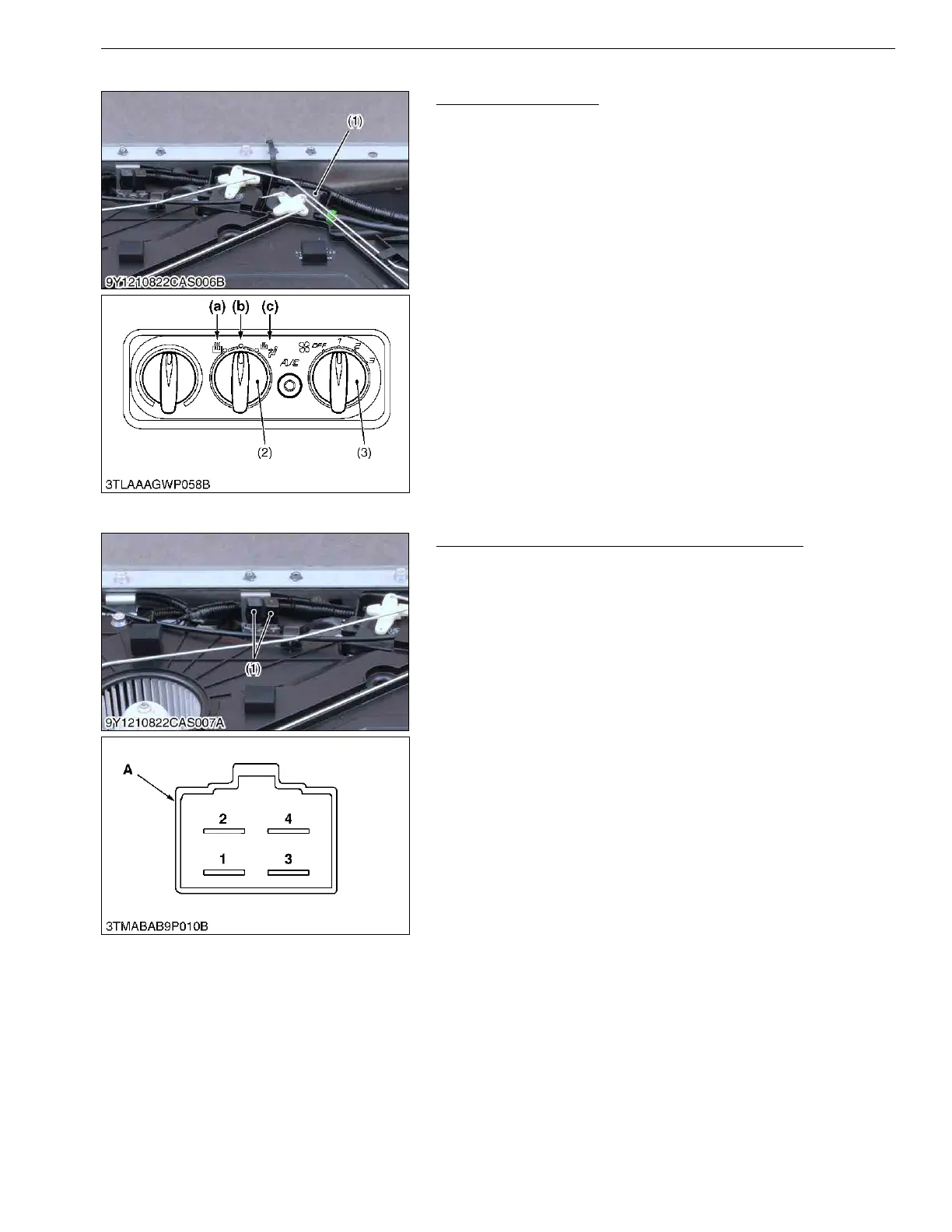

(6) Mode Motor
Mode Motor Checking
1. Make sure whether the mode switch (2) is damaged.
2. Turn the main switch to "ON" position.
3. Turn the blower switch at 1 position.
4. Turn the mode switch each (a), (b) and (c).
5. Make sure whether the position where the mode motor (1) is
stopped synchronize with mode switch (2).
6. If the motor does not move, replace it.
9Y1210822CAS0045US0
(7) Air Conditioner Relay and Blower Relay
Checking Air Conditioner Relay and Blower Relay
1. Remove the air conditioner relay and blower relay.
2. Apply battery voltage across terminals 3 and 4, and check for
continuity across terminals 1 and 2.
3. If continuity is not established, renew the relay.
9Y1210822CAS0046US0
(1) Mode Motor
(2) Mode Switch
(3) Blower Switch
(a) Air is blown from only the
defroster air outlet
(b) Air is blown weaken from the side
air outlets (head) and stronger
from the front air outlets
(c) Air is blown from the front and
side air outlets
(1) Relay A: Connector of Relay
To Next Page
