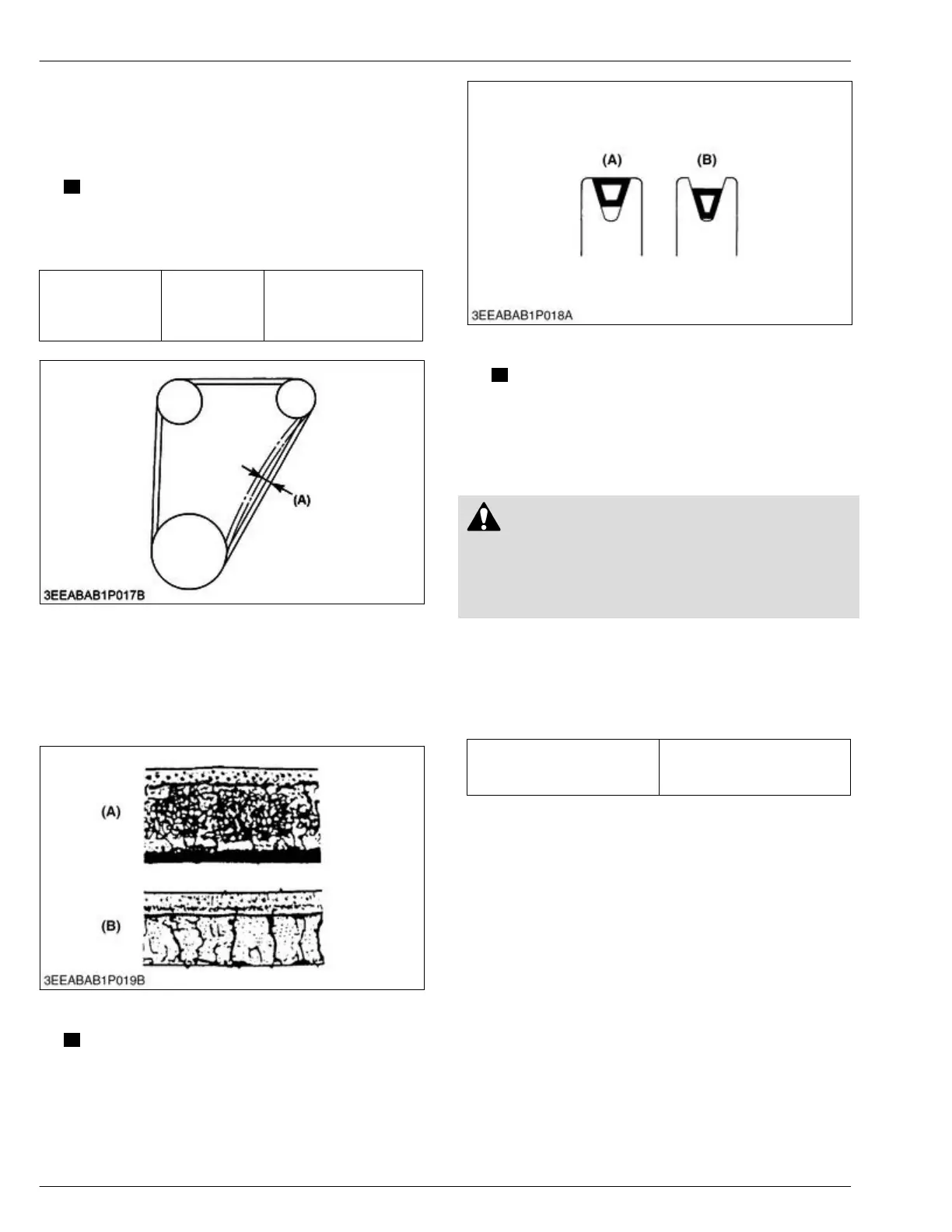

4.4 Checking fan belt tension
1. Push the
belt halfway between the fan drive pulley
and alternator pulley at a specified force to measure
the deflection (A).
NOTE
• If
the
measurement is out of the service
specifications, loosen the alternator
mounting screws and adjust its position.
Deflection (A)
Service specifi-
cation
10.0 to 12.0 mm
0.394 to 0.472 in.
(under load of 98 N
(10 kg, 22.1 lbf))
(A) Fan belt halfway
4.5 Checking fan belt damage and
wear
1. Check the fan belt for damage.
(A) Good (B) Bad
NOTE
• If the fan belt has a damage, replace it.
2.
Check if the fan belt is worn out and sunk in the
pulley groove.
(A) Good (B) Bad
NOTE
• If it is "Bad" (B), replace it.
4.6 Checking radiator cap air
leakage
CAUTION
• Remove the
radiator cap only after you stop the
engine for a minimum of 10 minutes to decrease
its temperature.
If not, hot water can gush out and cause injury.
Tools required
• Radiator cap tester and an adapter
1. Set a radiator tester and an adapter on the radiator
cap.
2.
Apply the specified pressure.
Specified pressure
88 kPa
0.90 kgf/cm
2
12 psi
4. ENGINE
SERVICING
4. Checking and adjusting
4-100
