(1) Fuse
(2) Fusible link
(3)
Slow blow fuse

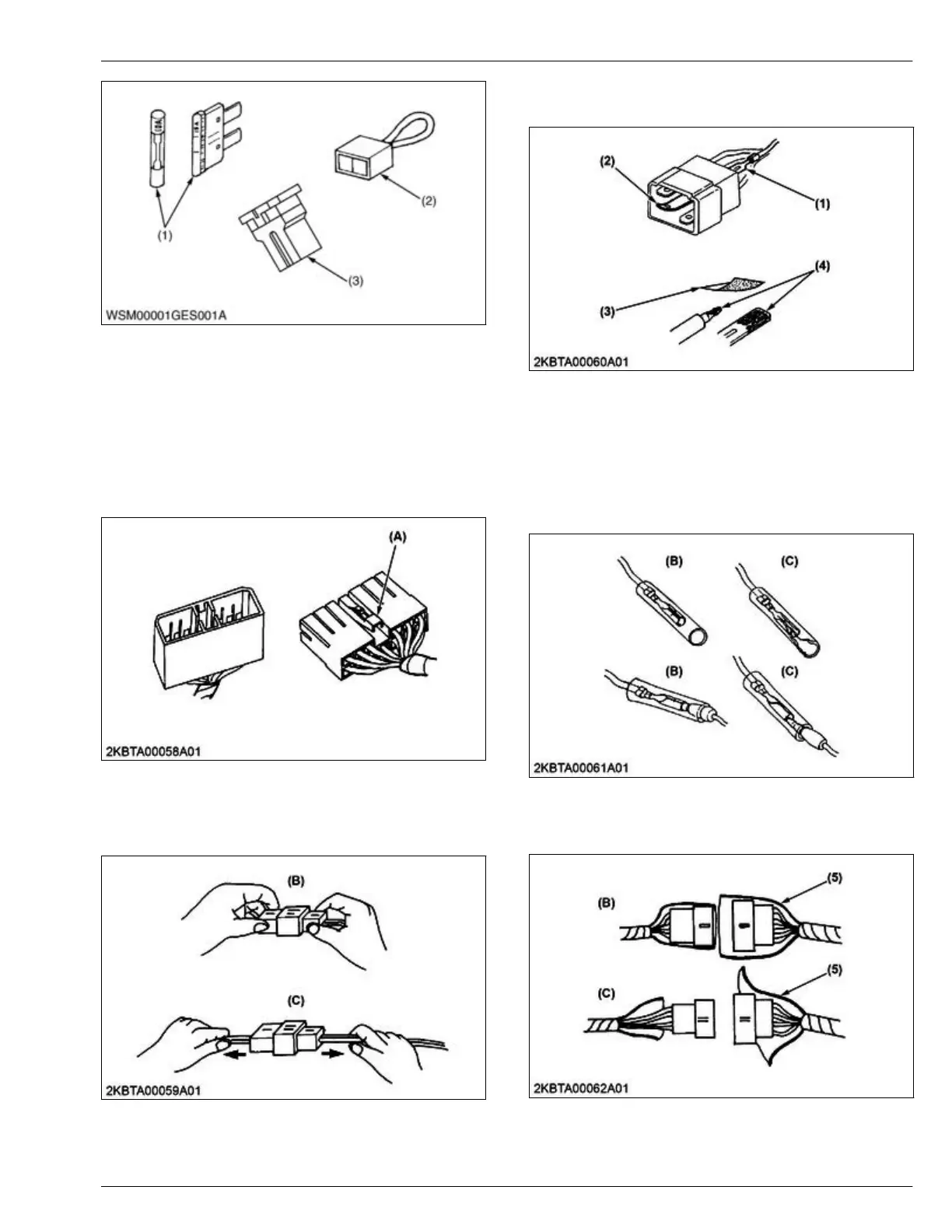

10. Handling connectors
• When disconnecting the locking connectors, be
sure
to disengage the lock before disconnecting.
There are two kinds of locks: one requires pressing
and the other requires pulling.
(A) Press
• Pull the connector body securely when
disconnecting the connectors.
•
Do not pull the wire harness to separate.
(B) Correct (C) Incorrect
• Make sure the terminal condition of the connectors
is not bent, rusty, and so on.
• If
the terminal is rusted, remove rust with
sandpaper
.
(1) Missing terminal
(2) Bent terminal
(3)
Sandpaper
(4) Rust
• Cover
the female bullet terminals and male bullet
terminals
securely with the waterproof plastic
covers.
• Make sure that the bullet terminals are secure and
connected securely to the tip.
(B) Correct (C) Incorrect
• Cover the female connectors and male connectors
securely with the waterproof plastic covers.
(5) Cover
(B) Correct
(C)
Incorrect
GENERAL WORKING PRECAUTIONS
10. Handling connectors 2. GENERAL
D1803-CR-E4,D1803-CR-TE4,D1803-CR-TIE4,V2403-CR-E4,V2403-CR-TE4,V2403-CR-TE4BG,V2403-CR-TIE4
2-5
KiSC issued 12, 2018 A
