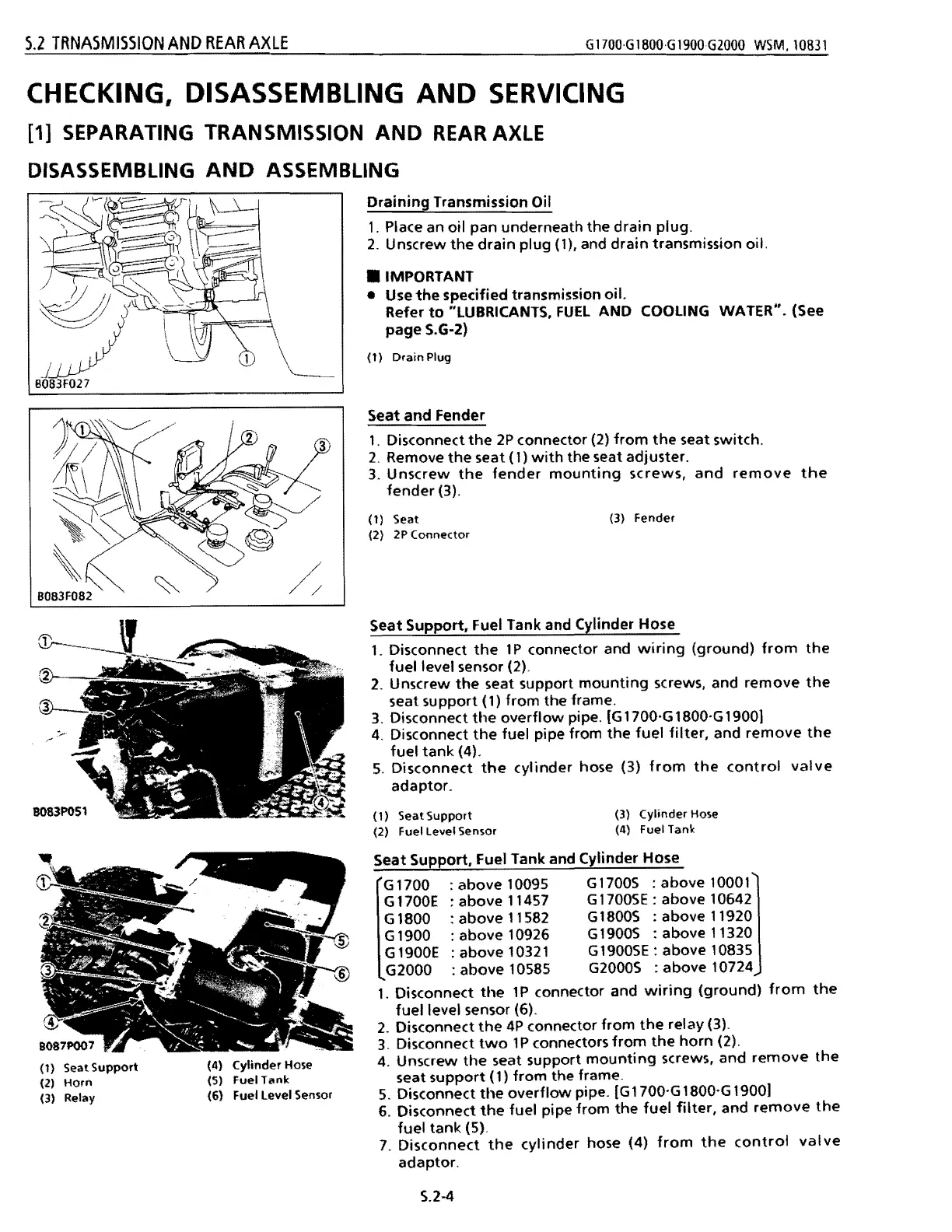

S.2 TRNASMISSION AND REAR AXLE
G1700·GI800·GI900G2000 WSM.l0831
CHECKING, DISASSEMBLING AND SERVICING
[1] SEPARATING TRANSMISSION AND REAR AXLE
DISASSEMBLING
AND ASSEMBLING
Draining Transmission Oil
1. Place an oil pan underneath the drain plug.
2. Unscrew the drain plug (1), and drain transmission oil.
• IMPORTANT
• Use
the specified transmission oil.
Refer to "LUBRICANTS, FUEl AND COOLING WATER". (See
page S.G-2)
(1) Drain Plug
Seat and Fender
,. Disconnect the 2P connector (2) from the seat switch.
2. Remove the seat (1) with the seat adjuster.
3. Unscrew the fender mounting screws, and remove the
fender (3).
(1) Seat
(3) Fender
(2) 2P Connector
Seat Support, Fuel Tank and Cylinder Hose
1. Disconnect the 1 P connector and wiring (ground) from the
fuel level sensor (2).
2. Unscrew
the seat support mounting screws, and remove the
seat support (1) from the frame.
3. Disconnect the overflow pipe. [G1700'G1800'G1900]
4. Disconnect the fuel pipe from the fuel filter, and remove the
fuel tank (4).
5. Disconnect the cylinder hose (3) from the control valve
adaptor.
(1) Seat Support
(3) Cylinder Hose
(2) Fuel Level Sensor
(4) Fuel Tank
Seat Support, Fuel Tank and Cylinder Hose
G1700 : above 10095 G1700S: above 10001
G 1700E : above 11457 G 1700SE : above 10642
G 1800 :
above 11582 G 18005 : above 11920
G 1900 :
above 10926 G 1900S : above 11320
G1900E :
above 10321 G1900SE: above 10835
G2000 :
above 10585 G20005: above 10724
1. Disconnect the 1 P connector and wiring (ground) from the
fuel level sensor (6).
2. Disconnect the 4P connector from the relay (3).
3. Disconnect two 1 P connectors from the horn (2).
4. Unscrew
the seat support mounting screws, and remove the
(1) Seat Support
seat support (1) from the frame.
(2) Horn
5. Disconnect the overflow pipe. [G 1700'G 1800-G 1900]
(3) Relay
6. Disconnect the fuel pipe from the fuel filter, and remove the
fuel tank (5).
7. Disconnect the cylinder hose (4) from the control valve
adaptor.
5.2-4
3
(4) Cylinder Hose
(5) Fuel Tank
(6) Fuel level Sensor
