HYDRAULIC UNIT76
BMode Selector Switch
Select the position control or the draft control depending
on the types of work. Choose the draft control for jobs
requiring traction such as plowing and sub-soiling.
BPosition Control Mode
C Hydraulic control lever
This will control the working depth of 3-point hitch
mounted implement regardless of the amount of pull
required.
A While traveling, set the hydraulic control lever to the
travel lock position (D) to prevent an unexpected drop
of the implement.
Draft control selected:.................... The draft indicator
lights up.
Position control selected:............... The draft indicator
goes off.

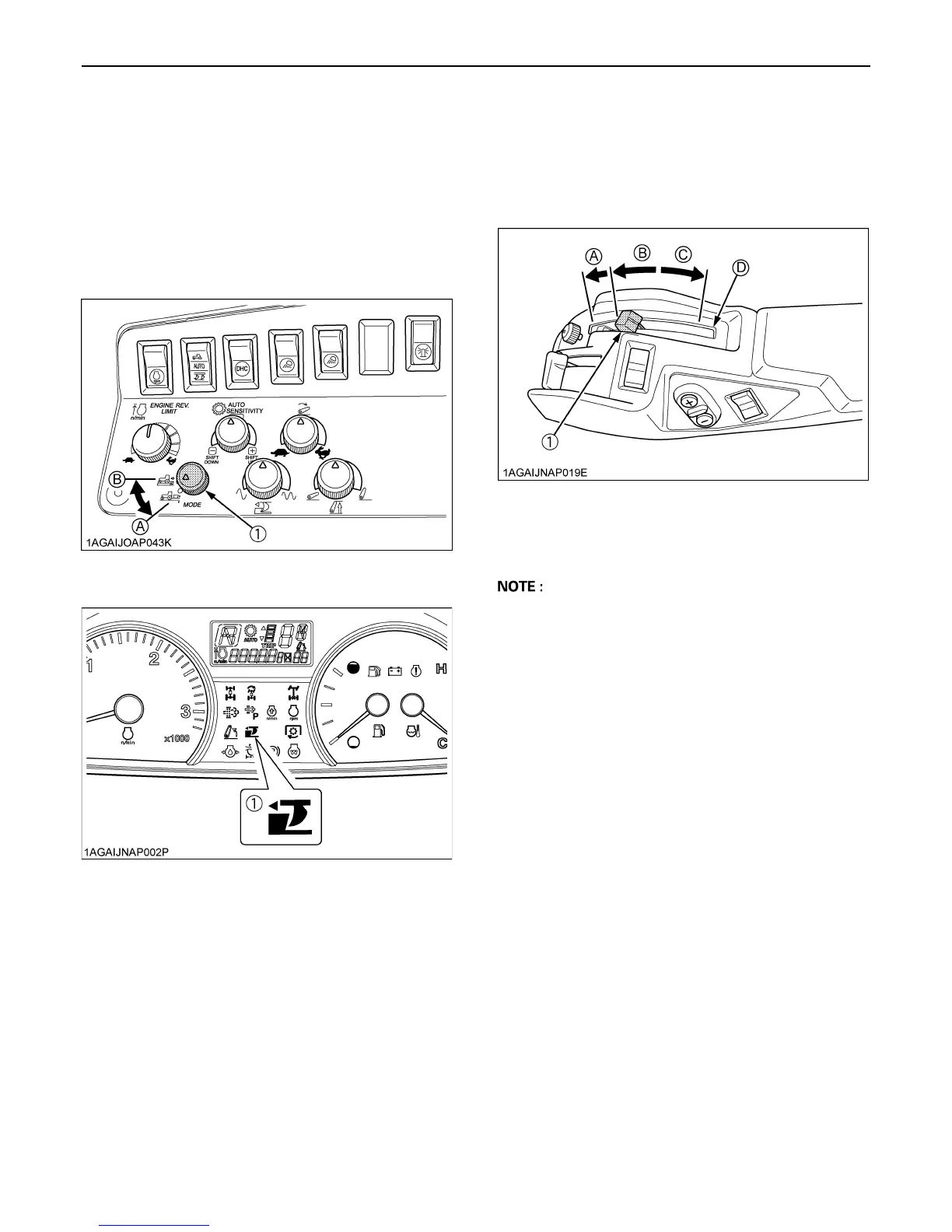

(1) Mode selector switch (A) "POSITION CONTROL"
(B) "DRAFT CONTROL"
(1) Draft indicator
(1) Hydraulic control lever (A) "FLOAT"
(B) "DOWN"
(C) "UP"
(D) "TRAVEL LOCK POSITION"
