81PERIODIC SERVICE
C Adjusting procedures
1. Detach the snap ring.
2. Loosen the tie-rod nut.
3. Turn the tie-rod joint to adjust the rod length until the
proper toe-in measurement is obtained.
4. Retighten the tie-rod nut.
5. Attach the snap ring of the tie-rod joint.
BDraining Fuel Tank Water
Loosen the drain plug at the bottom of the fuel tank to let
sediments, impurities and water out of the tank. Finally
tighten up the plug.
A If the fuel contains poor qualities with much water in it,
drain the fuel tank at shorter intervals.
A Drain the fuel tank before operating the tractor after a
long period of storage.

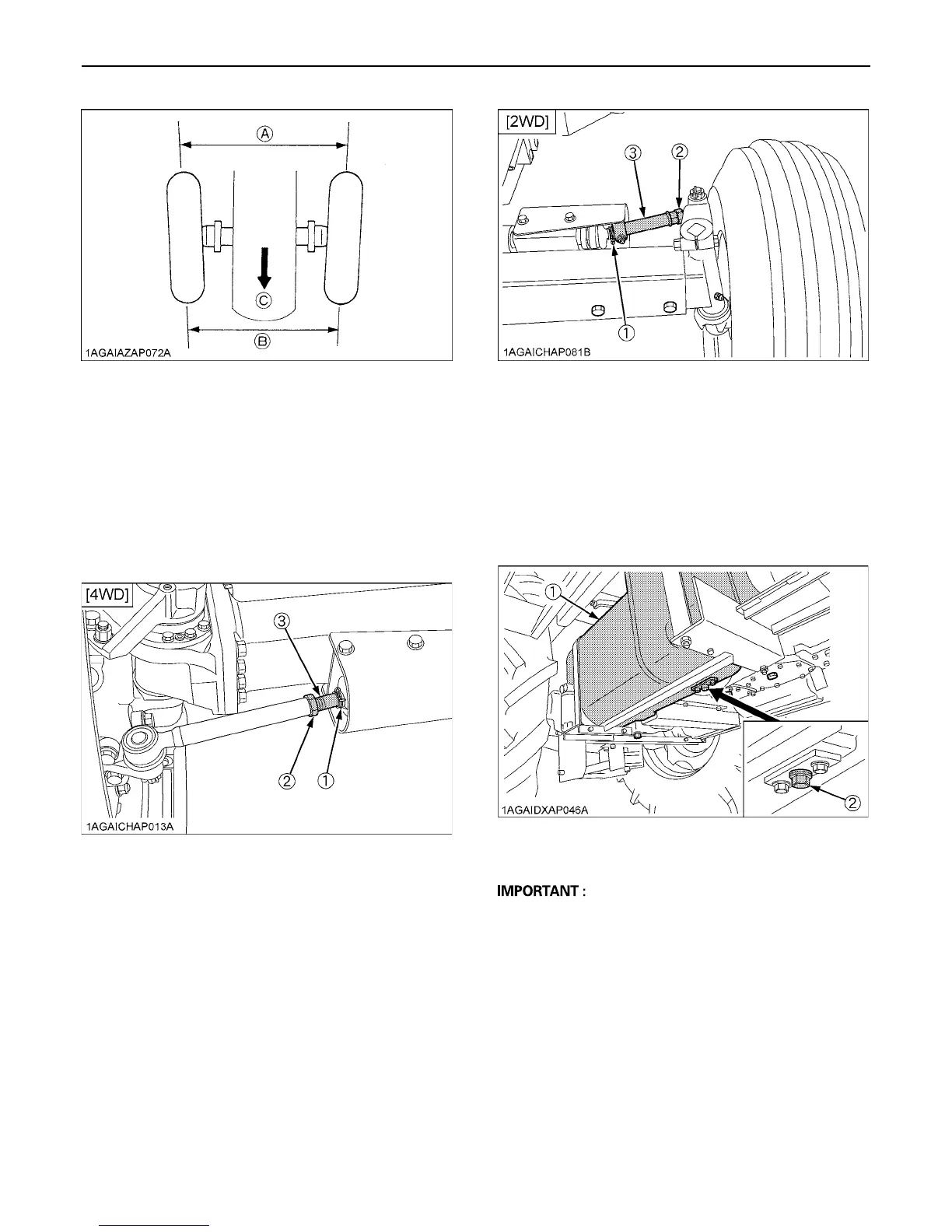

(A) Wheel - to - wheel distance at rear
(B) Wheel - to - wheel distance at front
(C) "FRONT"
(1) Snap ring
(2) Tie-rod nut
(167 to 196 N-m, 17 to 20 kgf-m, 123.2 to 144.6 ft-lbs)
(3) Tie-rod joint
(1) Snap ring
(2) Tie-rod nut
(167 to 196 N-m, 17 to 20 kgf-m, 123.2 to 144.6 ft-lbs)
(3) Tie-rod joint
(1) Fuel Tank (Right)
(2) Drain plug
