S.1 ENGINE
WS019W5021 WSM,10481
0617P005

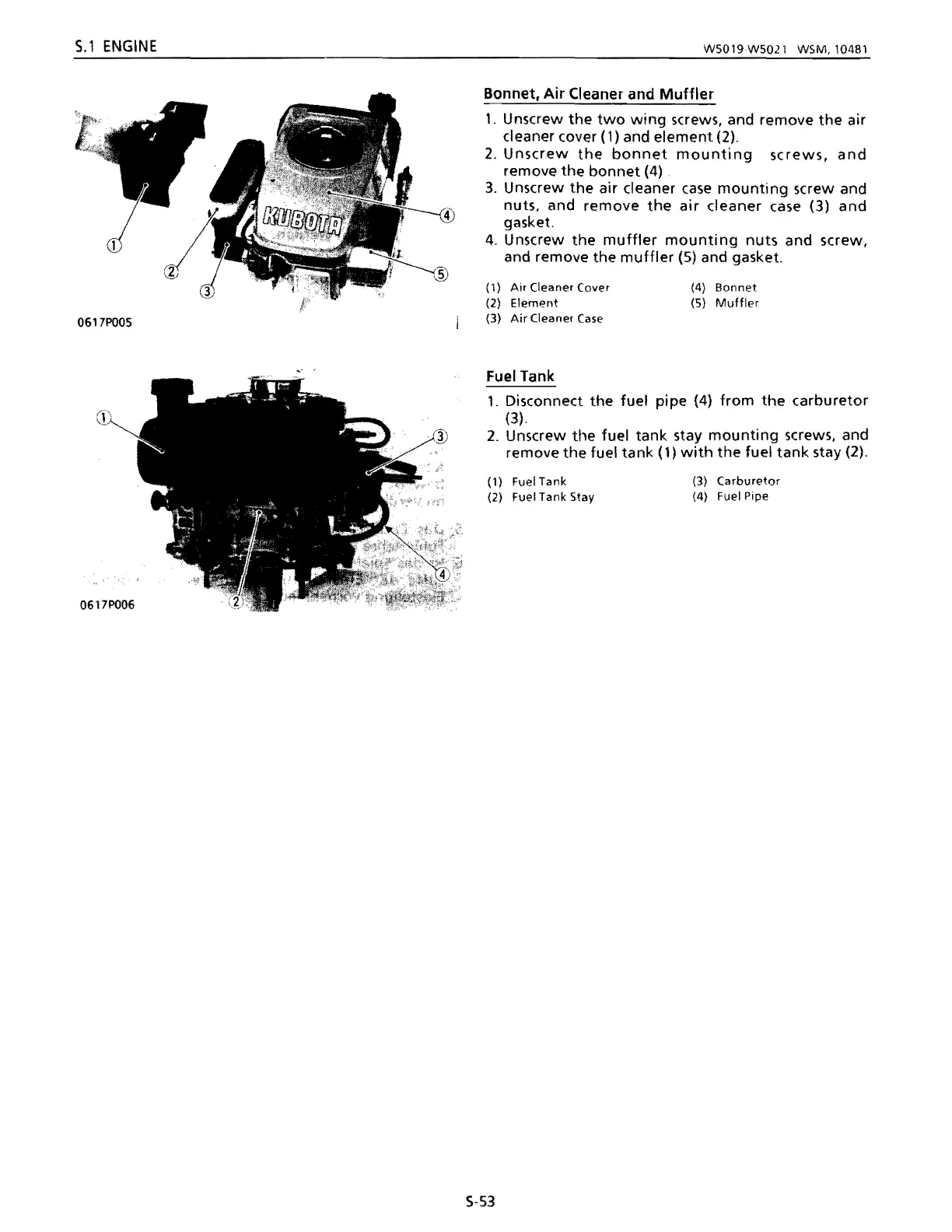

Bonnet, Air Cleaner and Muffler
1. Unscrew the two wing screws, and remove the air
cleaner cover (1) and element (2).
2. Unscrew the bonnet mounting screws, and
remove the bonnet (4) .
3. Unscrew the air cleaner case mounting screw and
nuts, and
remove the air cleaner case (3) and
gasket.
4. Unscrew the muffler mounting nuts and screw,
and remove the muffler (5) and gasket.
(1) Air Cleaner Cover (4) Bonnet
(2) Element (S) Muffler
(3) Air Cleaner Case
Fuel Tank
1. Disconnect the fuel pipe (4) from the carburetor
(3).
2. Unscrew the fuel tank stay mounting screws, and
remove the fuel tank (1) with the fuel tank stay (2).
(1) Fuel Tank
(3) Carburetor
(2) Fuel Tank Stay
(4) Fuel Pipe
$-53
