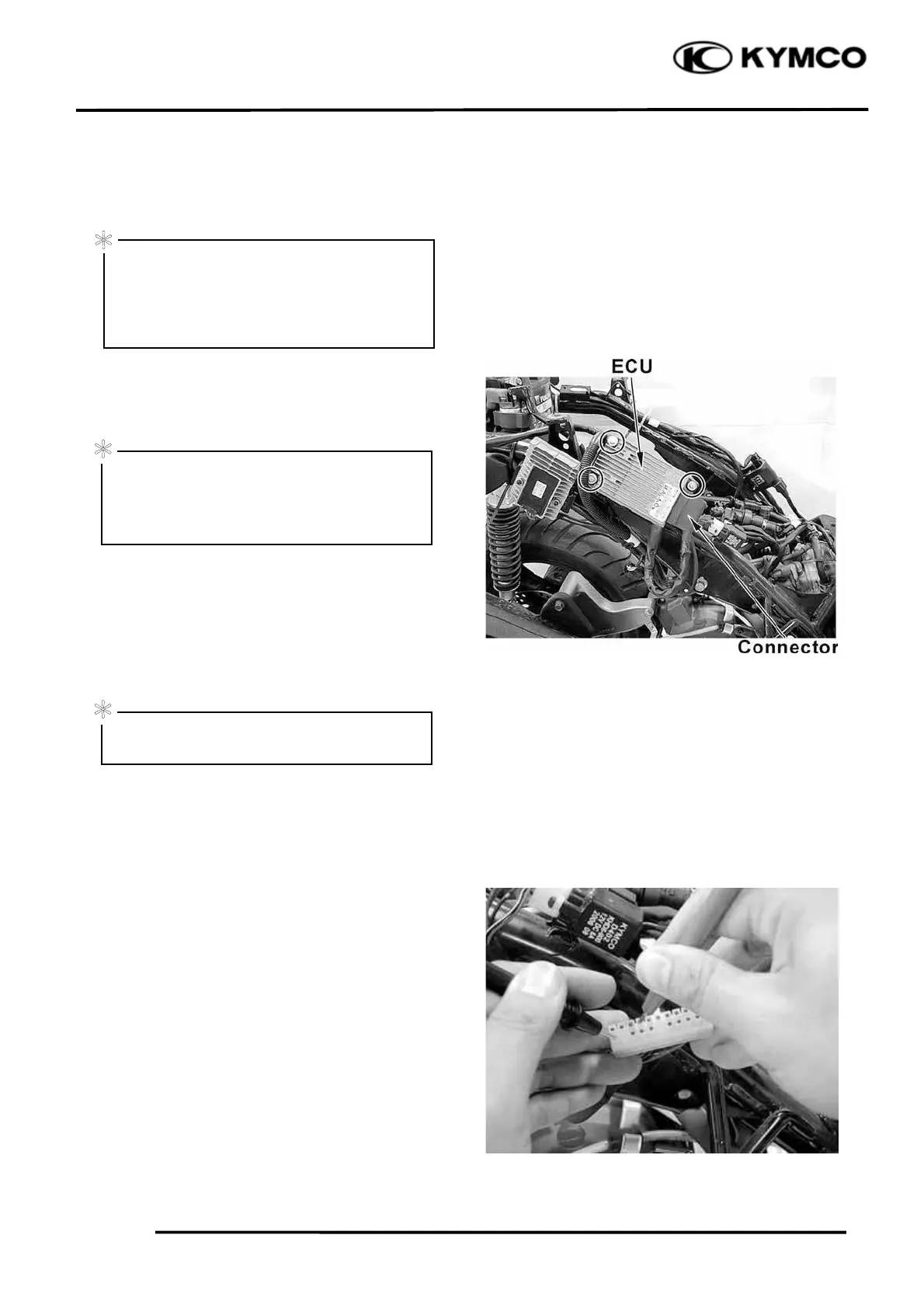

14. DINK 200i: FUEL SYSTEM (Auto Control Fuel Injection System)

14-31

ENGINE CONTROL UNIT (ECU)

REMOVAL/INSTALLATION

Remove three bolts and disconnect ECU

connector, then remove ECU.

Installation is in the reverse order of the

removal.

INSPECTION

(Using a commercially available

multimeter)

Input voltage

Turn ignition switch to OFF, and Disconnect

the ECU connector.

Turn ignition switch to ON.

Connect the multimeter (+) probe to the red

wire and the multimeter (-) probe to the green

wire.

There should be battery voltage at all times.

! Do not disconnect or connect the ECU

connector during the ignition switch

“ON”; it may cause the ECU damage.

! Connect the battery terminals topsy-

turvy may cause ECU damage.

Keep out of water.

Remove the battery when the ignition

switch is ON may cause the ECU

damage.

ECU pin location and function in next

page.
