5. ENGINE REMOVAL/INSTALLATION
5-5
D
I
N
K
1
2
5

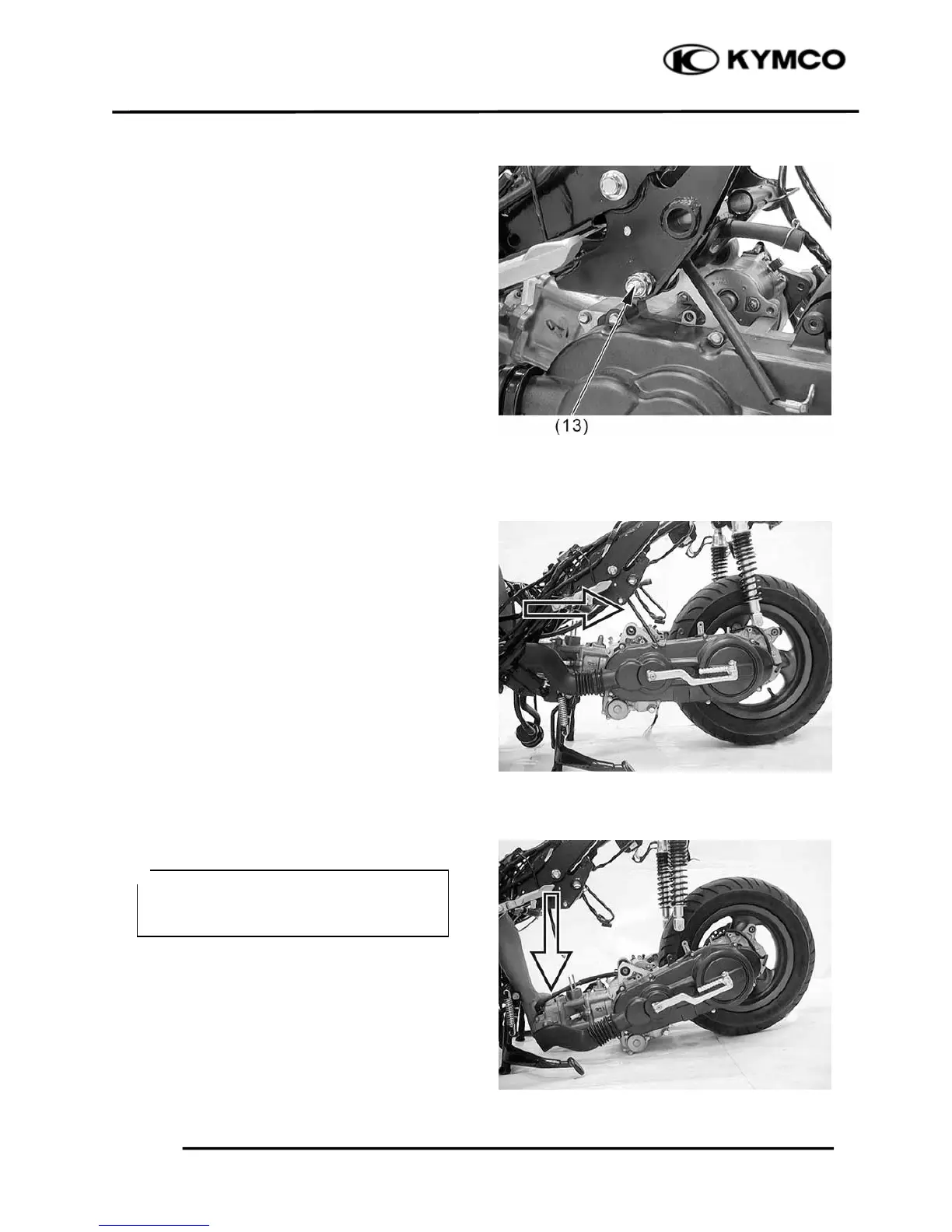

Remove the engine mount nut (13).
Pull out the engine mount bolt.
Remove the engine from the fram
e.
At removing the engine, be careful not to
catch your hand or finger between the
engine hanger and crankcase.
＊
