10. CRANKCASE/CRANKSHAFT
10
-
3
ZX / SCOUT

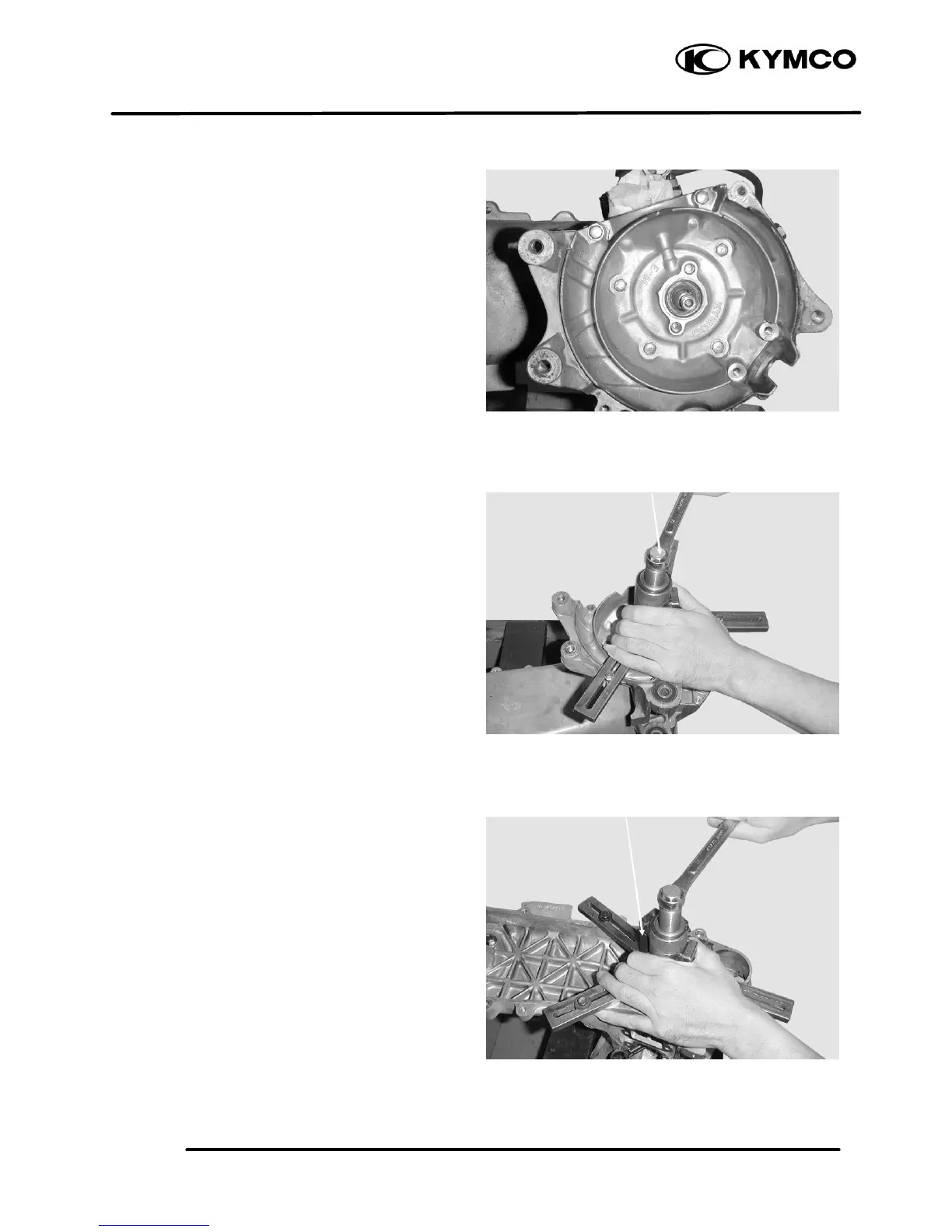

CRANKCASE SEPARATION
Remove the crankcase attaching bolts.
Attach the crankcase puller on the right
crankcase and remove the right crankcase
from the left crankcase.
CRANKSHAFT REMOVAL
Attach the crankcase puller on the left
crankcase and remove the crankshaft from the
left crankcase.
Crankcase Puller
Crankcase Puller
