KYMCO Super 8 50 Service Manual

9. DRIVE AND DRIVEN PULLEYS
9-2
Super 8 50

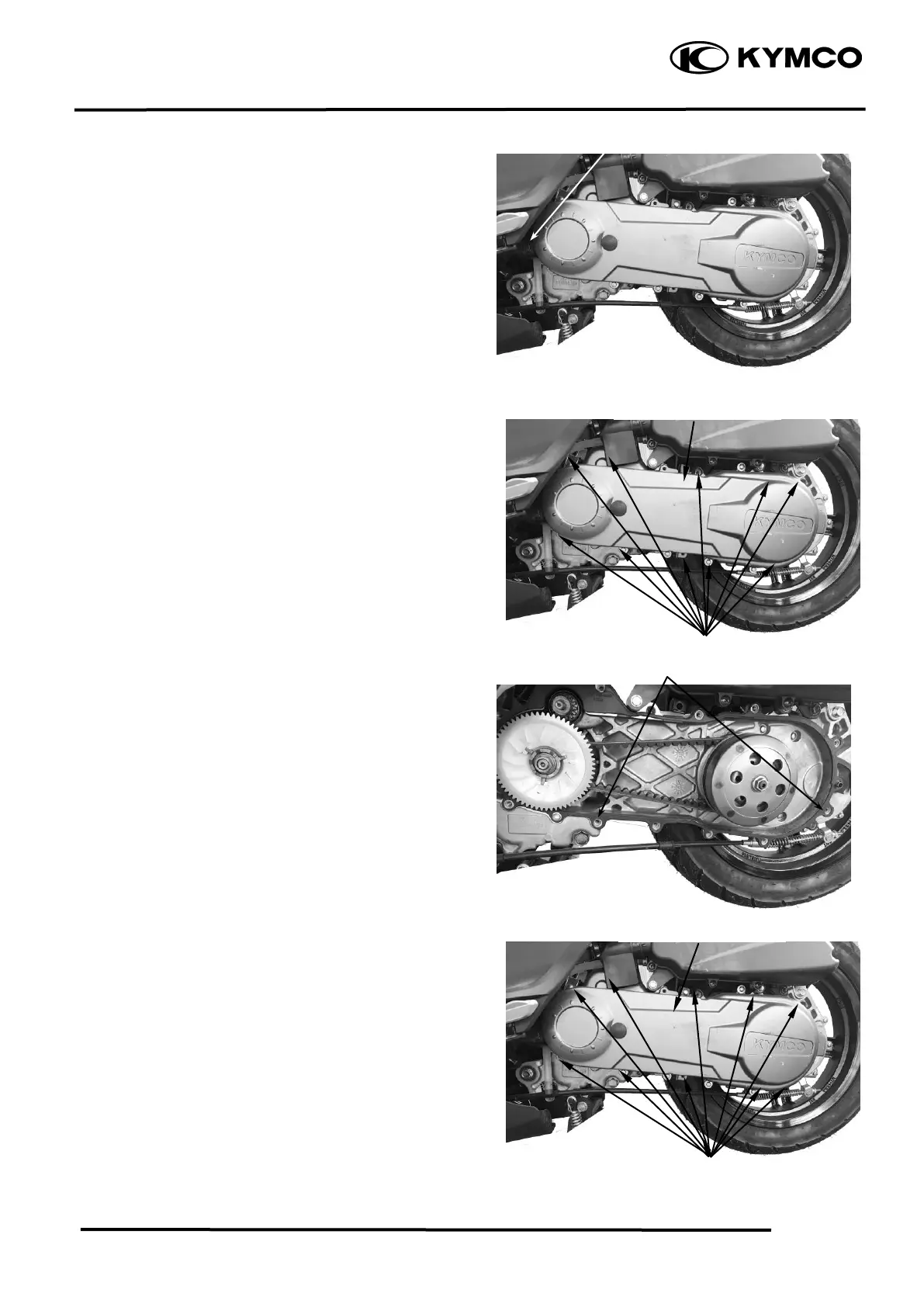

LEFT CRANKCASE COVER
REMOVAL
Loosen the drive belt air tube band screw.
Remove the left crankcase cover bolts.
Remove the seal rubber and dowel pins.
INSTALLATION
Install the dowel pins and gasket.
Install the left crankcase cover and tighten
the left crankcase cover bolts.
Install the cable clamp to the specified
location and tighten the bolt.
Install the drive belt air tube and tighten the
tube band screw.
Bolts
Left Crankcase Cover
Air Tube Band
Dowel Pins
Bolts
Left Crankcase Cover

KYMCO Super 8 50 Specifications

General

Displacement	49.5 cc
Fuel System	Carburetor
Ignition	CDI
Front Suspension	Telescopic Fork
Front Brake	Disc
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air
Transmission	CVT Automatic
Seat Height	780 mm
Wheelbase	1, 280 mm
