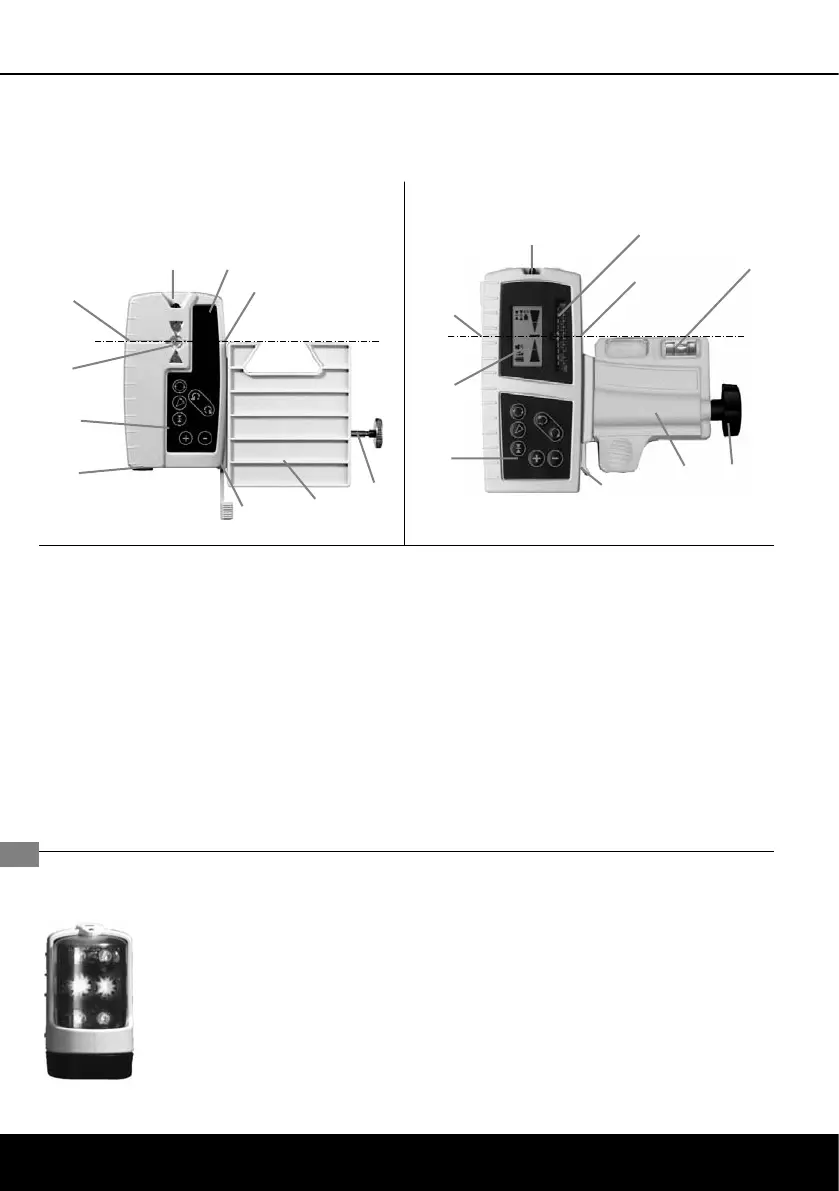

Instruction Manual
1 IR output signal
2 Receiver field for laser beam
3 SpotLite marking LED (not with
SensoCommander Coolblue)
4 LED display
5 Vial
6 Securing screw
7 Universal mount
8 Securing lever
9 Battery compartment (on back)
10 Control panel
11 LCD display (on back)
12 LCD display
13 All-round marking groove
SensoCommander (optional) - Accessory
The SensoCommander is an all-in-one remote control and laser receiver unit.
3
1
6
7
8
10
13
2
3
1
6
7
8
10
9
12
11
13
5
SensoCommander 120:
(Diodes also on the back)
SensoCommander Pro:
2
4
9
RoundLite Signal Transmitter (optional)
This system is ingeniously simple: RoundLite and SensoCommander Pro
RF communicate with each other via radio technology to form an
intelligent network, see page 3. RoundLite thereby acts as an extended
display of the laser receiver. With 6 extra-bright LEDs, RoundLite shows
the exact position of the laser.
Note: For SensoCommander Pro RF only.
