301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
Page 3 of 3
INSTRUCTION/INSTALLATION SHEET
Selective Call Intercom Video Door
Unit
IS-0426 REV. O
©Copyright 2008 by On-Q/Legrand All Rights Reserved.
4. Operation

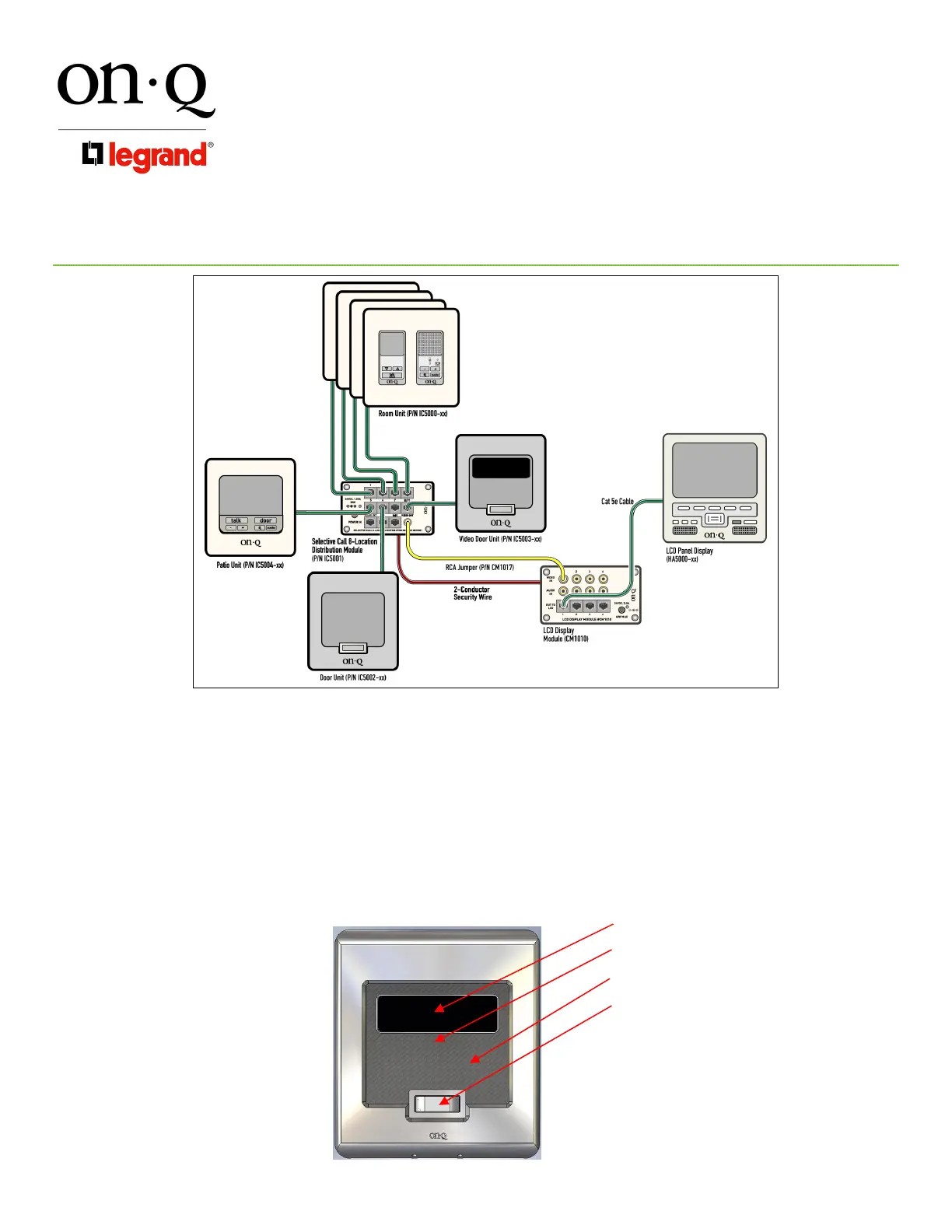

Please refer to Figure 7 to familiarize yourself with the basic operation of the Selective Call Video Door Unit.
Please refer to the Selective Call System Installation Manual (P/N 1308003) shipped with the Room Unit for
more detailed instructions on how to use any Selective Call Room Unit to configure and personalize the
Selective Call System. Refer to the Selective Call System User Manual (P/N 1308001) shipped with the
Selective Call Module to familiarize yourself with the operation of the Selective Call Intercom System.
NOTE: Refer to the Selective Intercom 8 Location Distribution Module Information Sheet (IS-0385)
shipped with the Distribution Module for information regarding the support for electronic door release
functionality.
Figure 7
Door Chime Button: When a visitor
pushes this button, one of 20 selectable
Door Chimes will be heard throughout the
home at each active intercom unit. The
occupants of the home can then talk to that
Video Door Unit from any Room or enabled
Patio Unit. The visitor will hear the occupant
over the Video Door Unit speaker and be
able to talk to them over the Video Door Unit
microphone. The occupant may also choose
to release the electronic door latch (if
equipped) and let the visitor in.
Speaker
Microphone
Camera
Figure 6
