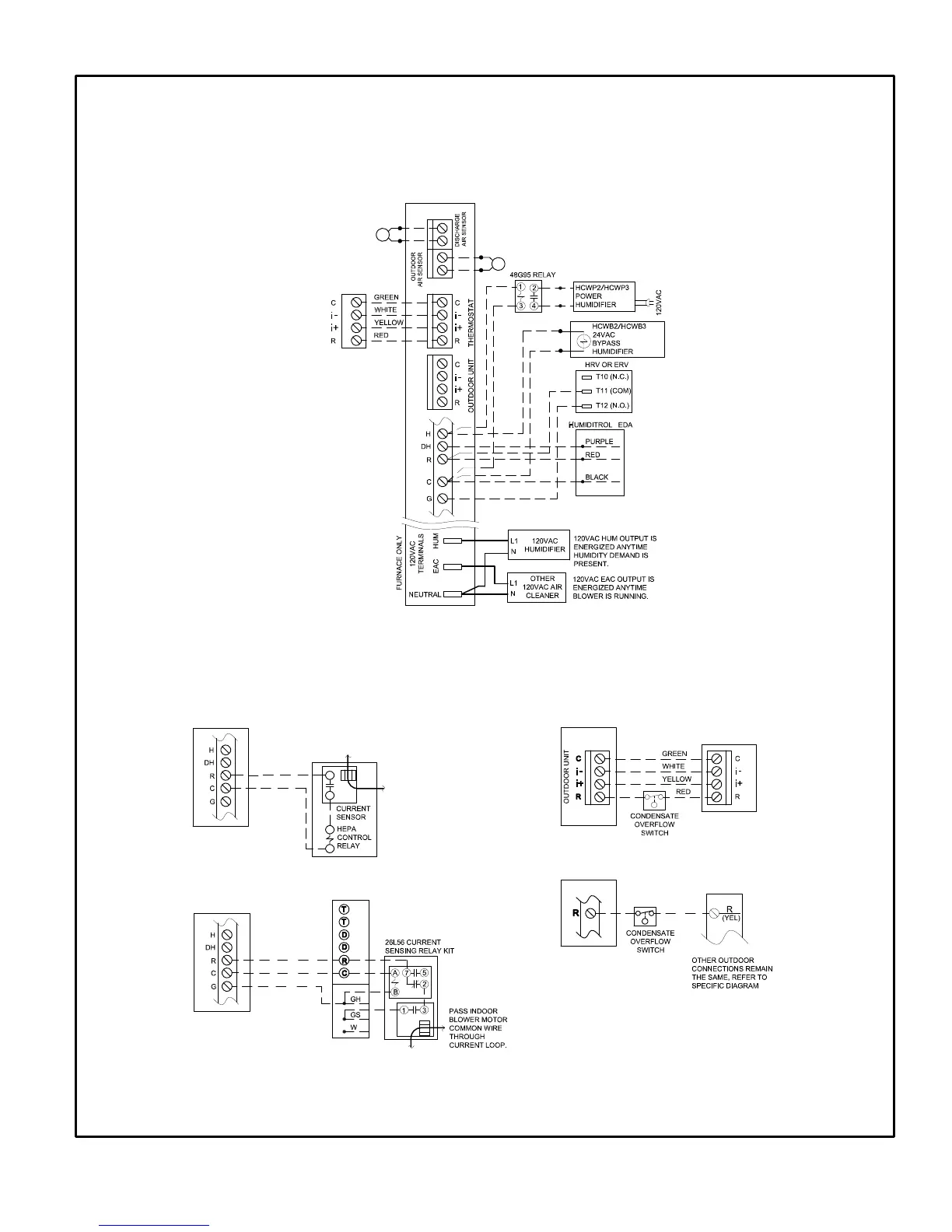

FIGURE 42
NOTE: 24V UV LIGHT
APPLICATIONS
icomfort furnace transformer will
not have adequate va to power 24v
uv light applications. An additional
transformer for UV light applications
is required.
icomfort Touch
THERMOSTAT
DISCHARGE AIR SENSOR (RE-
QUIRED FOR EVEN HEAT)
NOTE: icomfort T’STAT SENSES HUMIDITY & CONTROLS 24V
H" OUTPUT (& 120V H" OUTPUT) TO CYCLE HUMIDIFIER
BASED ON DEMAND. NO OTHER CONTROL OR HUMIDISTAT
REQUIRED.
OPTIONAL OUTDOOR AIR SENSOR FOR USE WITH HU-
MIDIFIER (IF NOT ALREADY IN THE SYSTEM FOR OTHER
FUNCTIONS. BUILT INTO ALL icomfort OUTDOOR UNITS).
Optional Accessories for use with any icomfort System
icomfort
ENABLED
G71MPP
FURNACE
HEPA BYPASS FILTER
X2680 HEPA
INTERLOCK KIT
PASS INDOOR BLOWER
MOTOR COMMON WIRE
THROUGH CURRENT LOOP.
SEE HEPA INTERLOCK KIT
FOR INSTALLATION DE-
TAILS
LVCS VENTILATION
CONTROL SYSTEM
SEE LVCS VENTILATION
INSTRUCTIONS FOR
DAMPER & SENSOR WIRING
icomfort
OUTDOOR AIR
CONDITIONING OR
HEAT PUMP UNIT
STANDARD
1 OR 2 STAGE
AC OR HP UNIT
icomfort
ENABLED
G71MPP
FURNACE
icomfort
ENABLED
G71MPP
FURNACE
icomfort
ENABLED
G71MPP
FURNACE
icomfort
ENABLED
G71MPP
FURNACE
