Electrical installation

Standard devices in the power range 15 ... 30 kW

Mains connection, DC supply



174

EDKVS9332X DE/EN/FR 8.0

5.5.2 Mains connection, DC supply

 Note!

ƒ If a mains filter or RFI filter is used and the cable length between mains/RFI

filter and drive controller exceeds 300 mm, install a shielded cable.

ƒ For DC−bus operation or DC supply, we recommend using shielded DC

cables.

+UG -UG

L1 L2

01 2

L1, L2, L3

+U , -U

5Nm

44 lb-in

}

9300std034

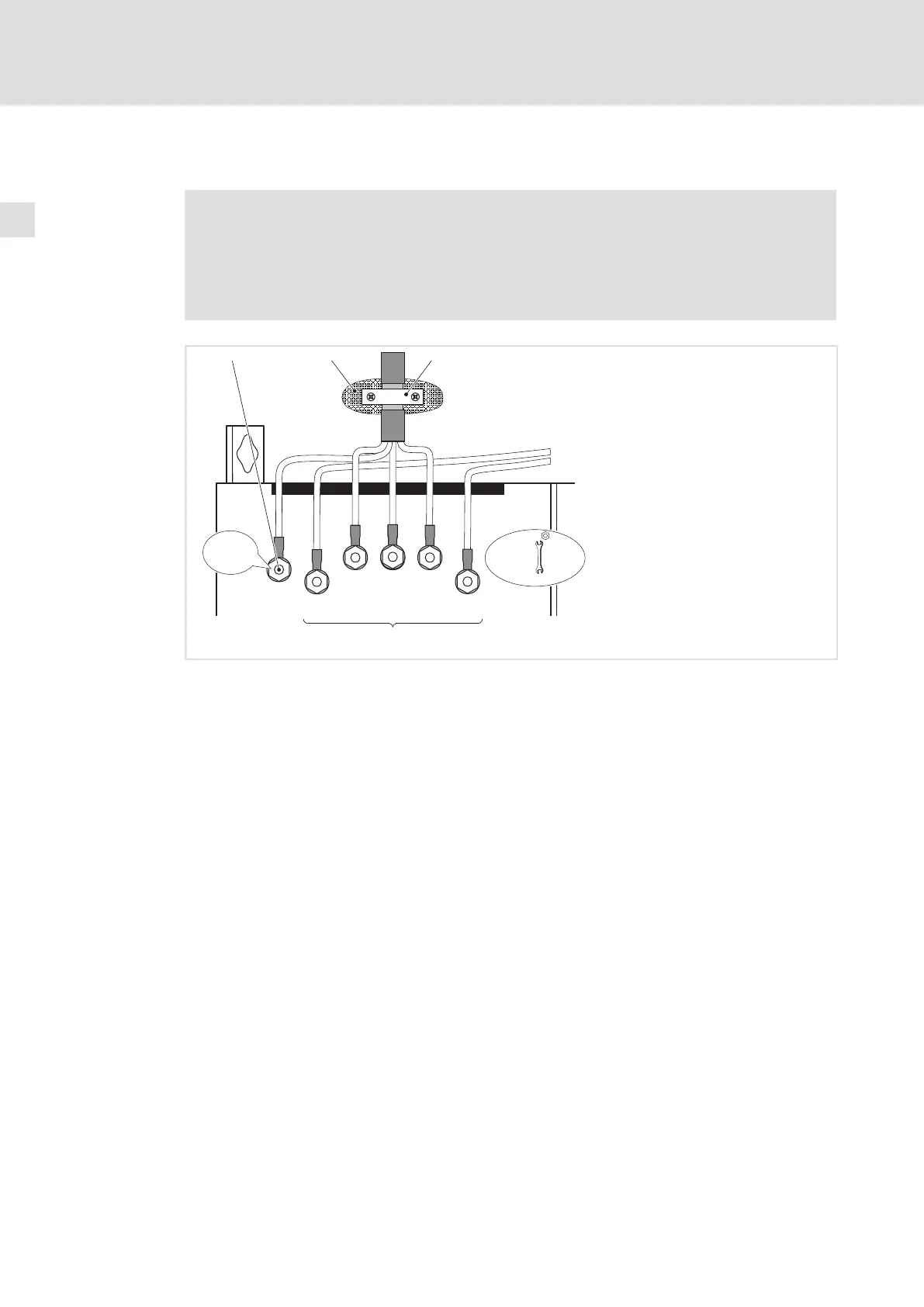

Fig. 5−9 Mains connection, DC supply for drive controllers 15 ... 30 kW

 PE stud

Connect PE cable with ring cable lug

 Conductive surface

 Shield clamp

Place shield with large surface on control cabinet mounting plate and fasten with shield

clamp (shield clamp is not part of the scope of supply)

To improve the shield connection, also place the shield on the PE stud

 Mains and DC bus connection

L1, L2, L3: Connection of mains cable with ring cable lugs

, −U

: Connection of DC−bus components or connection of the controller in the DC−bus

system (see system manual)
