12.14 CAN2Out
Function
This function block serves to transfer event−controlled or time−controlled process data
( 447) via the MotionBus (CAN).
ƒ A sync telegram is not required.
ƒ The process data is transmitted when a value within the eight bytes of user data has
changed (event−controlled) or with the cycle time set under C0356/2
(time−controlled, ( 176).
Byte
1
Byte
2
Byte
3
Byte
4
Byte
5
Byte
6
Byte
7
Byte
8
16 Bit
LowWord
16 Bit
HighWord
16 Bit
16 Bit
16 Bit
16 Bit
C6255
0
0
1
1
C6251/2
C6231/6
C6231/7
C6231/8
C6231/5
CAN2Out
C6230/6
C6230/7
C6230/8
C6250/2
C6230/5
CAN2Out-W1
CAN2Out-W0
CAN2Out-W3
CAN2Out-W0/W1
CAN2Out-W2
X4
CG
CH
CL
ECSXA214

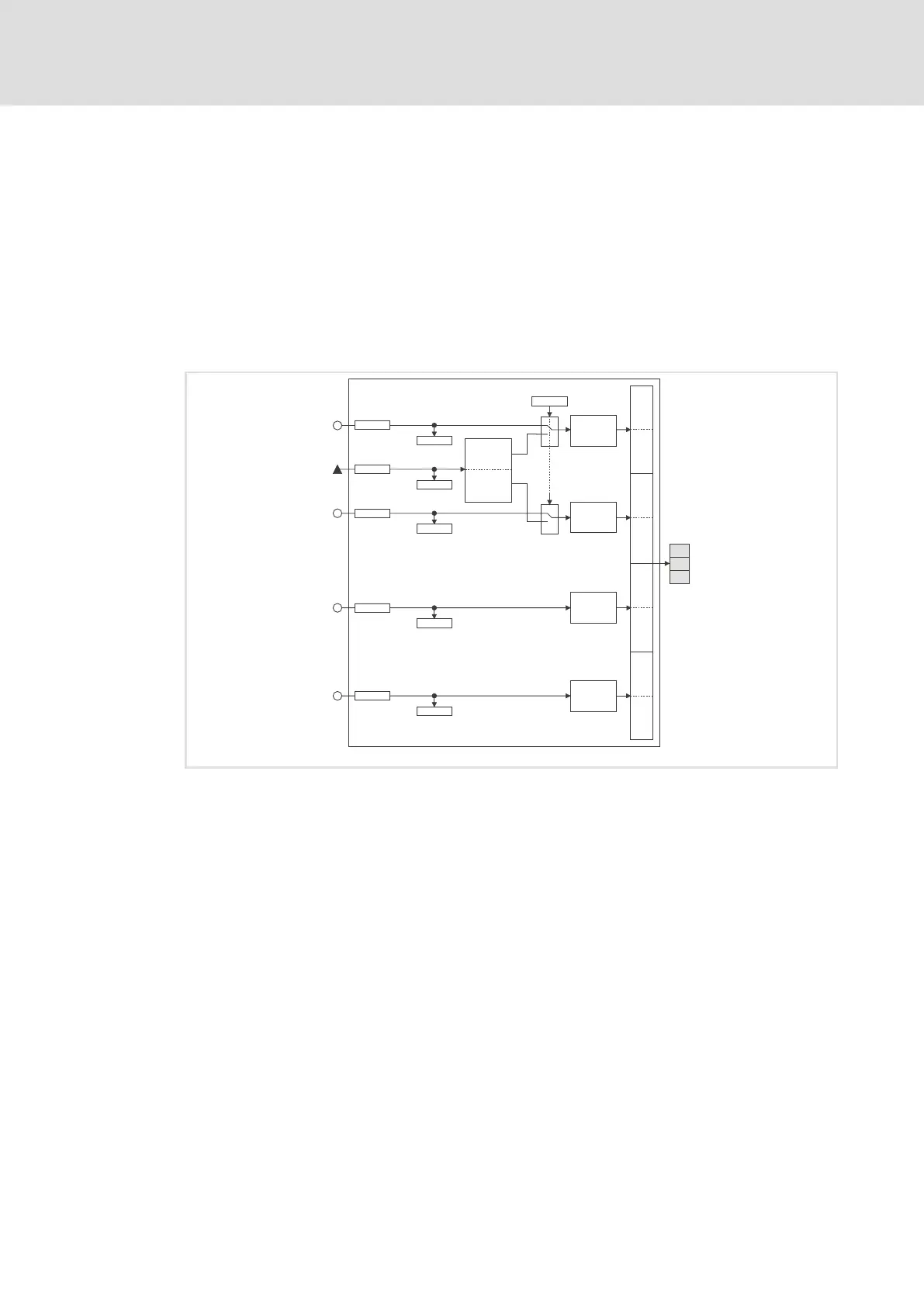

Fig. 12−14 CAN2Out function block
