Mechanical installation
Important notes
4
19
Lenze ¯ MA 12.0014 ¯ 5.1
4 Mechanical installation
4.1 Important notes
¯ Use load carrying equipment for transport!
¯ Before the transport
check that all components are safely mounted,
fasten all transport aids (eye bolts or support plates).
} Danger!
Danger due to toppling or falling loads!
¯ The payload of the hoists and load handling devices must at least
correspond to the weight of the load.
¯ Secure the load handling device so that it won’t slip from its position.
¯ The load must be secured in such a way that it cannot topple or fall
down.
¯ Do not stay under a pending load!
4.2 Transport
} Danger!
The motors attached to the gearbox are partially equipped with eyebolts.
They are exclusively determined for mounting/dismounting the motor to
the gearbox and must not be used for the complete geared motor!
The position of the transport holes can be gathered from the illustrations shown in the
following. As a standard, the G50BB145 ... G50BB243 size gearbox is provided with
transport holes for eye bolts complying with DIN 580 in the gearbox cover. The eye bolt
is not included in the scope of supply!
For the smaller drives with solid shafts, the output shaft thread can be used or the drive
is transported using a securing rope. The rope should be wrapped around the round area
between the motor−gearbox interface.
The gearboxes of sizes G50BB280 ... G50BB320 can be lifted at the ear that is cast on to
the housing.
G50A0B45 ... G50BB124 G50BB145 ... G50BB243 G50BB280 ... G50BB320
1.
2.

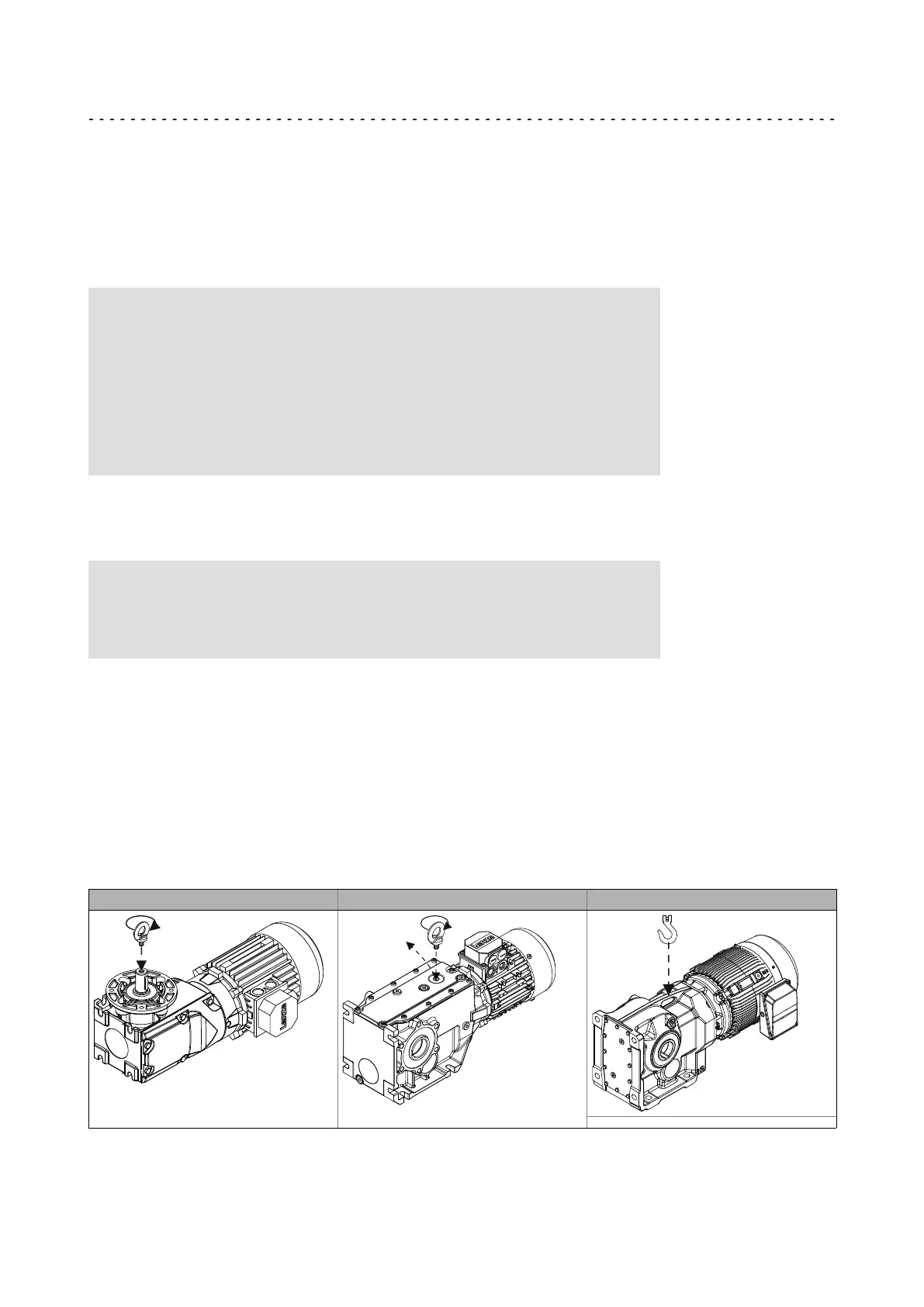

Fig. 1 Positioning of the eye bolt for transporting the complete drive system
