Lenze L-force 9400 Hardware Manual

Regenerative power supply modules
Rated data
Mains filters for regenerative power supply modules
6

302
EDS94SPP101 EN 10.2
6.3.8 Mains filters for regenerative power supply modules
When using the mains filters assigned, conditions must be observed for compliance with
EMC class C2:
ƒ The measures for the use on IT systems must be applied to all axis modules in the
interconnection (separation of internal filter components from PE, ( 355)).
ƒ The maximum sum total of all motor cable lengths ( l
mot
) for the filter used must
be observed.
Motor cable lengths in the interconnection
The assigned filters are designed for  l
mot
(E94AZMR...SDB: 60 m (= 6 x 10 m), E94AZMR...LDB: 500 m (= 10 x 50 m)).
For a different number of axis modules,  l
mot
can be determined from the following
diagrams.
25
30 35
40
45
50
55
60 65 70
2
4
6
8
10
12
14
16
18
20
Σl
[m]
n
SSP94FF015 B

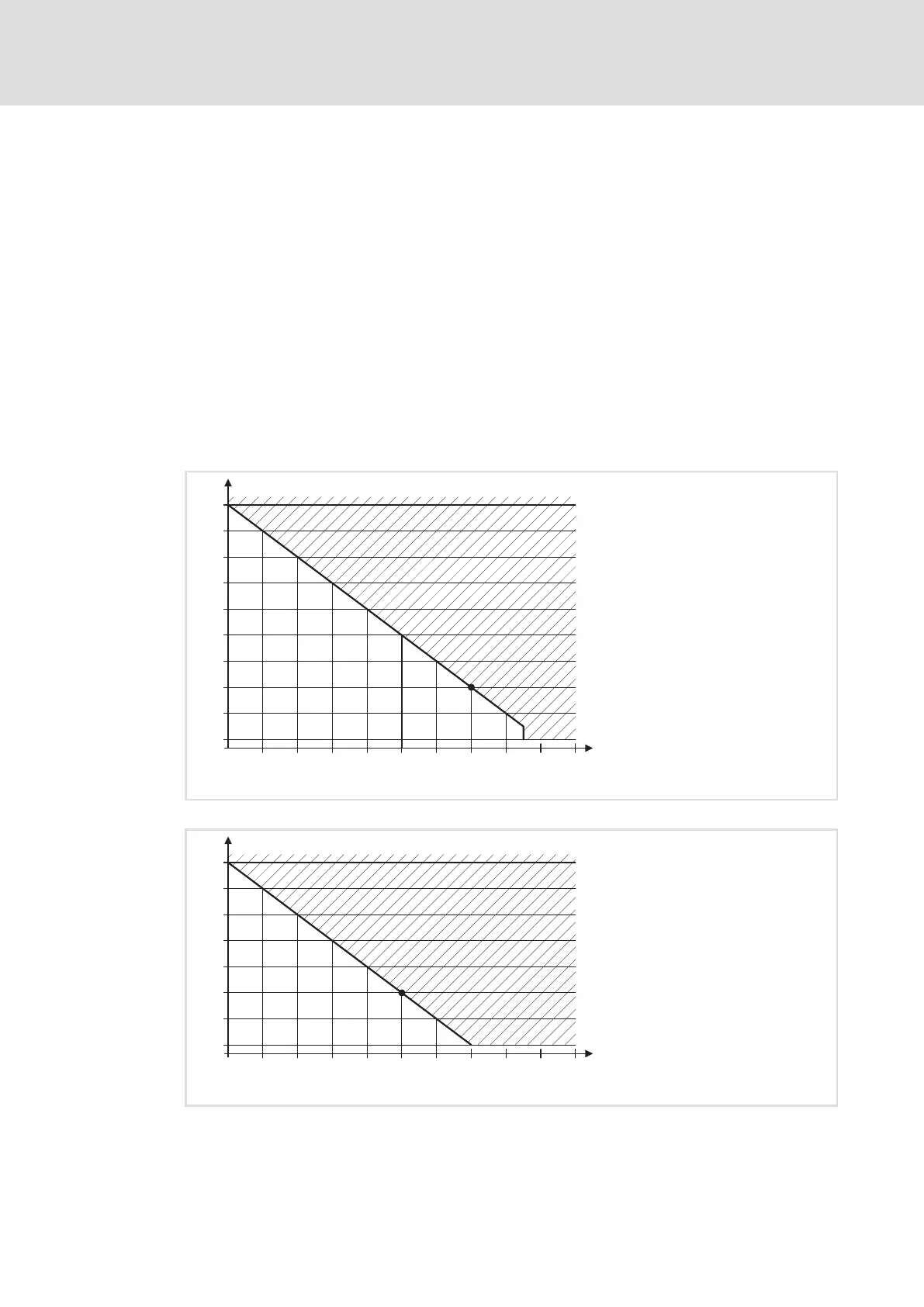

Fig. 6−5 Filter E94AZMP...SDB (short distance): total motor lengths according to number of axis modules
6
8
10
12
14
16
18
20
n
250
300 350
400
450
500
550
600 650 700
Σl
[m]
SSP94FF015 A
Fig. 6−6 Filter E94AZMP...LDB (long distance): total motor lengths according to axis modules
