Accessories (overview)
Filters
Mains filters for single−axis controllers
8
544
EDS94SPP101 EN 10.2
Filters Mains filters for single−axis controllers
8.10.2 Mains filters for power supply modules E94AZMPxxxx (8 ... 29 A)
Assignment of filters to standard devices
Mains filter DC power supply module
Type Device size Type Device size
E94AZMP0084 2 E94APNE0104 1
E94AZMP0294 3 E94APNE0364 3
E94AZMP0294 3 E70ACPSx0304x 1

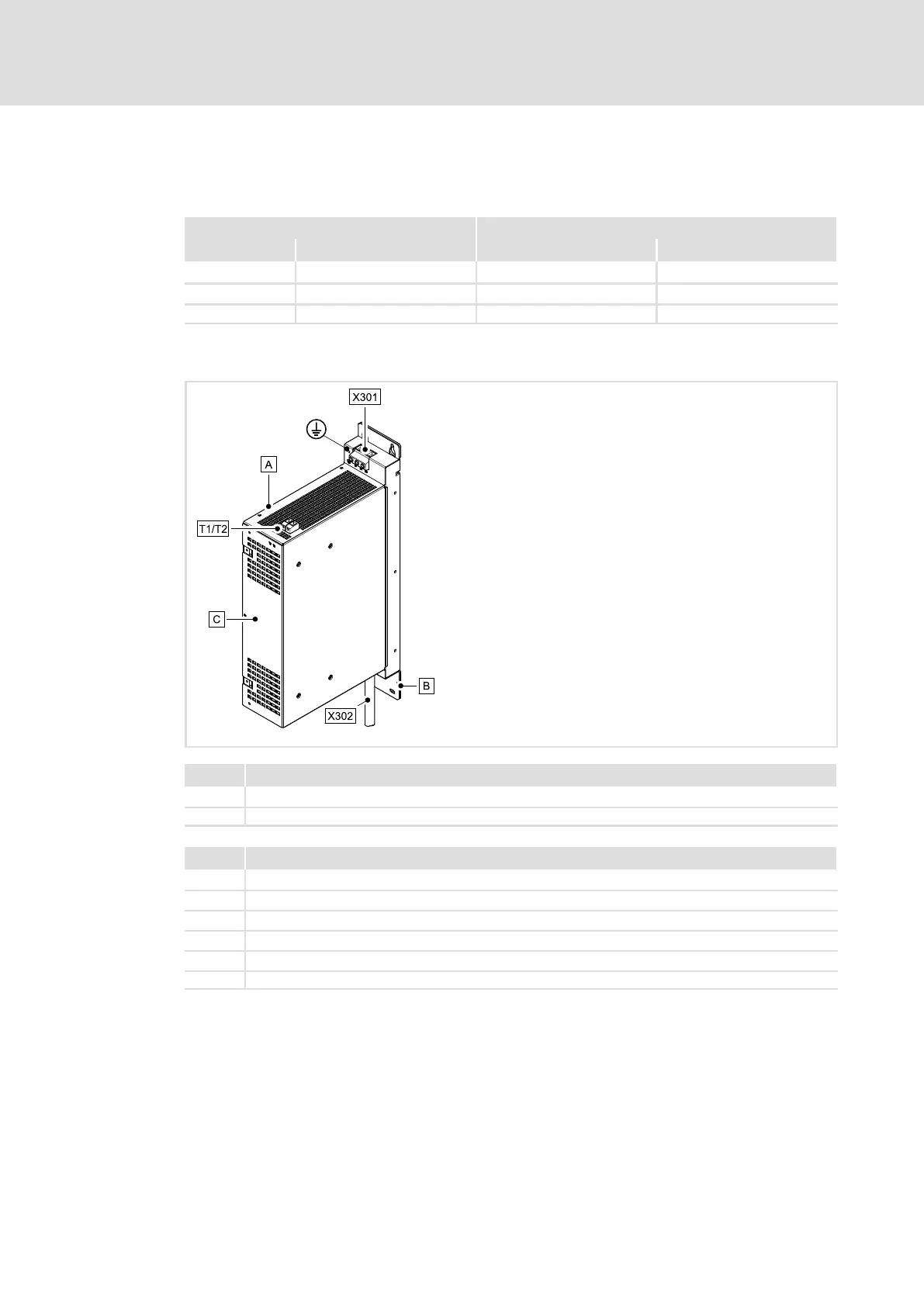

Elements on the filter
SSP94NF101
Pos. Description
Mains filter E94AZMPxxxx
Mounting Instructions
Pos. Description
Connection of PE conductor
X301 Mains terminal L1 ... L3
X302 Connection cable to DC power supply module, four−core
T1/T2 Thermal contact terminal T1, T2
Mounting aid for installation backplane
Nameplate
