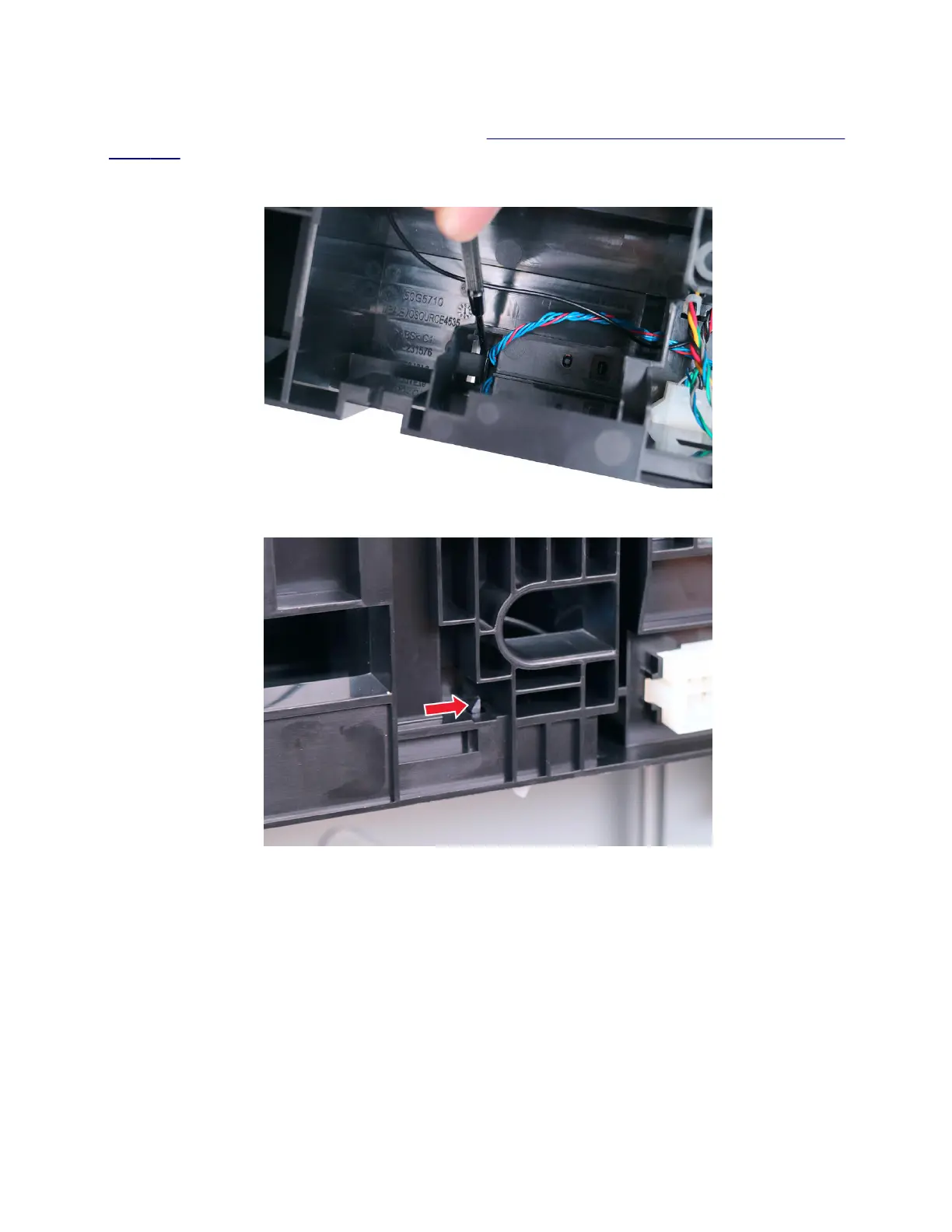

Sensor (250‑ and 550-sheet tray paper size) removal
1 Remove the 250‑ and 550-sheet tray left cover. See “250‑ and 550-sheet tray left cover removal” on
page 496.
2 From the left side, pry the latch to release the sensor cover.
3 From the bottom side, press the latch to release the sensor.
4064
Parts removal
512
