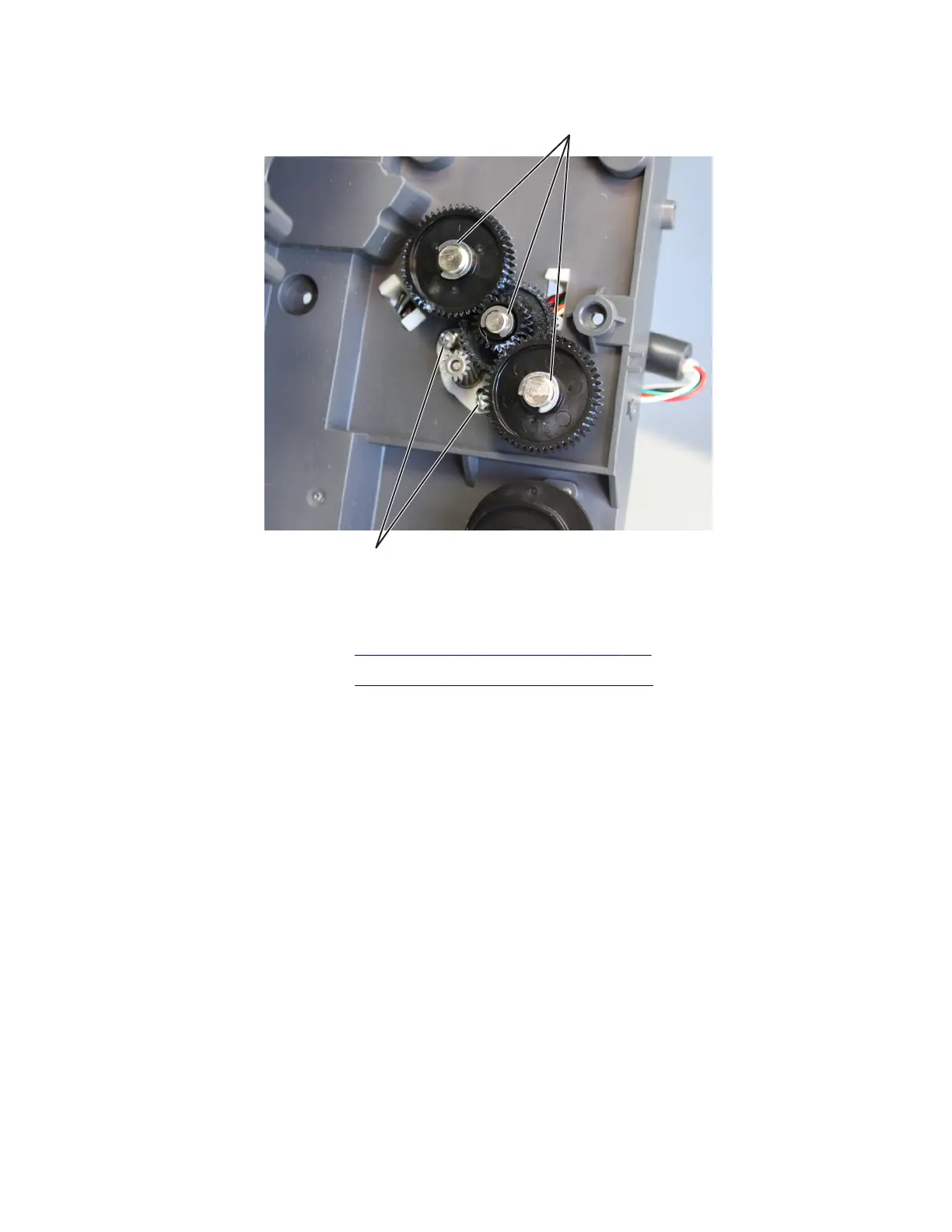

7 Remove the two screws (C), and then remove the motor.
B
C
Sensor (HCOE diverter) removal
1 Remove the HCOE rear door. See “HCOE rear door removal” on page 546.
2 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
4064
Parts removal
570
