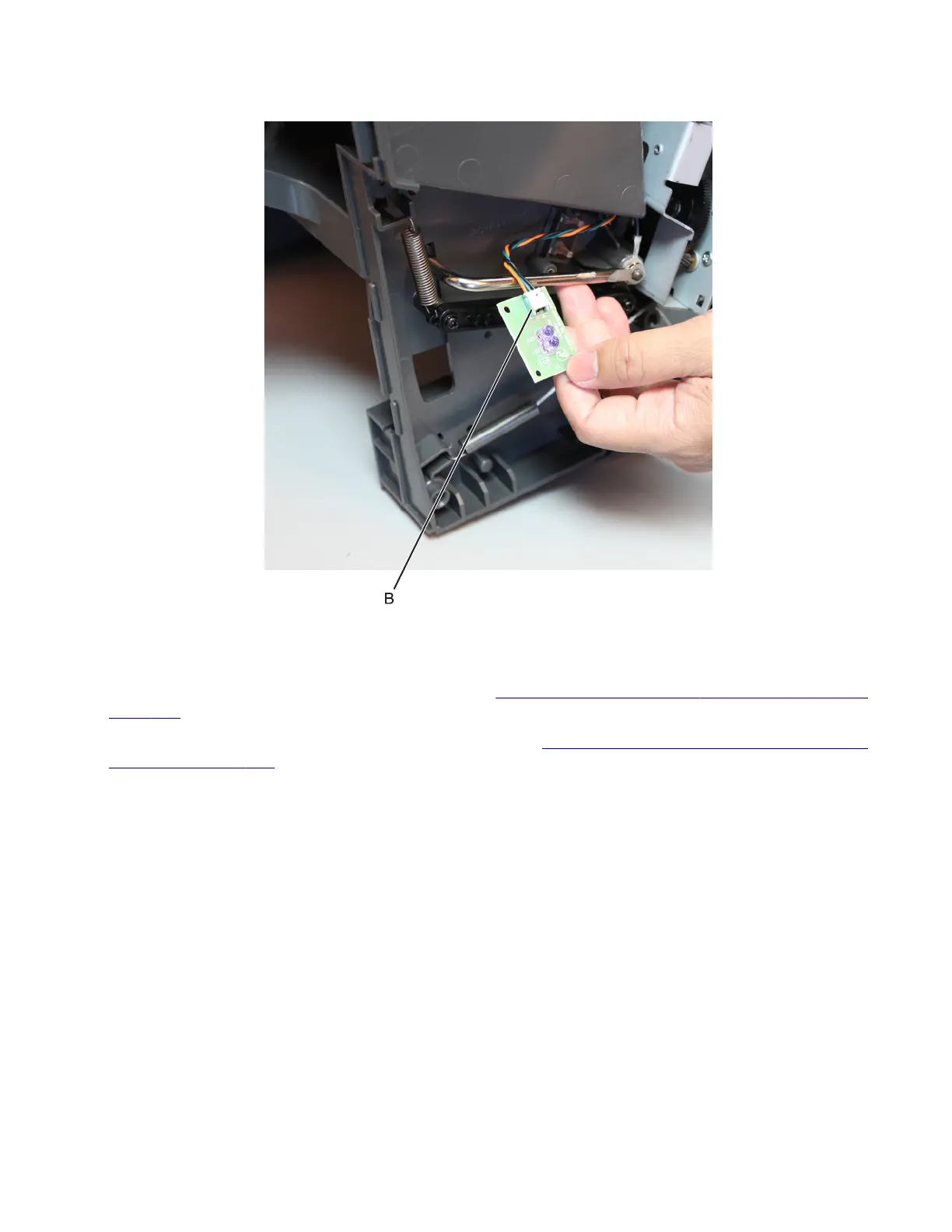

3 Disconnect the cable (B), and remove the sensor.
Sensor (SHPF bin full receive) removal
1 Remove the staple, hole punch
finisher
left cover. See “Staple, hole punch
finisher
left cover removal” on
page 699.
2 Remove the staple, hole punch finisher controller board. See “Staple, hole punch finisher controller board
removal” on page 705.
4064
Parts removal
735
