Optional high capacity output expander operation

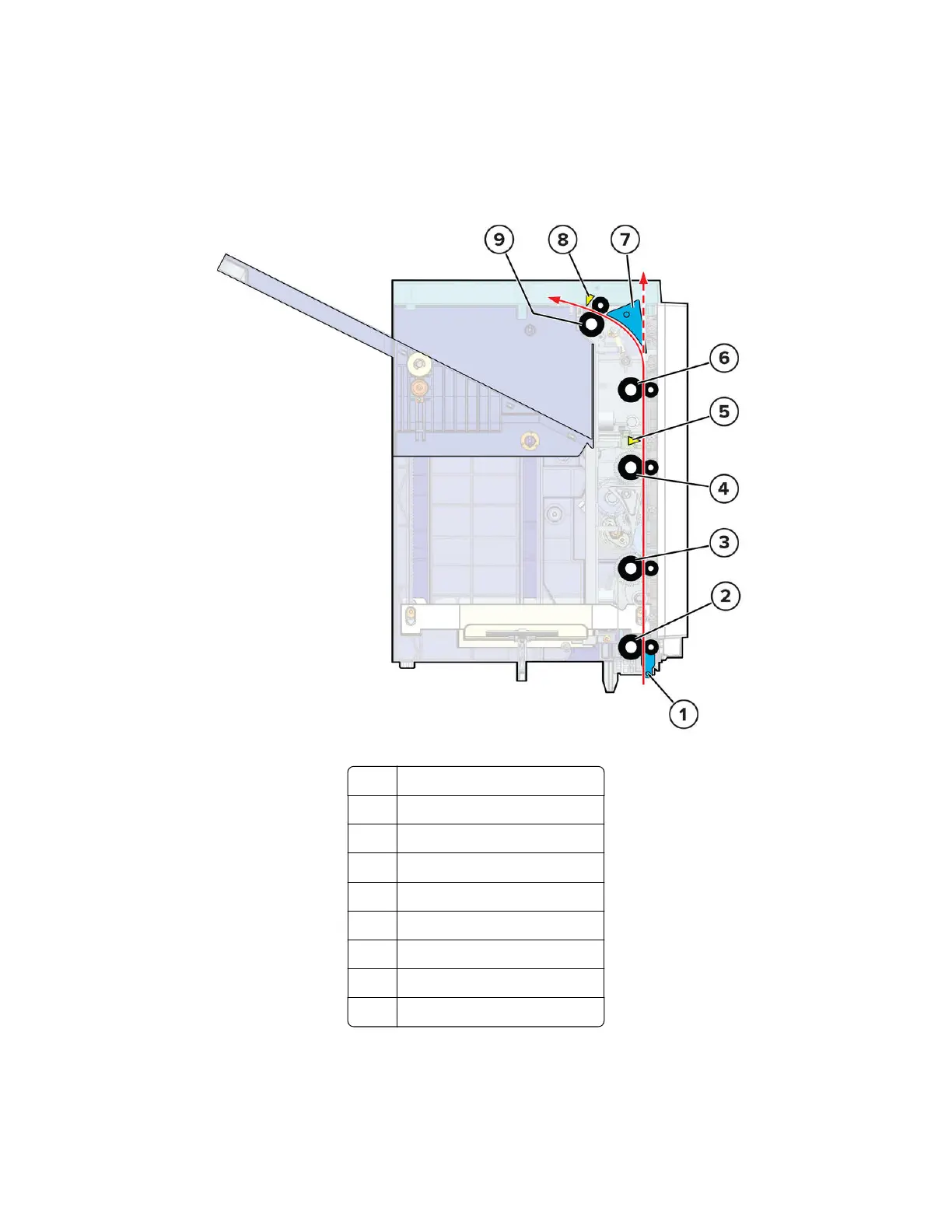

High capacity output expander paper path
1 Diverter plunger
2 HCOE transport roller 1
3 HCOE transport roller 2
4 HCOE transport roller 3
5 Sensor (HCOE pass‑through)
6 HCOE transport roller 4
7 Diverter
8 Sensor (HCOE bin full)
9 HCOE exit roller
The high capacity output expander increases the output capacity of the printer. Rollers along the paper path
control the movement of the paper depending on the destination bin.
