EXTERNAL EQUIPMENT SETUP
■ To avoid damaging any equipment, never plug in any power cords until you have nished connecting all equipment.
HD Receiver Setup
■ This TV can receive Digital RF/Cable signals without an external digital set-top box. However, if you do receive
digital signals from a digital set-top box or other digital external device, refer to the diagram as shown below.

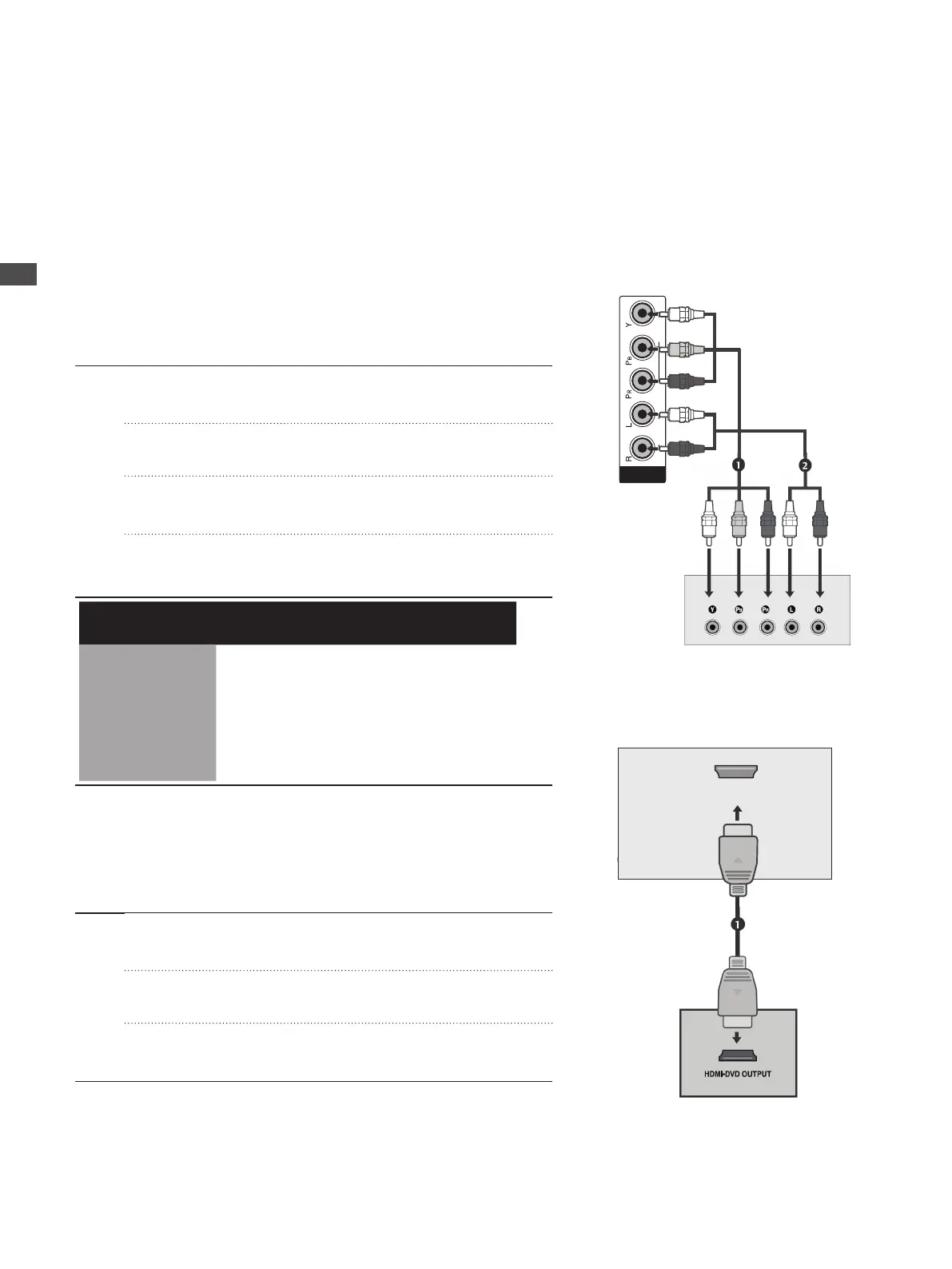

Connecting with a component cable

Connect the video outputs (Y, P
B
, P
R
) of the digital set-top
box to the COMPONENT IN VIDEO jacks on the TV.

Connect the audio output of the digital set-top box to the
COMPONENT IN AUDIO jacks on the TV.

Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)

Select Component input source using the INPUT button on
the remote control.
Signal Component HDMI
480i Yes No
576i Yes Yes
480p/576p Yes Yes
720p/1080i Yes Yes
1080p Yes Yes
Connecting a set-top box with an HDMI cable

Connect the HDMI output of the digital set-top box to the
HDMI IN1(DVI) or HDMI IN 2 jack on the TV.

Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)

Select HDMI1 or HDMI2 input source using the INPUT
button on the remote control.
COMPONENT IN
VIDEO
AUDIO
HDMI IN 1
(DVI)
16
EXTERNAL EQUIPMENT SETUP

LG 19LG3000 Specifications

General

Teletext function	Yes
RMS rated power	6 W
Number of speakers	2
Equalizer bands quantity	5
Audio (L/R) in	1
Product color	Black
LED indicators	Stand-by
HD type	WXGA
Display diagonal	19 \
Display brightness	380 cd/m²
Display resolution	1440 x 900 pixels
Display technology	LCD
Native aspect ratio	16:9
Viewing angle, vertical	170 °
Viewing angle, horizontal	160 °
Power consumption (standby)	1 W
Power consumption (typical)	56 W

Weight and Dimensions

Depth (with stand)	189.2 mm
Width (with stand)	458.8 mm
Height (with stand)	391 mm
Weight (with stand)	5020 g
Depth (without stand)	69 mm
Height (without stand)	344.5 mm
Weight (without stand)	4760 g
