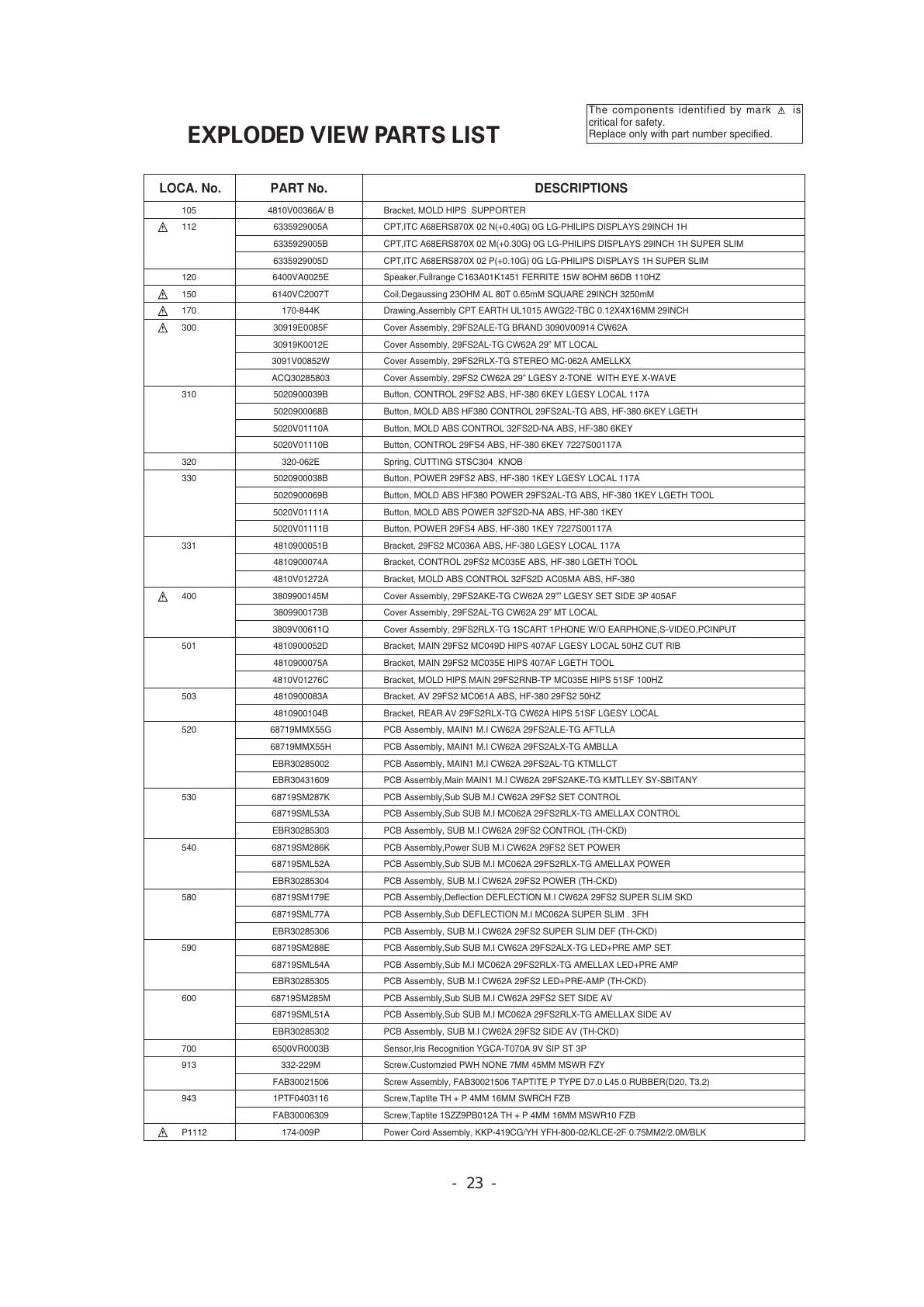

EXPLODED VIEW PARTS LIST
LOCA. No. PART No. DESCRIPTIONS
105 4810V00366A/ B Bracket, MOLD HIPS SUPPORTER
112 6335929005A CPT,ITC A68ERS870X 02 N(+0.40G) 0G LG-PHILIPS DISPLAYS 29INCH 1H
6335929005B CPT,ITC A68ERS870X 02 M(+0.30G) 0G LG-PHILIPS DISPLAYS 29INCH 1H SUPER SLIM
6335929005D CPT,ITC A68ERS870X 02 P(+0.10G) 0G LG-PHILIPS DISPLAYS 1H SUPER SLIM
120 6400VA0025E Speaker,Fullrange C163A01K1451 FERRITE 15W 8OHM 86DB 110HZ
150 6140VC2007T Coil,Degaussing 23OHM AL 80T 0.65mM SQUARE 29INCH 3250mM
170 170-844K Drawing,Assembly CPT EARTH UL1015 AWG22-TBC 0.12X4X16MM 29INCH
300 30919E0085F Cover Assembly, 29FS2ALE-TG BRAND 3090V00914 CW62A
30919K0012E Cover Assembly, 29FS2AL-TG CW62A 29” MT LOCAL
3091V00852W Cover Assembly, 29FS2RLX-TG STEREO MC-062A AMELLKX
ACQ30285803 Cover Assembly, 29FS2 CW62A 29” LGESY 2-TONE WITH EYE X-WAVE
310 5020900039B Button, CONTROL 29FS2 ABS, HF-380 6KEY LGESY LOCAL 117A
5020900068B Button, MOLD ABS HF380 CONTROL 29FS2AL-TG ABS, HF-380 6KEY LGETH
5020V01110A Button, MOLD ABS CONTROL 32FS2D-NA ABS, HF-380 6KEY
5020V01110B Button, CONTROL 29FS4 ABS, HF-380 6KEY 7227S00117A
320 320-062E Spring, CUTTING STSC304 KNOB
330 5020900038B Button, POWER 29FS2 ABS, HF-380 1KEY LGESY LOCAL 117A
5020900069B Button, MOLD ABS HF380 POWER 29FS2AL-TG ABS, HF-380 1KEY LGETH TOOL
5020V01111A Button, MOLD ABS POWER 32FS2D-NA ABS, HF-380 1KEY
5020V01111B Button, POWER 29FS4 ABS, HF-380 1KEY 7227S00117A
331 4810900051B Bracket, 29FS2 MC036A ABS, HF-380 LGESY LOCAL 117A
4810900074A Bracket, CONTROL 29FS2 MC035E ABS, HF-380 LGETH TOOL
4810V01272A Bracket, MOLD ABS CONTROL 32FS2D AC05MA ABS, HF-380
400 3809900145M Cover Assembly, 29FS2AKE-TG CW62A 29”” LGESY SET SIDE 3P 405AF
3809900173B Cover Assembly, 29FS2AL-TG CW62A 29” MT LOCAL
3809V00611Q Cover Assembly, 29FS2RLX-TG 1SCART 1PHONE W/O EARPHONE,S-VIDEO,PCINPUT
501 4810900052D Bracket, MAIN 29FS2 MC049D HIPS 407AF LGESY LOCAL 50HZ CUT RIB
4810900075A Bracket, MAIN 29FS2 MC035E HIPS 407AF LGETH TOOL
4810V01276C Bracket, MOLD HIPS MAIN 29FS2RNB-TP MC035E HIPS 51SF 100HZ
503 4810900083A Bracket, AV 29FS2 MC061A ABS, HF-380 29FS2 50HZ
4810900104B Bracket, REAR AV 29FS2RLX-TG CW62A HIPS 51SF LGESY LOCAL
520 68719MMX55G PCB Assembly, MAIN1 M.I CW62A 29FS2ALE-TG AFTLLA
68719MMX55H PCB Assembly, MAIN1 M.I CW62A 29FS2ALX-TG AMBLLA
EBR30285002 PCB Assembly, MAIN1 M.I CW62A 29FS2AL-TG KTMLLCT
EBR30431609 PCB Assembly,Main MAIN1 M.I CW62A 29FS2AKE-TG KMTLLEY SY-SBITANY
530 68719SM287K PCB Assembly,Sub SUB M.I CW62A 29FS2 SET CONTROL
68719SML53A PCB Assembly,Sub SUB M.I MC062A 29FS2RLX-TG AMELLAX CONTROL
EBR30285303 PCB Assembly, SUB M.I CW62A 29FS2 CONTROL (TH-CKD)
540 68719SM286K PCB Assembly,Power SUB M.I CW62A 29FS2 SET POWER
68719SML52A PCB Assembly,Sub SUB M.I MC062A 29FS2RLX-TG AMELLAX POWER
EBR30285304 PCB Assembly, SUB M.I CW62A 29FS2 POWER (TH-CKD)
580 68719SM179E PCB Assembly,Deflection DEFLECTION M.I CW62A 29FS2 SUPER SLIM SKD
68719SML77A PCB Assembly,Sub DEFLECTION M.I MC062A SUPER SLIM . 3FH
EBR30285306 PCB Assembly, SUB M.I CW62A 29FS2 SUPER SLIM DEF (TH-CKD)
590 68719SM288E PCB Assembly,Sub SUB M.I CW62A 29FS2ALX-TG LED+PRE AMP SET
68719SML54A PCB Assembly,Sub M.I MC062A 29FS2RLX-TG AMELLAX LED+PRE AMP
EBR30285305 PCB Assembly, SUB M.I CW62A 29FS2 LED+PRE-AMP (TH-CKD)
600 68719SM285M PCB Assembly,Sub SUB M.I CW62A 29FS2 SET SIDE AV
68719SML51A PCB Assembly,Sub SUB M.I MC062A 29FS2RLX-TG AMELLAX SIDE AV
EBR30285302 PCB Assembly, SUB M.I CW62A 29FS2 SIDE AV (TH-CKD)
700 6500VR0003B Sensor,Iris Recognition YGCA-T070A 9V SIP ST 3P
913 332-229M Screw,Customzied PWH NONE 7MM 45MM MSWR FZY
FAB30021506 Screw Assembly, FAB30021506 TAPTITE P TYPE D7.0 L45.0 RUBBER(D20, T3.2)
943 1PTF0403116 Screw,Taptite TH + P 4MM 16MM SWRCH FZB
FAB30006309 Screw,Taptite 1SZZ9PB012A TH + P 4MM 16MM MSWR10 FZB
P1112 174-009P Power Cord Assembly, KKP-419CG/YH YFH-800-02/KLCE-2F 0.75MM2/2.0M/BLK
The components identified by mark is
critical for safety.
Replace only with part number specified.
To Next Page
