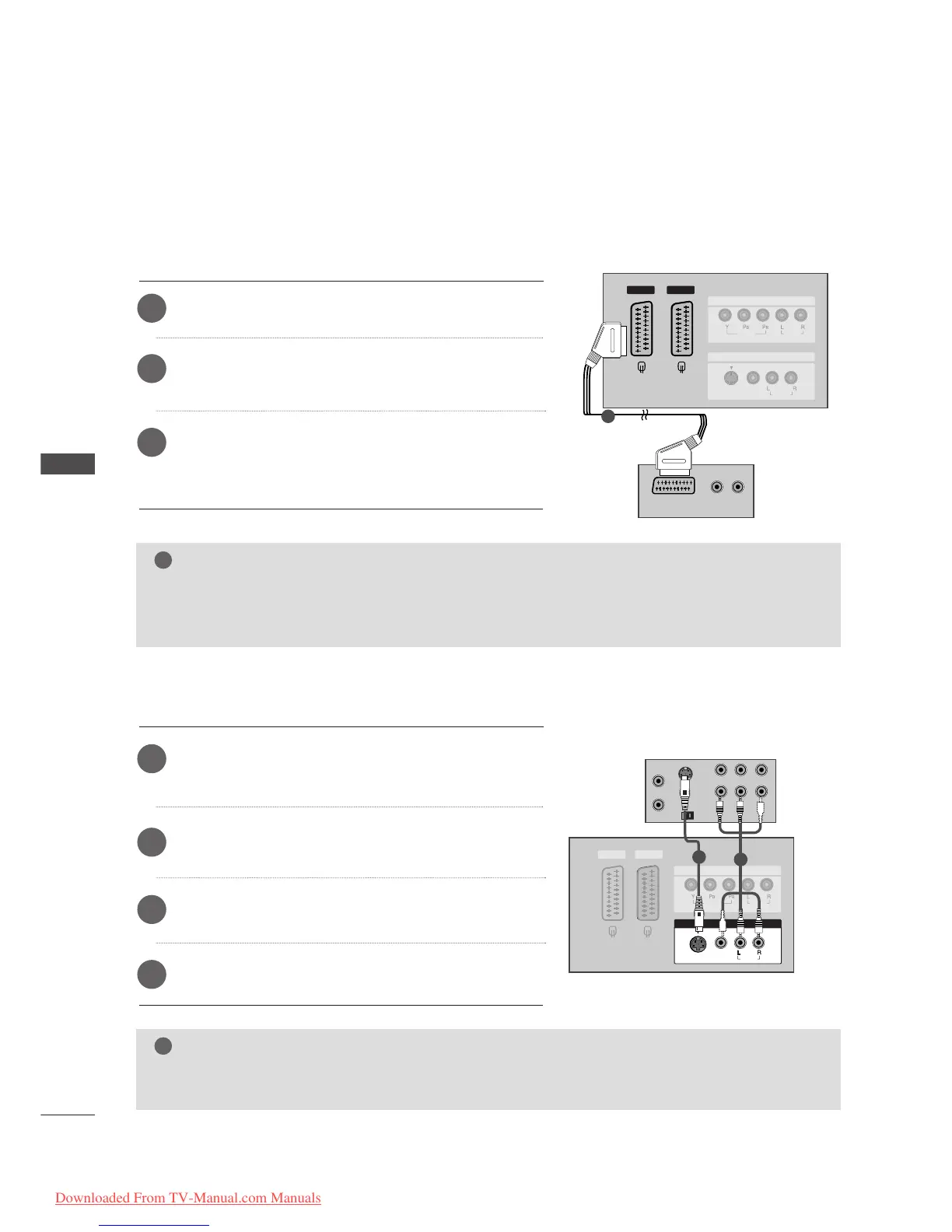

When connecting with a Euro Scart
Connect the Euro scart socket of the VCR to the
AAVV11
Euro scart socket on the set.
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
Select
AAVV11
input source with using the
IINNPPUUTT
button on
the remote control.
- If connected to
AAVV22
Euro scart socket, select
AV 2 input
source.
1
2
3
NOTE
GG
If the S-VIDEO(Y/C) signal is received through the Euro scart socket 2 (AV2), you must change to the S-
Video2 mode.
GG
If you want to use the EURO scart cable, you have to use the signal shielded Euro scart cable.
When connecting with an S-Video cable
Connect the S-VIDEO output of the VCR to the
SS--VVIIDDEEOO
input on the set. The picture quality is improved; com-
pared to normal composite (RCA cable) input.
Connect the audio outputs of the VCR to the
AAUUDDIIOO
input jacks on the set.
Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
1
2
3
Select AV 3 input source with using the
IINNPPUUTT
button on
the remote control.
4
NOTE
To Next Page
