LG 32LE5500 Service Manual

DDR2 SDRAM
MT47H128M8HQ
(1GBit)
IC400/401
NAND Flash
(4Gbit)
NAND04G_B2DN
IC101
LLV[0-5]±, LCLK±
RLV[0-5]±, RCLK±
NAND_DATA[0:7]
DDR0 Data[0:15]
DDR2 SDRAM
MT47H128M8HQ
(1GBit)
IC402/403
DDR0 Address[0:13]
BCM3556
IC100
SOE/POL/GSP/H_CONV/OPT_N, …
NVM
M24M01-HRMN6TP
1Mbit IC102
DDR1 Data[0:15]
DDR1 Address[0:13]
DDR3 SDRAM
H5TQ1G63BFR-12C
(1GBit)
IC8900
SCL3/SDA3
Mini-LVDS
P7400/1
LGE7378A
(URSA3)
IC9001
LVDS_TX_E/O[0-4]
SCL1/SDA1
DDR3 Address[0:12]
DDR3 Data[0:15]
LVDS_E/O_CLK
Serial Flash
W25L4005CM2I
IC9000
FRC_SPI
DDR2 SDRAM
MT47H128M8HQ
(1GBit)
IC400/401
DDR0 Data[0:15]
DDR2 SDRAM
MT47H128M8HQ
(1GBit)
IC402/403
DDR0 Address[0:13]
DDR1 Data[0:15]
DDR1 Address[0:13]

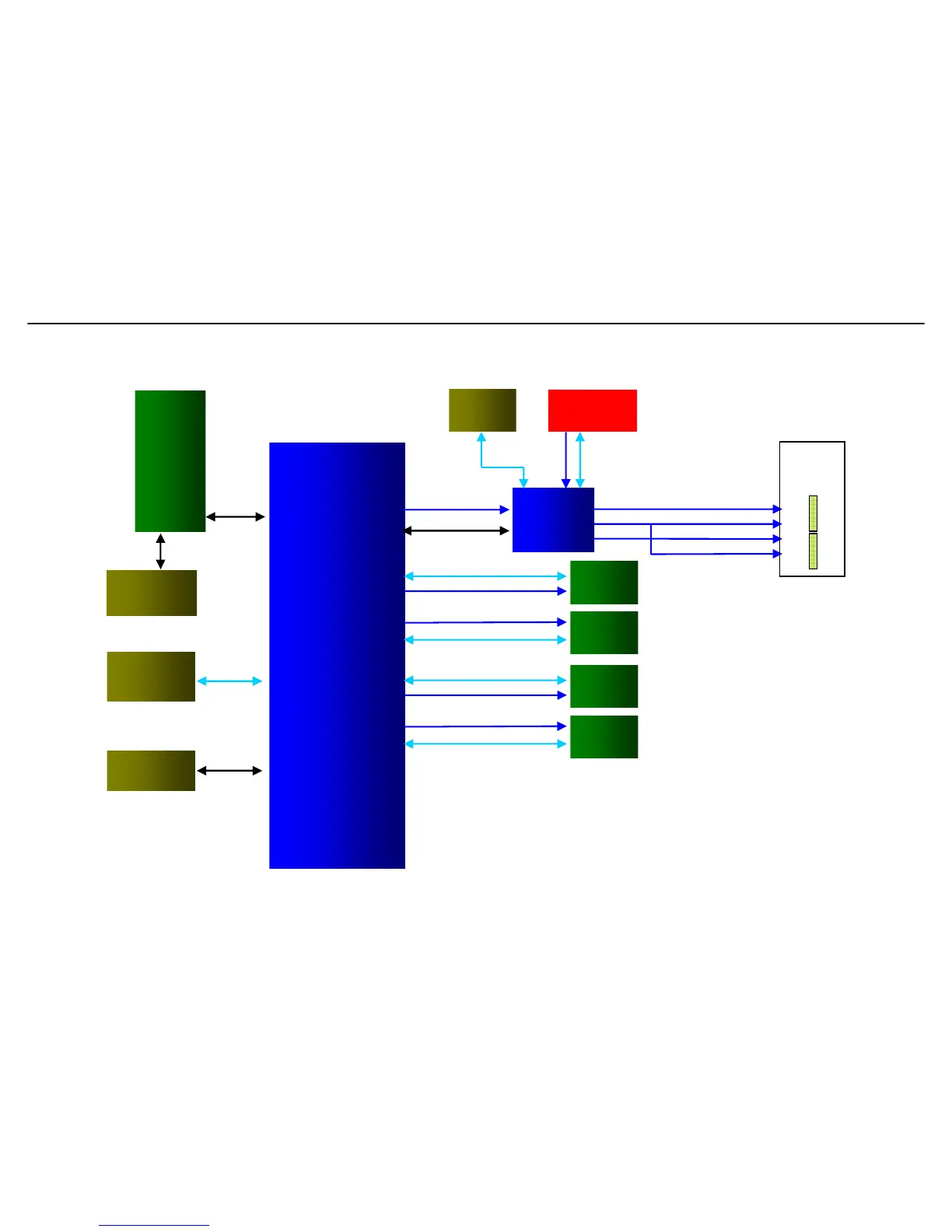

BCM High Block Diagram (Memory)
MICOM
UPD78F0513AGA
-GAM-AX
IC8101
SCL1/SDA1
MICOM EEPROM
M24C16-WMN6T
16Kbit
IC8100
NEC_EEPROM_SCL/SDA
Copyright ⓒ 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

LG 32LE5500 Specifications

General

Game mode	Yes
Audio formats supported	MP3
Video formats supported	DAT, DIVX, MKV, MP4, MPEG, MPG, TP, TRP, TS, VOB
Display language	31
HDMI ports quantity	3
USB 2.0 ports quantity	2
Digital audio optical out	1
LED indicators	Stand-by
Panel mounting interface	200 x 100 mm
Sustainability certificates	ENERGY STAR
Response time	2.4 ms
Display diagonal	32 \
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Contrast ratio (dynamic)	5000000:1
RMS rated power	20 W

Weight and Dimensions

Depth (with stand)	221 mm
Width (with stand)	786 mm
Height (with stand)	558 mm
Weight (with stand)	12700 g
Depth (without stand)	40 mm
Height (without stand)	500 mm
Weight (without stand)	10500 g
