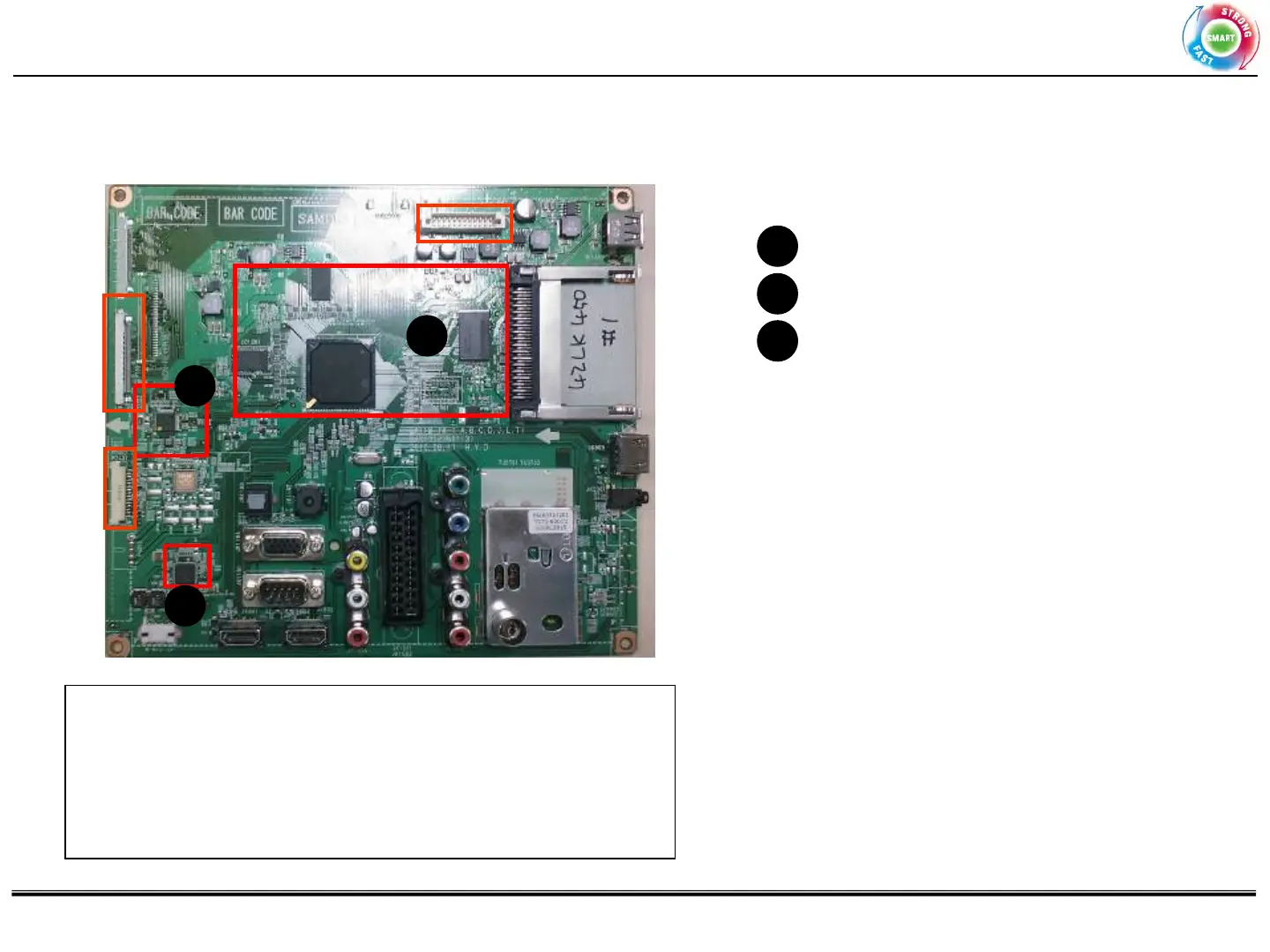

Main PCB
1
Main processor, DDR Memory
Flash Memory
2
3
Micom for Key/IR sensing
Audio AMP (10W+10W)
1
2
3
To LCD Module
* 32/37/42/47LK450_S7 Reused (’11)
Main IC : LGE101_Mstar
Tuner Type : TDTJ-S001D (DVB-T/C)
Display Type (Resolution) : LCD TV (1920 x 1080)
Interface : HDMI 3EA , Component 1EA, AV 1EA, USB 1EA
Difference : Without FRC, HDMI Position , Resolution , Interface, Wafer
Position (Sub)
32/37/42/47LK450
(
50HZ
)
LVDS
IR
Power
