MAKING CONNECTIONS
Composite Connection

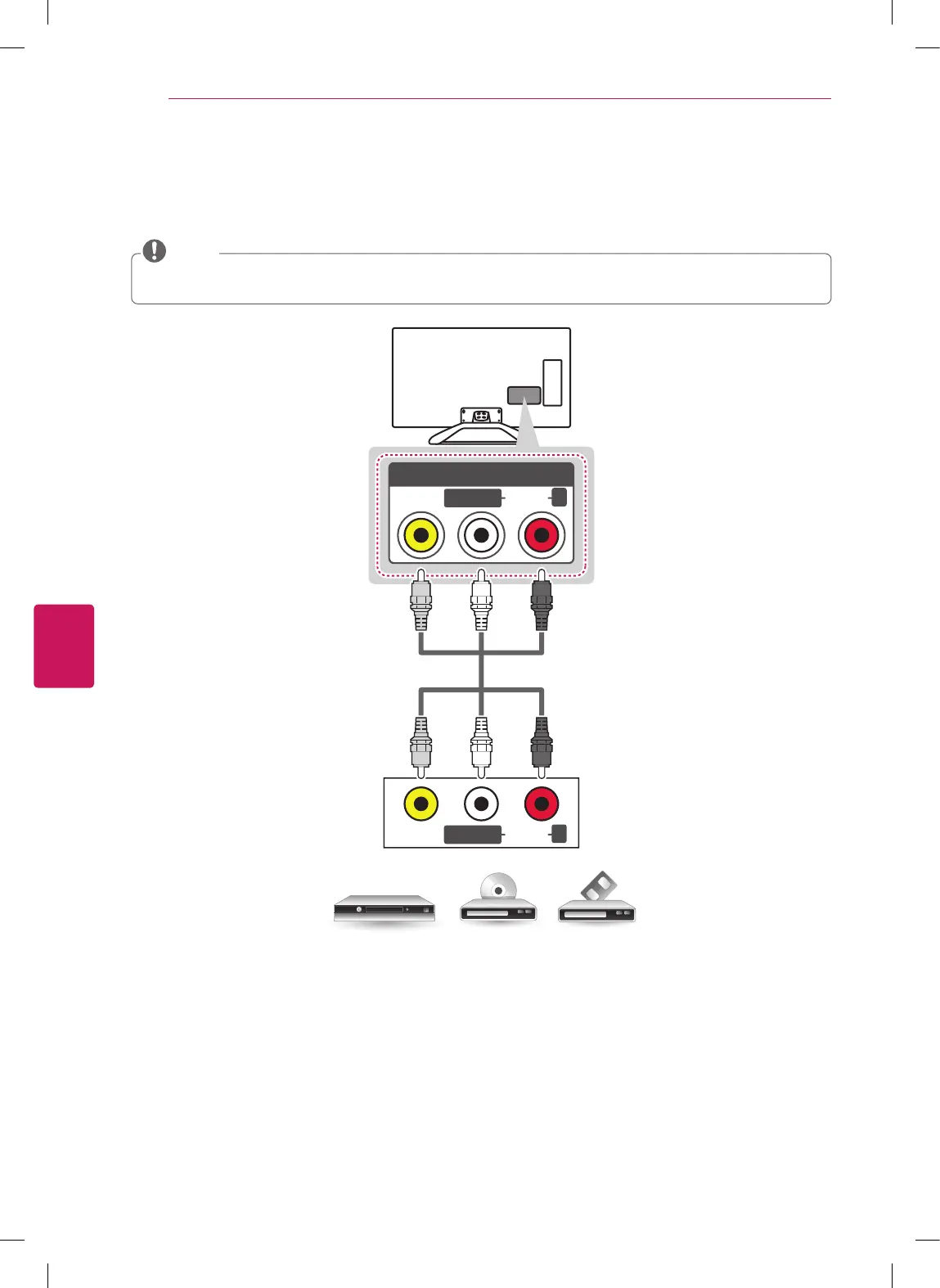

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
the composite cable as shown in the following illustration.
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
Check to ensure the cables are matched with the corresponding color connection.
NOTE
VCR / DVD / Blu-Ray / HD Cable Box
VIDEO
R
AUDIO
L/MONO
(*Not Provided)
YELLO
W
RED
WHITE
YELLO
W
RED
WHITE
AV IN 2
VIDEO
R
AUDIO
L/MONO
To Next Page
