CONNECTIONS & SETUP
20
ANTENNA
OR CABLE CONNECTION
CONNECTIONS & SETUP

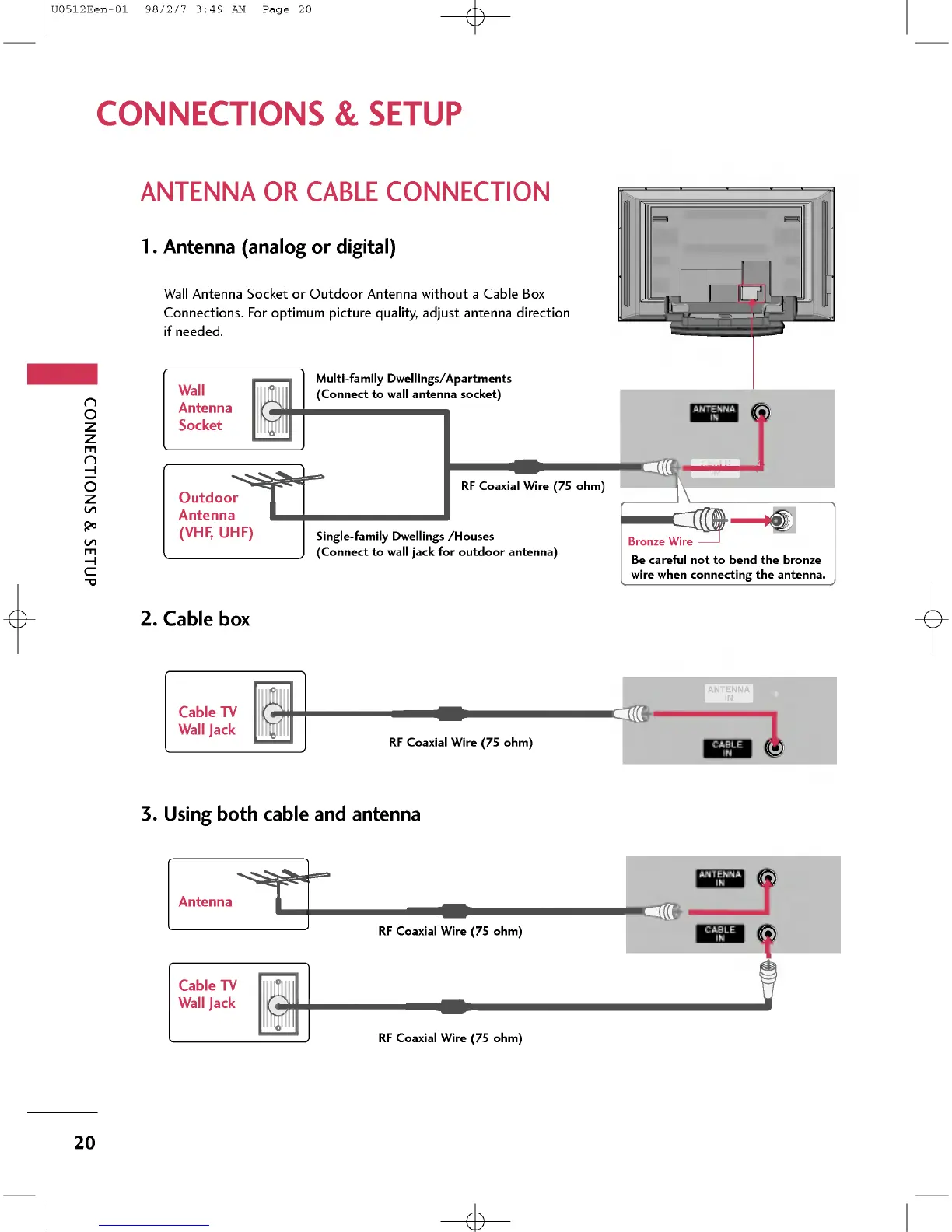

1.
Antenna
(analog
or
digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connections. For
optimum picture quality, adjust
antenna direction
if needed.
ANTENNA
IN
CABLE
ANTENNA
IN
CABLE
IN
ANTENNA
IN
CABLE
IN
2.
Cable box
3.
Using
both cable and antenna
Multi-family Dwellings/Apartments
(Connect
to wall antenna
socket)
Single-family Dwellings
/Houses
(Connect
to wall
jack
for outdoor
antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire
(75 ohm)
Bronze Wire
Be careful not to bend the bronze
wire when
connecting
the antenna.
Cable
TV
Wall
Jack
Antenna
Cable
TV
Wall
Jack
RF Coaxial Wire
(75 ohm)
RF Coaxial Wire
(75 ohm)
RF Coaxial Wire
(75 ohm)
U0512Een-01
98/2/7
3:49 AM
Page
20
