INSTALLATION
15
ATTACHING THE TV TO A WALL
■
Image shown may be somewhat different from your TV.
Set it up close to the wall so the product doesn’t fall over when it is pushed backwards.
The instructions shown below is a safer way to set up the product, which is to fix it on the wall so the product
doesn’t fall over when it is pulled in the forward direction. It will prevent the product from falling forward and
hurting people. It will also prevent the product from damage caused by fall. Please make sure that children
don’t climb on or hang from the product.
■

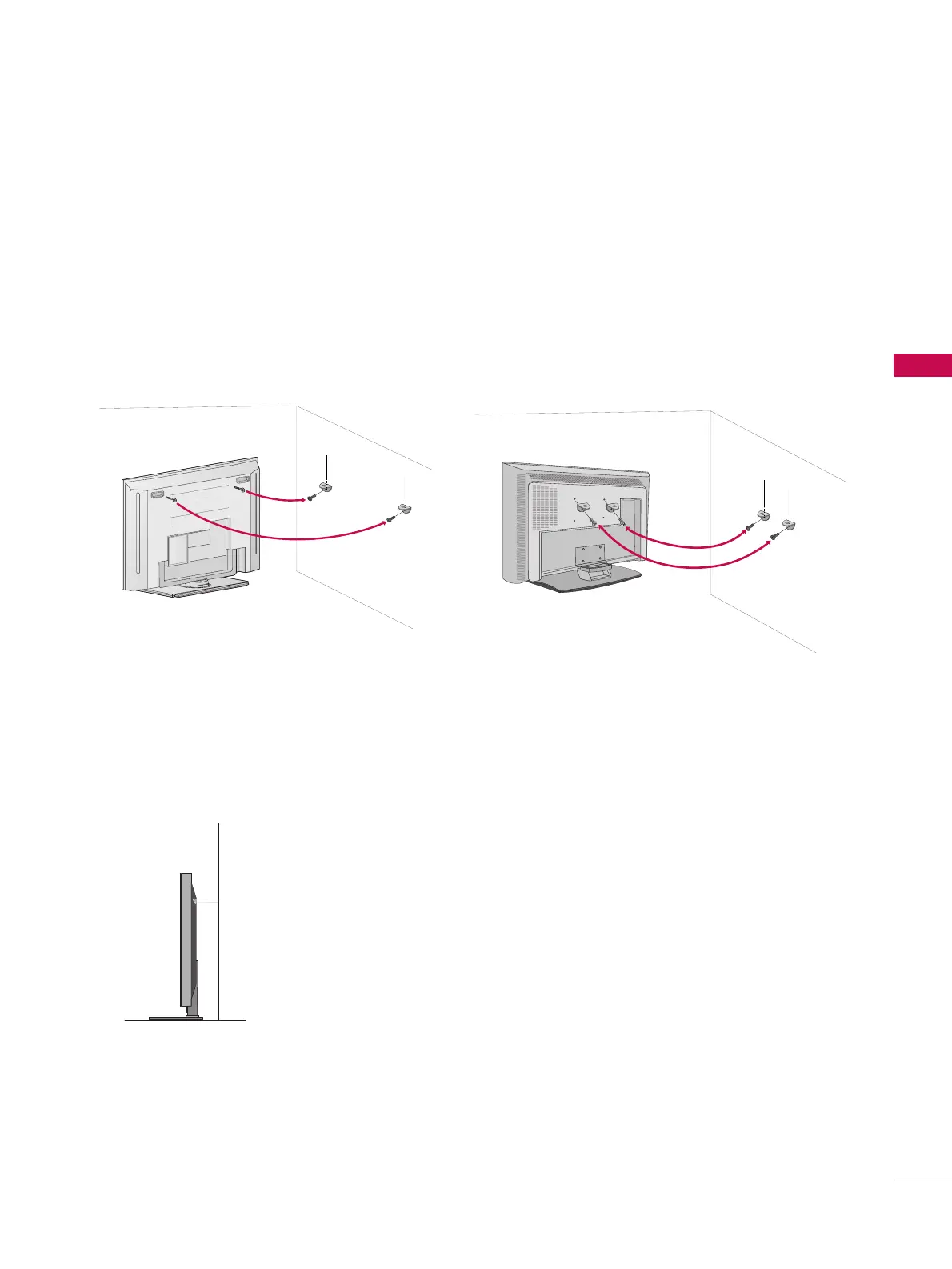

Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.
* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.
Insert the eye-bolts and tighten them securely in the upper holes.
Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately ) on
the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.
Ensure the eye-bolts or brackets are tightened securely.
■
Use a sturdy rope (must be purchased separately) to secure the TV. It is
safer to tie the rope so it runs horizontally between the wall and the TV.
42LC2DR/42LB2DE/47LB2DE50PB2DR
