When connecting Component cables
ANTENNA
OUT
ANTENNA
IN
AV IN 1
ANTENNA
OUT
ANTENNA
IN
Y L RPB PR
O
S-VIDEO
ANTENNA
OUT
ANTENNA
IN
VIDEOVIDEO AUDIOAUDIO
COMPONENT INCOMPONENT IN
AUDIO
( )
S-VIDEO
HDMI IN
DVD SETUP
Component Input ports

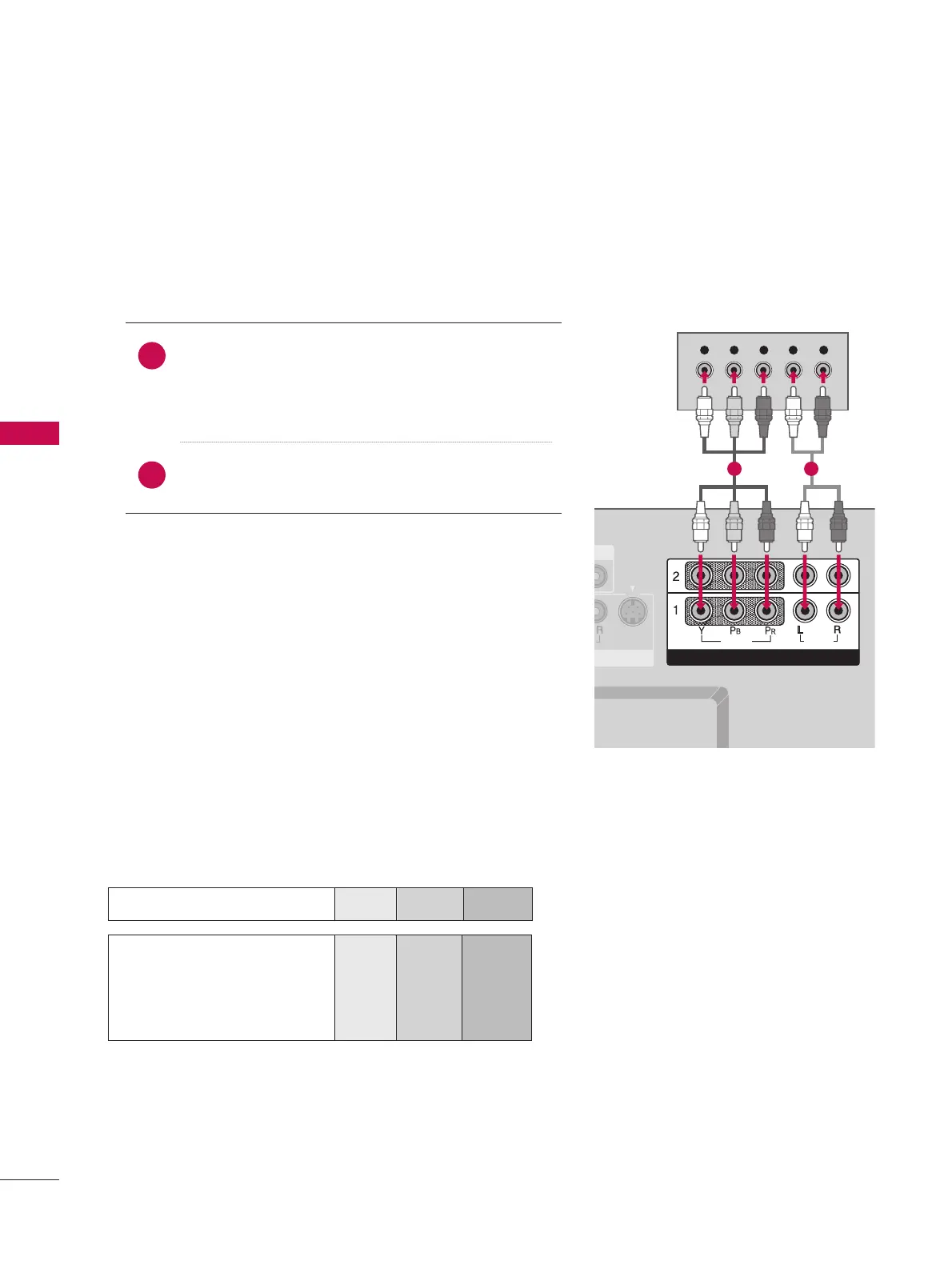

To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
Pb
Pr
R-Y
Cr
Pr
Connect the video outputs (Y, P
B, PR) of the DVD to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO11
jacks on the set.
Match the jack colors (Y = green, P
B = blue, and PR = red).
Connect the audio outputs of the DVD to the
CCOOMMPPOO--
NNEENNTT IINN AAUUDDIIOO11
jacks on the set.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select
CCoommppoonneenntt 11
input source using the
IINNPPUUTT
but-
ton on the remote control.
■
If connected to
CCOOMMPPOONNEENNTT IINN 22
input, select
CCoommppoonneenntt 22
input source.
■
Refer to the DVD player's manual for operating instruc-
tions.
2
1
1 2
