ENGLISH
20
MAKING CONNECTIONS

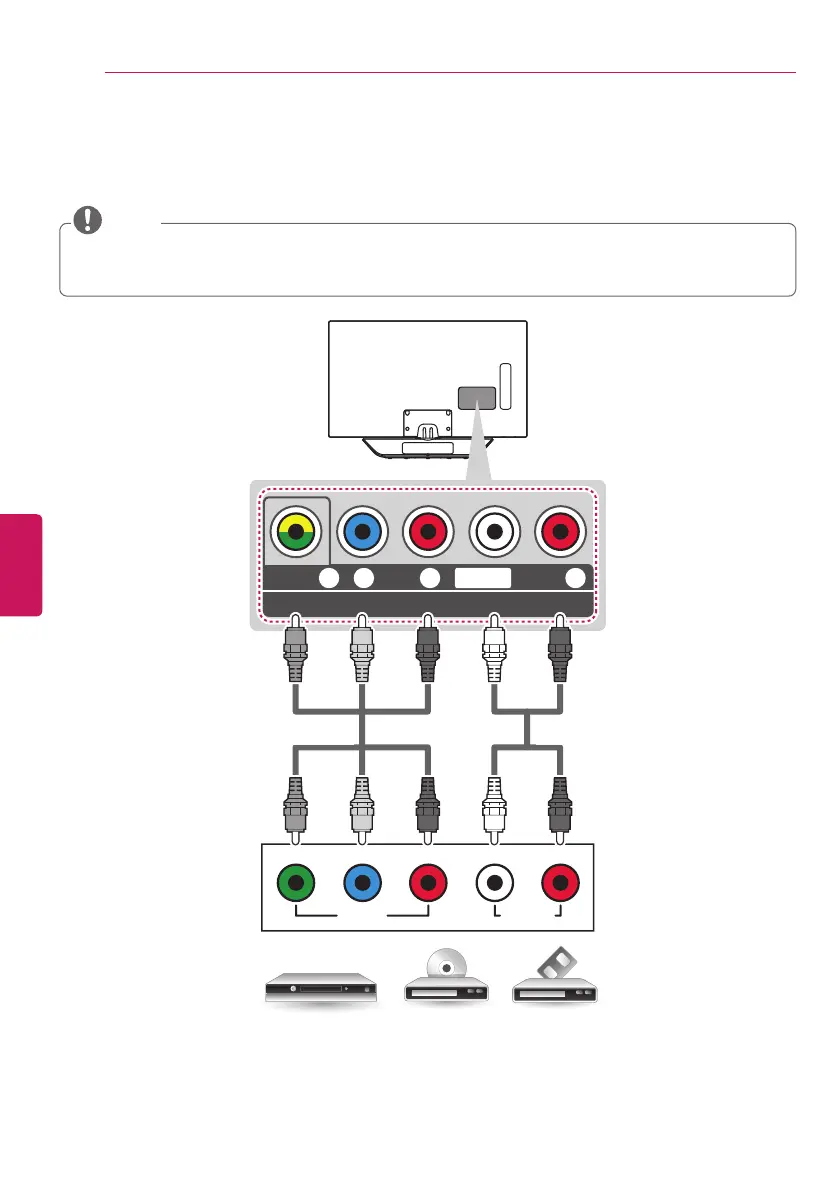

Component connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.
If cables are installed incorrectly, it could cause the image to display in black and white or with
distorted color.
Check to ensure the cables are matched with the corresponding color connection.
NOTE
COMPONENT IN / AV IN 1
VIDEO/
P
B
P
R
Y R
AUDIO
L/MONO
PB PRY RL
VIDEO AUDIO
(*Not provided)
GREEN GREEN
BLUE BLUE
RED RED
RED RED
WHITE WHITE
(*Not provided)
VCR / DVD / Blu-Ray / HD Cable Box
To Next Page
