PREPARATION
STAND INSTRUCTIONS
(For Plasma TV)
ꔛ
Image shown may differ from your TV.
INSTALLATION
NOTE
► When assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.

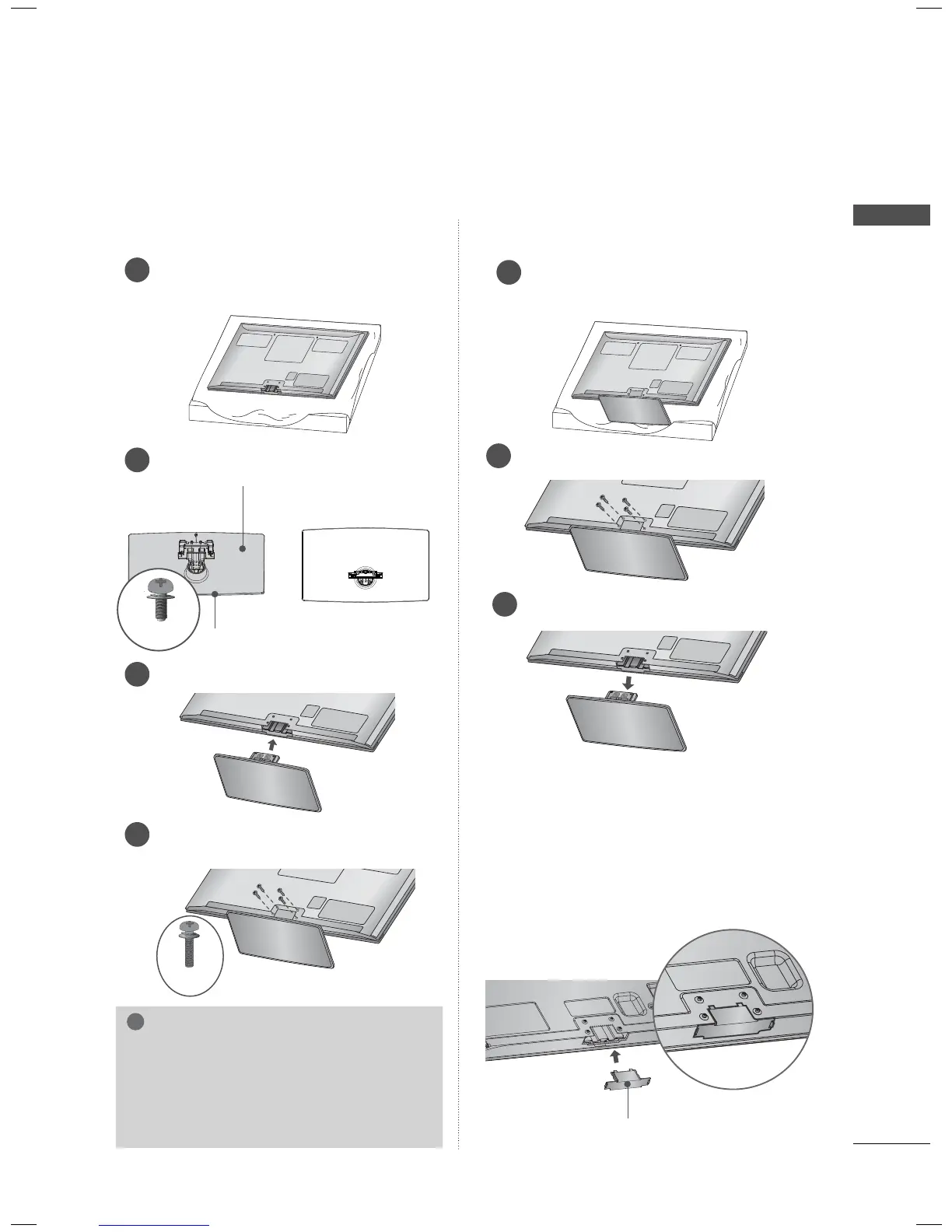

1
Carefully place the TV screen side down
on a cushioned surface to protect the
screen from damage.
2
Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
3
Assemble the TV as shown.
4
Fix the 4 screws securely using the holes
in the back of the TV.
STAND BASE
STAND BODY
M5 x 14
M4 x 28
DETACHMENT
PROTECTION COVER
After removing the stand, install the included
PROTECTION COVER over the hole for the
stand.
Press the PROTECTION COVER into the TV
until you hear it click.
When installing the wall mounting bracket, use
the PROTECTION COVER.
1
Carefully place the TV screen side down
on a cushioned surface to protect the
screen from damage.
2
Remove the screws that hold the stand on.
3
Detach the stand from TV.
PROTECTION COVER
Fix a guide to the outside.
