LG 42PJ350R Service Manual

- 10 -
LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes
5. EDID(The Extended Display
Identification Data)
Caution
- Never Use the cable( HDMI or D-sub cable) for EDID
Writing.
- Automatically PP01A/B/C Model EDID download process
is executed when you adjust Tool Option.

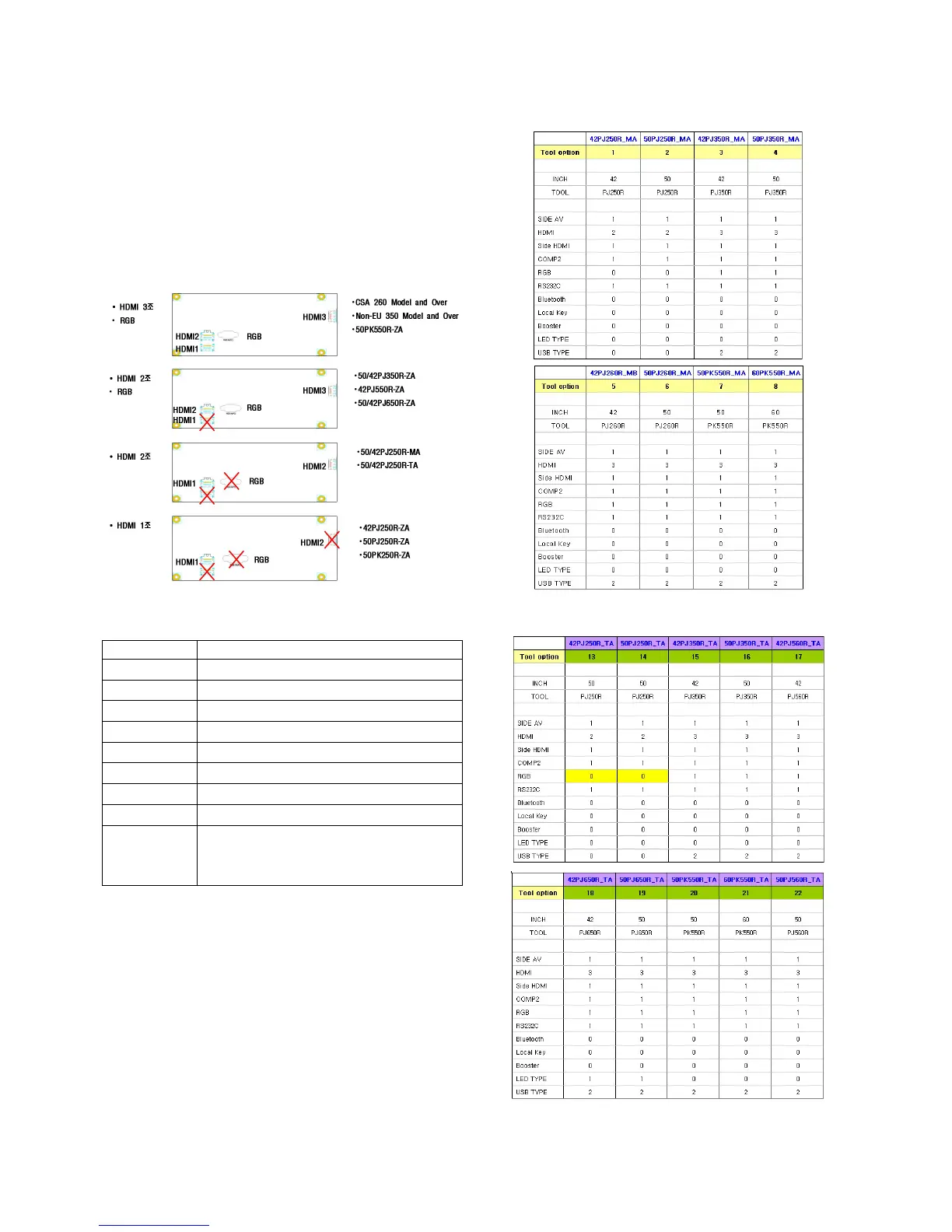

< Jack Layout>
<Tool Option Item>
<CSA AREA>
<NON-EU AREA>
Inch
Tool
SIDE AV 0/1
HDMI 0/1/2/3
Side HDMI 0/1
COMP2 0/1
RGB 0/1
RS232C 0/1
Local Key 0 (7KEY) / 1 (8KEY)
LED TYPE 0 (RED) / 1 (RED/White) / 2 (Reserve)
USB TYPE 0 (NONE) / 1 (PHOTO, MUSIC)
/ 2 (PHOTO, MUSIC, DivX)
