Connecting 15
Connecting
2
Connecting to speakers
Before connecting (CM8530
only)
You have to position the unit and the speakers
before connecting the speakers. Note that the
illustrations below are dier from the actual unit.
The following illustrations show an example of the
positioning which is the left side of the main unit.

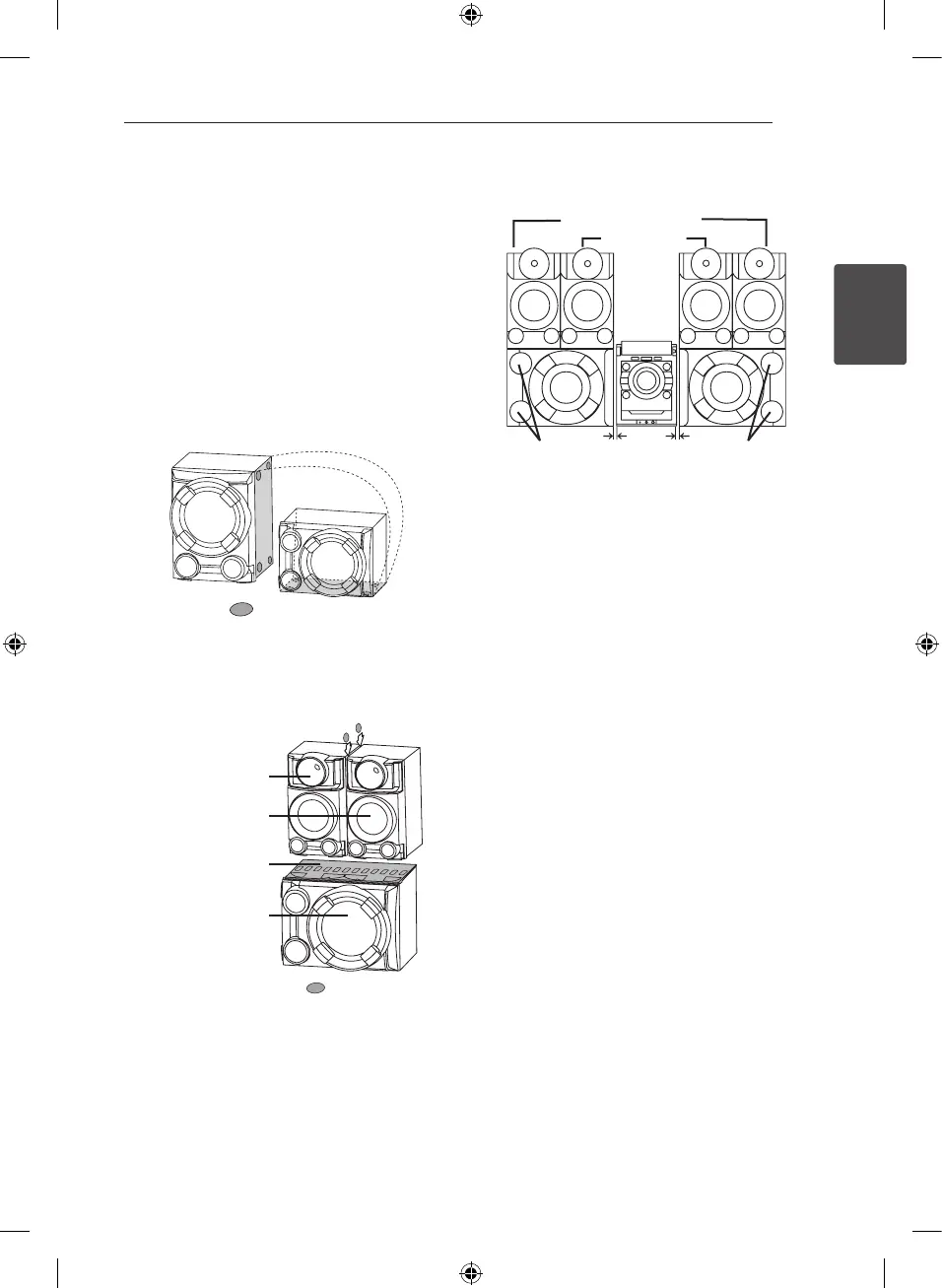

Positioning the speakers
: Non-skid pad
1. Attach the non-skid pads to the right side of
subwoofer.
2. Lay the subwoofer down as the illustration
above.
: Non-skid pad
Surround
speaker
Stacking
board
Subwoofer
3. Put the stacking board on the subwoofer.
4. Place the front and the surround speakers on
the stacking board firmly.
5. Attach the non-skid pads between the front and
the surround speakers for preventing scratchs.
Positioning the main unit and the
speakers
Speaker ductSpeaker duct
20 cm 20 cm
y
The speaker ducts of subwoofer have to be faced
opposite the main unit. Otherwise it may result
in a malfunction of the main unit.
y
The subwoofer have to be placed at a distance
of about 20 cm from the main unit.
Front
speaker
Surround speaker
Front speaker
CM8530-FU_DKENHL_ENG.indd 15 2013-03-07 �� 12:11:55
